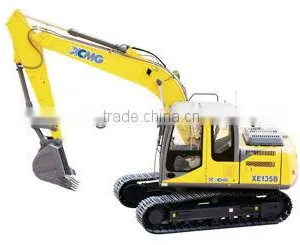

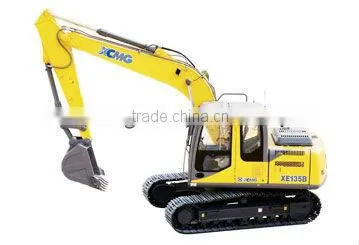

XCMG Crawler Excavator XE135B

Name: XCMG Crawler Excavator XE135B
Brand: XCMG
SKU: 112296927

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE135B

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE135B

Condition New

Moving Type Crawler Excavator

Operating Weight 13800kg

Bucket capacity 0.4-0.52m3

Maximum Digging Height 8641mm

Maximum Digging Depth 5538mm

Machine Weight 13800kg

Specifications

XCMG Crawler Excavator XE135B
1.The eingine is ISUZU BB-4BG1TRP
2. The good quality and best price

XCMG Crawler Excavator XE135B

Parameter:

MODEL			XE135B
Operating weight		kg	13800
Standard bucket capacity		m³	0.4-0.52
engine	Engine Model	/	ISUZU BB-4BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	69.6/2200
	Max. torque/speed	N.m	337.6
	Displacement	L	4.329
	Travel speed	km/h	5.16/3.03
	Swing speed	r/min	12.3
	Max. gradeability	/	≥35
	Ground pressure	kPa	42
	Max.Bucket digging force	kN	85
	Max.arm crowd force	kN	65
	Max.traction force	kN	134
hydrulic system	Main pump	/	2 pump
	Rate flow of main pump	L/min	2×123
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	25
	Max pressure of pilot system	MPa	3.9
tank capacity	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine lubrication	L	14
size	Overall length	mm	7770
	Overall width	mm	2512
	Overall height	mm	2880
	Overall width of upperstructure	mm	2512
	Track length	mm	3660
	Overall width of undercarriage	mm	2490
	Crawer width	mm	500
	Track length on ground	mm	2910
	Crawer gauge	mm	1990
	Clearance under counter weight	mm	964
	Ground clearance	mm	478
	Min.tail swing radius	mm	2294
working range	Max. digging height	mm	8641
	Max. dumping height	mm	6181
	Max. digging depth	mm	5538
	8inch horizonal digging depth	mm	5287
	Max. vertical wall digging depth	mm	4727
	Max. digging reach	mm	8296
	Min. swing radius	mm	2335
	Angle of arm deflection	Degree	——
