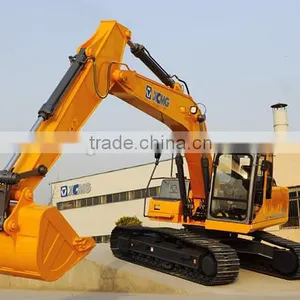

XE235CA Xcmg Excavator Spare Parts

Name: XE235CA Xcmg Excavator Spare Parts
Brand: xcmg
SKU: 112296965

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

xcmg

Model Number:

XE235CA

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name xcmg

Model Number XE235CA

Condition New

Moving Type Crawler Excavator

Operating Weight 23,520kg

Bucket capacity 1.0m3

Maximum Digging Height 9,670mm

Maximum Digging Depth 6,920mm

Max Digging Radius 10,270mm

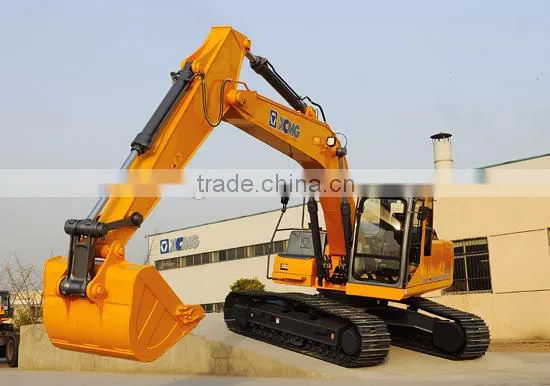

XE235CA xcmg excavator spare parts

Model		Unit	XE235CA
Operating weight		kg	23500
Standard bucket capacity		m³	0.9~1.1
Engine	Engine Model	/	CC-6BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	128.5/2100
	Max. torque/speed	N.m	637/1800
	Displacement	L	6.494
The main performance	Travel speed	km/h	5.5/3.5
	Swing speed	r/min	12.1
	Max. gradeability	/	≤35
	Ground pressure	kPa	51.7
	Max.Bucket digging force	kN	163
	Max.arm crowd force	kN	116
	Max.traction force	kN	194.8
Hydraulic system	Main pump	/	2 Plunger pump
	Rate flow of main pump	L/min	2×231
	Max pressure of prime relief valve	MPa	31.5/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	23
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	240
	Engine lubrication	L	25
Overall dimensions	A Overall length	mm	10160
	B Overall width	mm	2990
	C Overall height	mm	3100
	D Overall width of upperstructure	mm	2830
	E Track length	mm	4270
	F Overall width of undercarriage	mm	2990
	G Crawer width	mm	600
	H Track length on ground	mm	3462
	I Crawer gauge	mm	2390
	J Clearance under counter weight	mm	1050
	K Ground clearance	mm	470
	L Min.tail swing radius	mm	2985
Working range	A Max. digging height	mm	9595
	B Max. dumping height	mm	6725
	C Max. digging depth	mm	6960
	D 8inch horizonal digging depth	mm	6750
	E Max. vertical wall digging depth	mm	6090
	F Max. digging reach	mm	10240
	G Min. swing radius	mm	3850
	Angle of arm deflection	Degree
