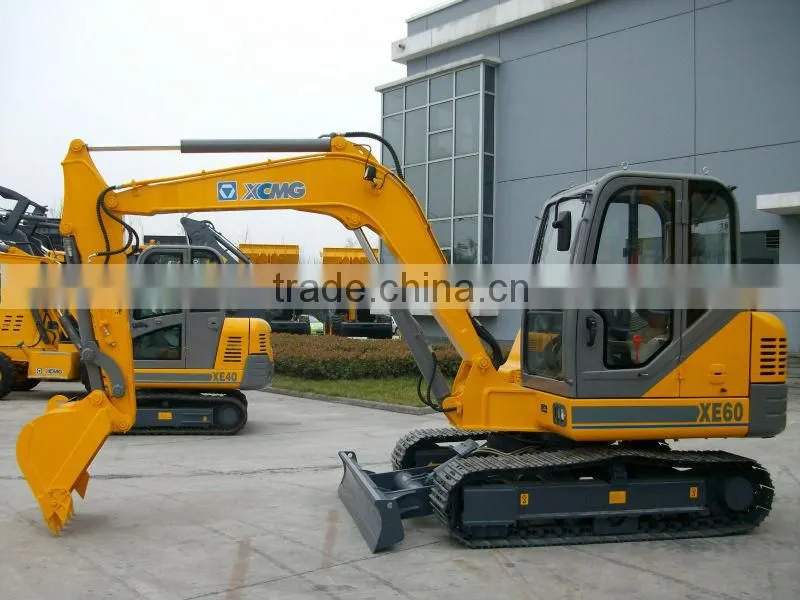

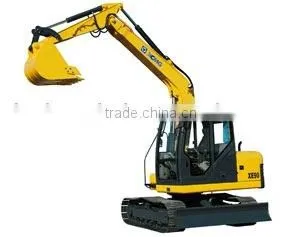

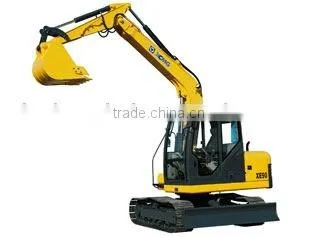

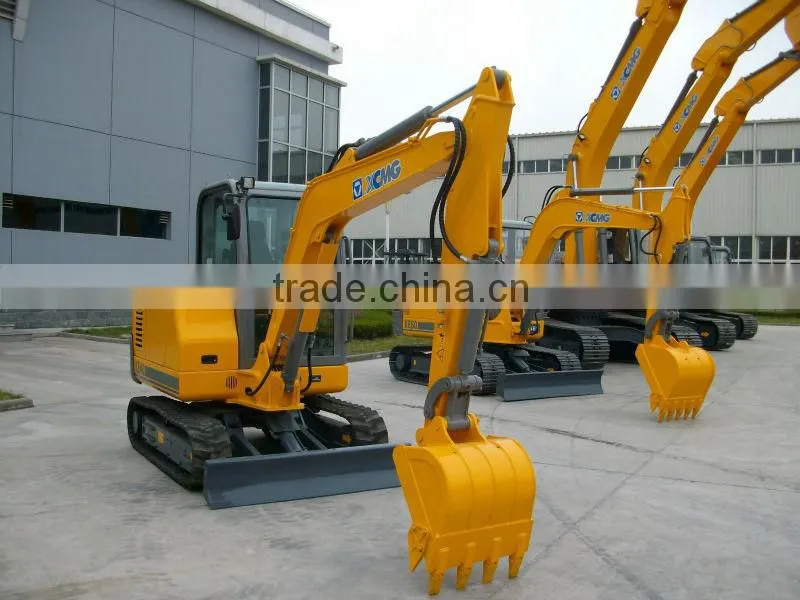

XCMG HYDRAULIC EXCAVATOR XE40/ Liugong HYDRAULIC EXCAVATOR
Powerful and Fuel Economy Drive System
The environment-friendly and energy-saving engine: the originally imported engine features strong power, stable performance, fuel economy and high efficiency, low noise, low vibration, and low emission, as well as low temperature start.
The imported compound radiator of famous brand: reasonable structure, convenient to clean, and low temperature start.
Both the inlet system and fuel system adopt 3-stage filter, which ensures the cleanness of air and fuel, and more suitable to tough work conditions.
Reliable Hydraulic System
It adopts variable control system, which is the most advanced configuration at current market. It can change the system pressure and make reasonable flow distribution according to load condition, which contributes to the strong digging capacity all the time and the optimization of the system, and thus maximized the engine efficiency.
Reliable Hydraulic System
The whole set of originally imported hydraulic components, including main pump, main valve, slewing motor, travel motor, and etc. make the hydraulic system more reliable and operable.
Reliable Hydraulic System
The high quality high pressure hose and joint of Germany brand provides extra-long service life. The joint adopts zinc-nickel plating technology, which is more anti-caustic and anti-vibratory.
The hose can endure high pressure; it is wear resistant, soft, and has long service life.
Safe Cab and Comfortable Operation Environment
The ergonomics cab features clean profile, wide view, and delicate inside upholstering.
The large capacity air conditioner with reasonable layout of wind outlet, which makes it more comfortable to work.
Safe Cab and Comfortable Operation Environment
The full-closed ROPS/FOPS cab meets the requirements of roll-over protection and falling objects protection, which is safe and reliable.
The cab features safety lock function, the control handle function is locked before the left-hand safety bar is engaged.
Safe Cab and Comfortable Operation Environment
The LCD display with self-inspection function: through the combined instruments and gauges with high brightness LCD display and sound-light alarm system, it is easy for the operator to learn information on various kinds of working conditions in time.
Safe Cab and Comfortable Operation Environment
The front windshield has gas support device, so it is easy to open and maintain accurate support.
The luxury high backrest suspension Grammer seat is adjustable and comfortable; it can greatly reduce operator fatigue and improve work efficiency.
1 |
Length(with bucket on ground) |
11576mm |
2 |
Width(600mm crawler shoes ) |
3350 mm |
3 |
Bucket width |
1598 mm |
4 |
Height(To the top of the cab) |
3162 mm |
5 |
Overall height |
3800mm |
6 |
Counter weight ground clearance |
1270 mm |
7 |
Track gauge |
2750 mm |
8 |
Tail swing radius |
3600 mm |
9 |
Min. ground clearance |
526 mm |
10 |
Rotating platform width |
3210 mm |
11 |
Counter weight height |
2370 mm |
12 |
Crawler ground length |
4250 mm |
