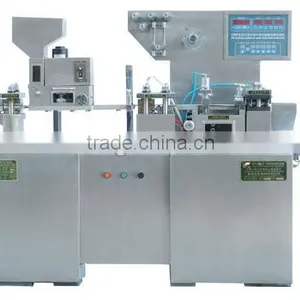

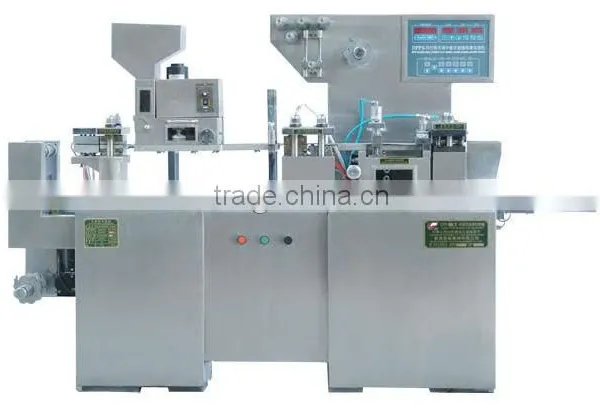

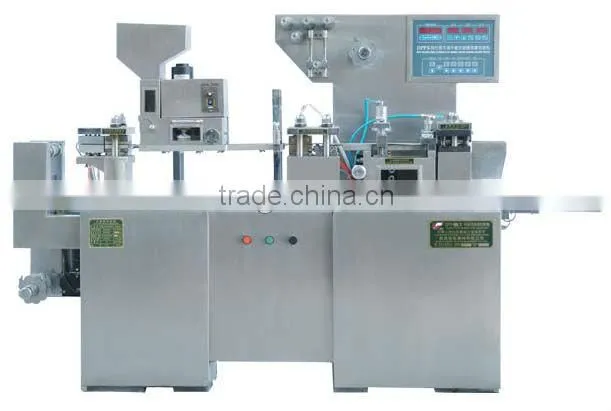

Help CenterDPP98 Al/PL Blister Packing Machine
Related Products
-
DPB-140E Flat Plate Auto Blister Packing MachineUS$ 1 - 11,300MOQ: 1 Set -
DPP140D Blister Packing MachineUS$ 1 - 11,300MOQ: 1 Set
-
DPP140 Plate Type Total Travel Adjustable Blister Packing MachineUS$ 1 - 11,300MOQ: 1 Set
-
DLL158 High Speed Auto AL/AL Packing MachineUS$ 1 - 11,300MOQ: 1 Set
-
DPB-140B Flat Plate Auto Blister Packing MachineUS$ 1 - 11,300MOQ: 1 Set
Specifications
This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.Performance and Characteristics:

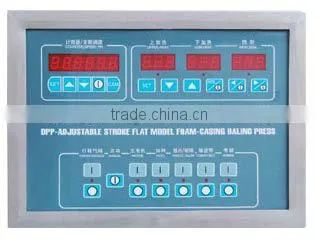

Variable Frequency Speed Regulating, PC Circuit Control Panel.
Adjustable travel adopts manipulator grip equipped with inching device, which has accurate synchronization.
Travel-type feeder is suitable for feeding capsules and tablets .
Mould spout location is convenient for replacing mould.
Exquisite machine is suitable for small-scale production and laboratory.
Main Technical Specifications:
Punching Frequency: 20-40times/min
Punching Plate: 1-2plates/time
Adjustable Scope of Travel: 30-90mm
Packing Efficiency:1200-4800plates/hour
Max Forming Area and Depth: 90x80x16mm
Specifications of Packing Material:
Medical PVC: 100x0.25 (0.15-0.5)mm
PTP: 100x0.02mm
Air-compressor:≥0.1M3/Min(Self-prepared)
Pressure: 0.5MPa
Overall Size: 2200x750x1650mm
Weight: 550kg
