Vehicle Engine direct drive truck refrigerated unit
TKT-200C is specialized for small refrigerated truck body to keep fresh, powered by the engine of the vehicle, and it has great advantages in fuel saving, environmental and highly efficient.
1. Special Design for Refrigerated Truck Body Up to 10CBM(-5℃) & 12CBM(0℃) to Keep Fresh;
2. Stream Line Design to Apply All Kinds of Truck Body;
3.Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
4.Easy Installation & Operation;
5.Environment Friendly;
6.36 Months Warranty Time After Delivery.
Technological data of direct drive truck refrigerated unit :
TECHNICAL DATA | |||
NO. |
Items |
Data |
|
1 |
Product Name |
Truck Refrigeration Unit--TKT-200C |
|
2 |
Type |
Vehicle Engine Driven |
|
3 |
Structure |
Truck Body, Front Mounted Installation |
|
4 |

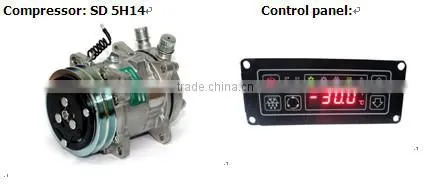

Compressor |
SD5H14 |
|
5 |
Controller |
Digital, In Cab |
|
6 |
Condenser |
Coil |
Copper Tube & Aluminum Fin |
Fan |
One Motor & One Fan (DC12V/24V) |
||
Dimension |
765*350*235 mm |
||
Weight |
32KG |
||
7 |
Evaporator |
Coil |
Copper Tube & Aluminum Fin |
Fan |
One Motor & One Fan (DC12V/24V) |
||
Air Flow |
1300 m3/h |
||
Dimension |
510*600*138 mm |
||
Weight |
17KG |
||
8 |
Defrost |
None |
|
9 |
Refrigerant |
R134A, 1.1-1.2KG |
|
10 |
Installation Kits |
Rubber Hoses, Drain Water Hoses, Wiring Harness etc |
|
11 |
Cooling Capacity (Ambient 38Deg/100.4F) |
-5Deg---1235 W( 4212 BTU / 1062 Kcal ), Apply Up to 10CBM, Fresh |
|
0Deg ---1430W(4880 BTU / 1230Kcal ), Apply Up to 12CBM, Fresh | |||
12 |
Total Weight |
63KG |
|
Pictures of direct drive truck refrigerated unit :
Packaging in wooden crates/carton/iron racks.
The dimension of Condenser is 815X285X430MM ,the dimension of Evaporator is 650X600X210MM.
Shipping by sea.
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature
rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC
company since 1998. We are the most influential manufacturer of bus and refrigerated truck in
China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia,
North America, South America and Africa, earning high reputation and sustainable growth in all
markets.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in
China, has devoted to producing reliable, efficient and economical bus air conditioner and
truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North
America, South America and Africa, earning high reputation and sustainable growth in all
markets.
