Keep fresh battery driven refrigeration unit truck
Introduction to refrigeration unit truck :
TKT-200E is specialized for small cargo van to keep fresh. It is powered by the battery of the vehicle, and has great advantages in environmental and highly efficient.
1 Designed for Cargo Van Up to 12 CBM(0 °C) & 8CBM(-5°C) to Keep Fresh;
2 Easy Installation & Operation;
3 Low Current, Long Time Running & High-Low Voltage Protection;
4 Environment Friendly;
5 36 Months Warranty Time After Installation;
Technological data of refrigeration unit truck :
TECHNICAL DATA | |||
NO. |
Items |
Data |
|
1 |
Product Name |
Van Refrigeration -- TKT-200E |
|
2 |
Type |
Battery Driven Compressor Complete Electrical Refrigeration System |
|
3 |
Structure |
Roof Top Model / Cargo Van/Truck Body, Roof Top Installation |
|
4 |
Compressor |
Electrical Compressor, 36CC/R |
|
5 |
Controller |
Digital, In Cab |
|
6 |
Condenser |
Coil |
Copper Tube & Aluminum Fin |
Fan |
One Motor & One Fan (DC12V/24V) |
||
Dimension |
865*700*185MM |
||
|
Battery Driven Compressor Inside |
||
Weight |
45KG |
||
7 |
Evaporator |
Coil |
Copper Tube & Aluminum Fin |
Fan |
One Motor & One Fan (DC12V/24V) |
||
Air Flow |
995 m3/h |
||
Dimension |
600*510*138 mm |
||
Weight |
17KG |
||
8 |
Defrost |
Automatic Hot Gas Defrost |
|
9 |
Refrigerant |
R134A, 1.1-1.2KG |
|
10 |
Current |
12V DC--60A / 24V DC--30A |
|
11 |
Installation Kits |
Rubber Hoses, Drain Water Hoses, Wiring Harness Etc |
|
12 |
Cooling Capacity (Ambient 38Deg/100.4F) |
-5Deg--1235 W(4212 BTU/ 1062 Kcal ), Apply Up to 8 m3, Frozen & Fresh |
|
0Deg---1430 W(4880BTU / 1230 Kcal ), Apply Up to 12 m3,Fresh | |||
14 |
Total Weight |
75KG |
|
15 |
Recommend 4*100A.H Battery, Van Body Insulation Thickness 75mm-100mm |
||
Optional: 110V/220V/380V Stand By Units is Acceptable; | |||

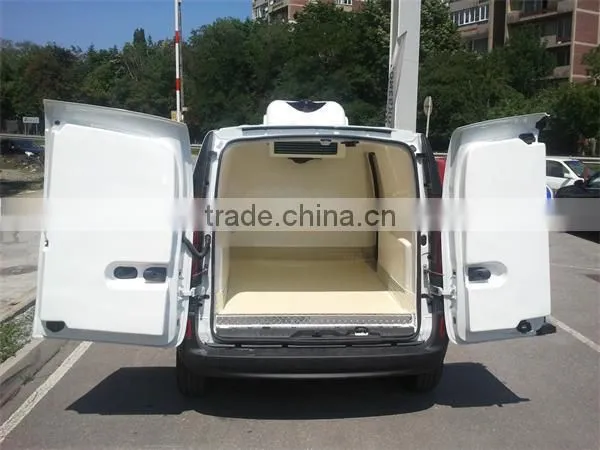

Photos of refrigeration unit truck :
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC company since 1998. We are the most influential manufacturer of bus and refrigerated truck in China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in China, has devoted to producing reliable, efficient and economical bus air conditioner and truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
