Home > Consumer Electronics > Water Heater & Components > Heat Pump Water Heater > Commercial Heat Pump Heating Cooling

Commercial Heat Pump Heating Cooling

Name: Commercial Heat Pump Heating Cooling
Brand: Blueway
SKU: 112962087

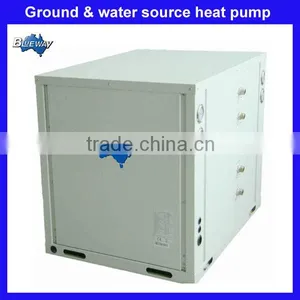

Commercial Heat Pump Heating Cooling thumbnail-1

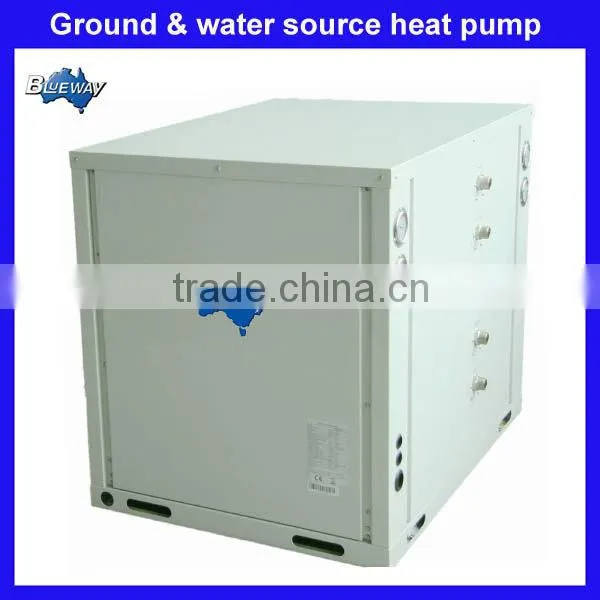

Commercial Heat Pump Heating Cooling photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Water Source Heat Pump

Installation:

Freestanding

Storage / Tankless:

Storage

Contact Supplier Request Quote Chat Now

Foshan Blueway Electric Appliances Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Water Source Heat Pump

Installation Freestanding

Storage / Tankless Storage

Housing Material Stainless Steel

Use Bathroom

Certification CB, CE

Place of Origin Guangdong, China

Brand Name Blueway

Model Number DWW-010HA

Commercial heat pump heating cooling

Geothermal/Ground Source Heat Pump /water to water heat pump

Blueway 2013 new ground source heat pump allows you to combine a water based heating system with a modern heat producing device. It saves energy consumption up to 75% compared with electric heaters.

The ultra quiet design makes the whole compressor and heat pump system on a floating plate, leads to a compete isolation from the heat pump bottom, and reduce vibration and noise at the most extent. That is to say, Blueway new brine to water heat pump is ideal for indoor installation.

Products Features

1) Base frame and external panels made of galvanized powder coated steel

2) Compact structure and good demount ability

3) Reliable compressor with environment friendly refrigerant

4) Intelligent controller with possibility of remote control available

5) Wide rang of capacity selection, from 6KW to 50KW.

6) Stable water flow switch available

7) Multi-functional products protection. High pressure and low pressure, overheating, overload, anti-freezing,

8) The units can work stable all year around.

Certificate:
CE, CB, RoHS, conform to EN14511-2:2011 standard,ISO9001, ISO14001.

Support:
Blueway is capable of manufacturing and supplying even the largest liquid heating
and cooling requirement for applications. We are looking forward to find potential
partner all over the world to cooperate together. We are insisting on the strategy
of:" Client service firstly and continuous development", we will offer better product
with best service to all the customers. For clients' special design requirement,
if the annual order quantity is above: 300pcs. We can offer one special design
for you exclusively.

Specification-Geothermal-Water Source Heat Pump

TECHNICAL DATA		Model	DWW-06HA	DWW-08HA	DWW-10HA	DWW-13HA	DWW-16HA/3	DWW-20HA/3	DWW-30HA/3
Heating	Nominal capacity	kW	7.2	9.55	10.74	14.3	17.5	23.4	33.2
	Power input	kW	1.42	1.9	2.16	2.75	3.38	4.46	6.38
	COP	W/W	5.08	5.03	4.97	5.2	5.18	5.25	5.2
Cooling	Nominal capacity	kW	6.5	7.55	8.45	12.7	16.7	20	30.4
	Power input	kW	1.58	1.88	2.16	2.98	3.98	4.65	7.1
	EER	W/W	4.12	4.01	3.91	4.26	4.20	4.3	4.28
DHW	Nominal capacity	kW	6.35	8.32	9.5	12.5	15.4	20.6	37.6
	Power input	kW	1.69	2.26	2.56	3.25	4.05	5.28	11.12
	COP	W/W	3.76	3.68	3.71	3.85	3.8	3.9	4.25
Power supply		V/Ph/Hz	220-240/1/50				380-415/3/50
Max. water-outlet temperature		°C	60
Refrigerant type			Rotary			Scroll
Heat exchangers			Coaxial Heat Exchanger			Plate Heat Exchanger
Dimensions (Net)		mm	982x606x634			982x606x634		982x910x634
Dimensions (Packing)		mm	1110x715x715			1110x715x715		1110x1020x715
Net weight		kg	130	138	140	135	138	150	170
Gross weight		kg	135	143	145	140	143	160	180
Noise level		dB(A)	47			48		53	56
Container loading	20' GP (units)		48
	40' GP (units)		96
	40' HP (units)		96
NOTES: Capacities and power inputs based on the following conditions: - Cooling: Water source inlet/outlet temperature 30°C/35°C; User side inlet/outlet temperature 12°C/7°C. - Heating: Water source inlet temperature 10°C; User side inlet/outlet temperature 30°C/35°C. - Domestic Hot Water: Water source inlet temperature 10°C; Water temperature in the tank 40°C (Tank not included). - The flow rate obtained during the test at standard rating conditions in cooling mode is used
