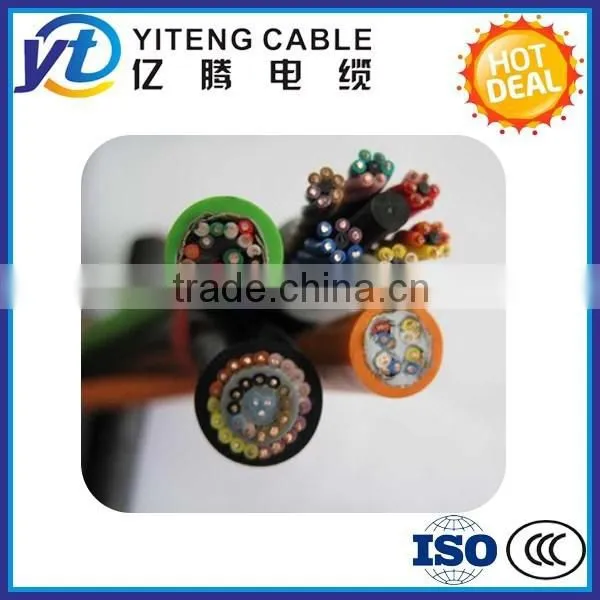

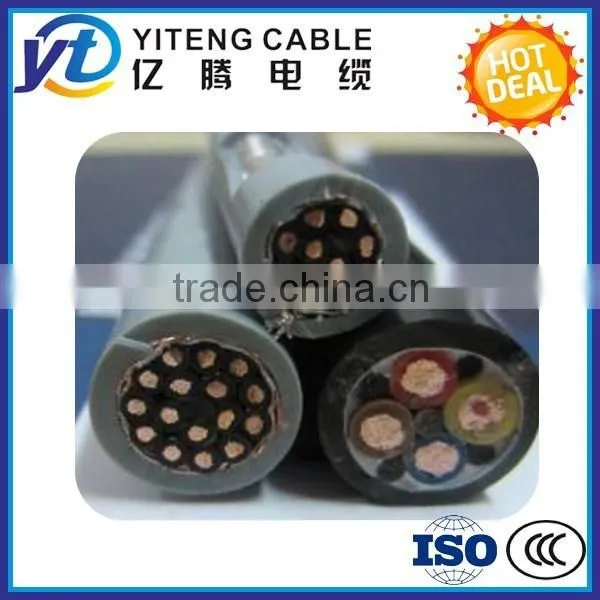

Cu Tape Screened/PVC Sheathed/Swa/Computer/Instrument Cable
Standard Implemented:
The product conforms to Q/321084 KLA049-2004, Q/321084 KLA 052-2004,euual to the Bristish BS5306-86.
Application: It applies to the computer, automatic and other correponding systems of power generation, smelting and petrochemistry.
Service Characteristics:
Rated voltage Uo/U:450/750V
Operating temperature Max: For common types: ≤70ºC For XLPE: ≤90ºC For resistance to heating less than '105ºC': ≤105ºC Bend radius Min: For cable without armor: ≥6 times outer diam. For cable with armor: ≥12 times outer diam.
Type and Data
No. |
Types |
Description |
Place of use |
1 |
DJYPV22 |
PE insulated, pair-twisted Cu wire woven, divided screen, PVC sheathed and steel tape armored computer control cable |
Can be laid in indoor, tunnels and places being able to bear large outer mechanical force. |
2 |
DJYPVP22 |
PE insulated, pair-twisted Cu wire woven, divided and total screen, PVC sheathed and steel tape armored computer control cable |
|
3 |
DJYVP22 |
PE insulated, pair-twisted Cu wire woven, total screen, PVC sheathed and steel tape armored computer control cable |
|
4 |
DJYP2V22 |
PE insulated, pair-twisted Cu tape divided screen, PVC sheathed and steel tape armored computer control cable |
|
5 |
DJYP2VP2-22 |
PE insulated, pair-twisted Cu tape divided and total screen, PVC sheathed and steel tape armored computer control cable |
|
6 |
DJYVP2-22 |
PE insulated, pair-twisted Cu tape total screen, PVC sheathed and steel tape armored computer control cable |
|
7 |
DJYP3V22 |
PE insulated, pair-twisted Al/plastics combined tape, divided screen, PVC sheathed and steel tape armored computer control cable |
|
8 |
DJYP3VP3-22 |
PE insulated, pair-twisted Al/plastics combined tape, divided and total screen, PVC sheathed and steel tape armored computer control cable |
|
9 |
DJYVP3-22 |
PE insulated, pair-twisted Al/plastics combined tape, total screen, PVC sheathed and steel tape armored computer control cable |
Specification List
Specification |
Line core logarithmic |
Nominal cross section |
|
DJYPV DJYVP DJYPVP DJYP2V DJYVP2 DJYP2VP2
|
1-40 |
0.5 0.75 1.0 1.5 2.5 |
|
DJYPV22 DJYVP22 DJYPVP22 DJYP2V22 DJYVP2-22 DJYP2VP2-22 DJYP3V22 DJYVP3-22 DJYP3VP3-22 |
2-40 |
Yiteng Cable Technology Hebei Co., Ltd.
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
Our Services
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,
installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,
If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from
our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Notice:we can produce the product according to customer's requirment.Short delivery time and quotation at once.
