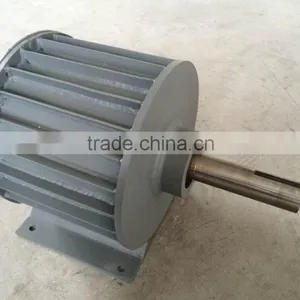

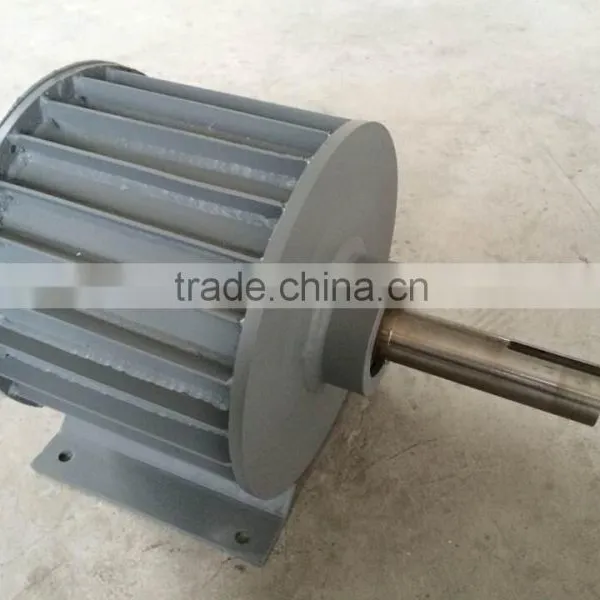

ac 3kw permanent magnet alternator :

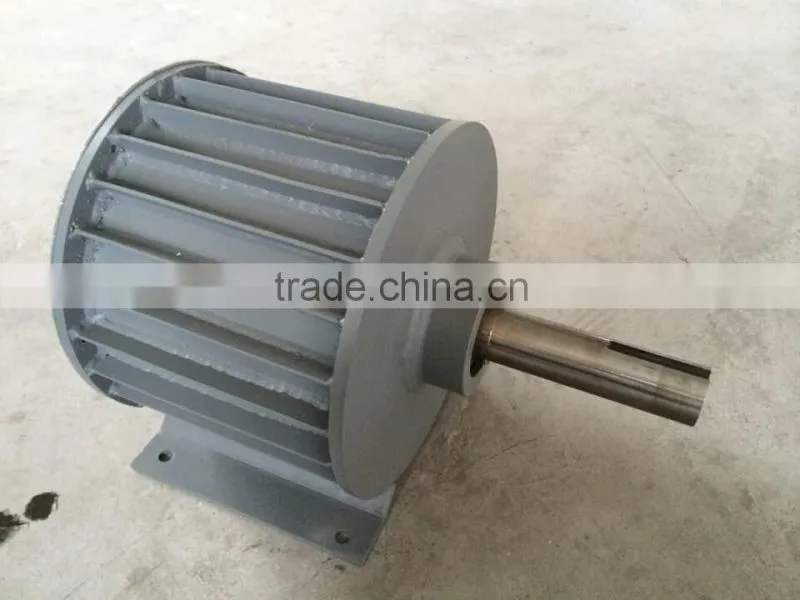

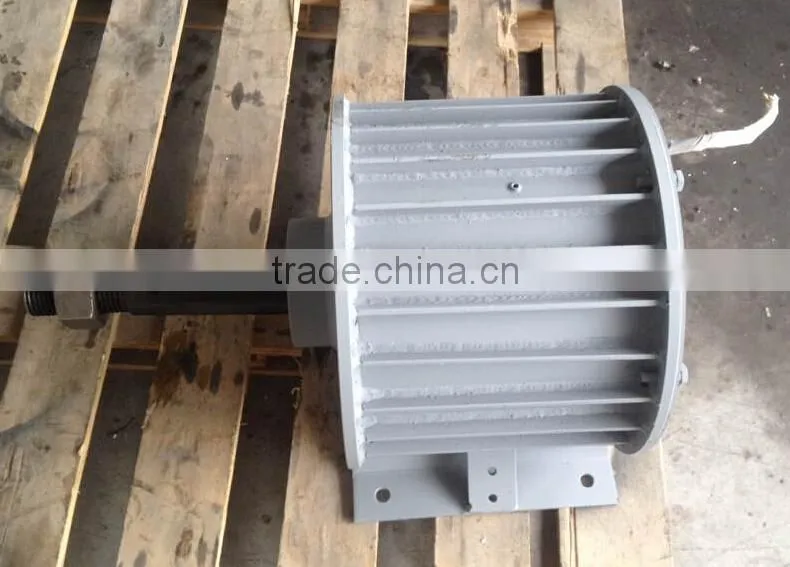

real picture:
features:
1.Gearless, direct drive, low RPM generator
2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.
3.Excellent heat dissipation due to the carbon steel outer frame and special internal structure.
4.permanent magnet generator rotor using patented alternator, together with the special stator design
tech data:
Model |
NE-3kw |
Rated Power(w) |
3000w |
Max Power(w) |
4800w |
Rated Voltage(v) |
96V/120V |
Rated rotated speed(r/m) |
300r/m |
Top net weight(kg) |
70kg |
Output Current |
AC |
generator |
3 phase permanent magnet synchronous generator |
Insulation Class: |
F |
Service Life: |
More Than 20 years |
Bearing |
HRB or for your order |
Shaft Material |
Iron |
Shell Material |
Carbon Steel |
Permanent Magnet Material |
Rare Earth NdFeB |
Protection Grade |
IP54 |
Lubrication |
Lubrication Grease |
Working temperature |
-40℃ - 80 ℃ |
details:
two kinds shaft:
type one: type two:
