Low RPM 100w 12/24v AC Output Generator With CE Made in China
US$ 100 - 150
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Naier
Model Number:
NE-100P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Much Discount 100watt 12/24v AC Generator Made in ChinaUS$ 100 - 150MOQ: 1 Piece -
Low Rpm 220V ac Permanent Magnet Generator 5kw Pmg Supplier's ChoiceUS$ 1,200 - 1,500MOQ: 1 Box
-
10kw Rotor Pmg Permanent Magnet Synchronous GeneratorUS$ 2,600 - 3,000MOQ: 1 Carton
-
Low Rpm 300w 12v/24v dc Generator PMGUS$ 130 - 225MOQ: 1 Set
-
ac 10kw Generator Permanent Magnet AlternatorUS$ 2,400 - 3,000MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Naier
Model Number
NE-100P
Type
Wind Power Generator

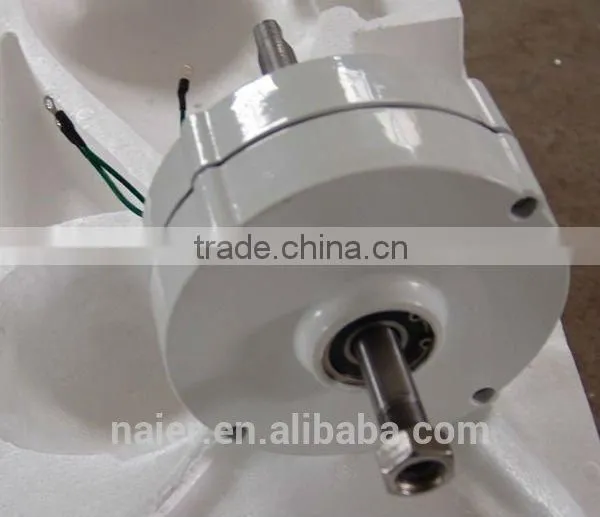

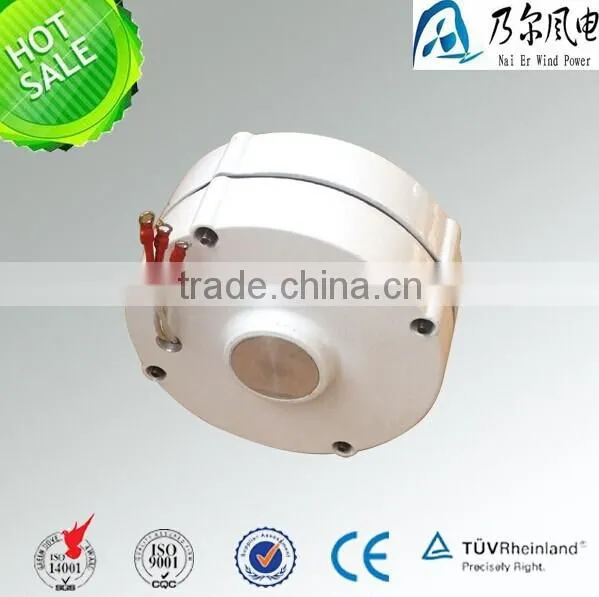

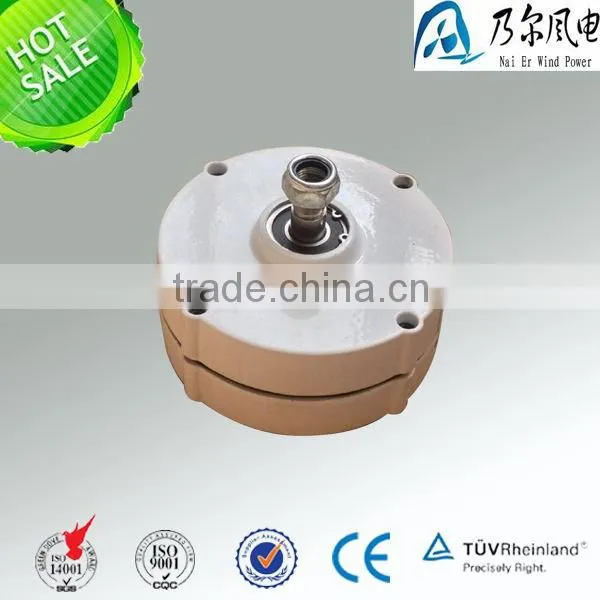

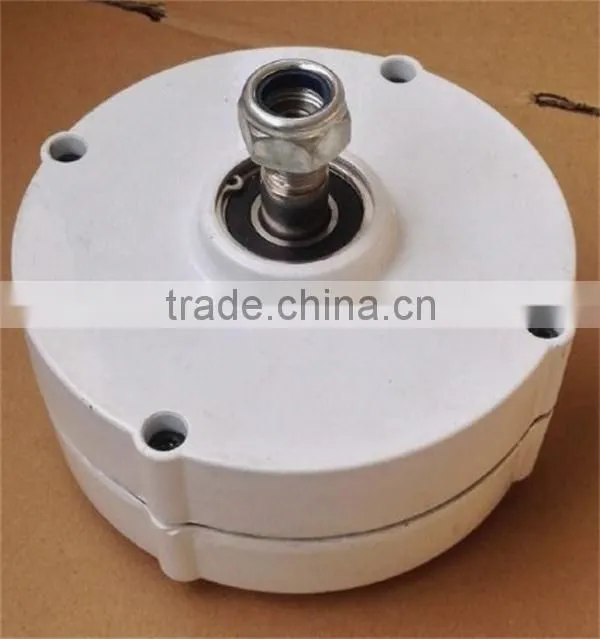

100w permanent magnet generator picture

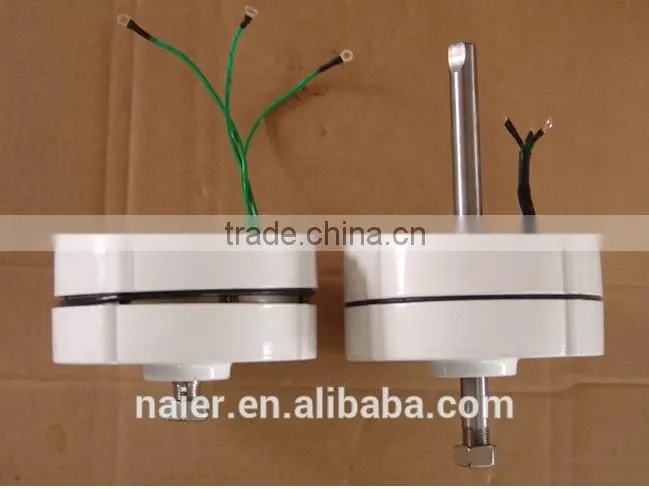

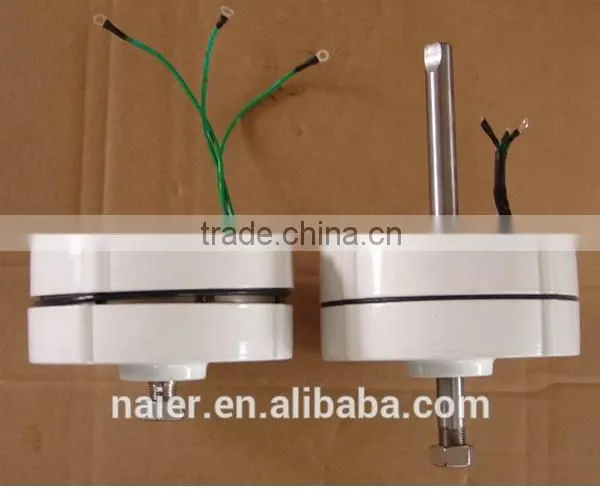

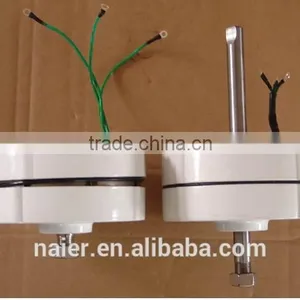

Remark: Dear friend, pls pay attention to one or two shafts...

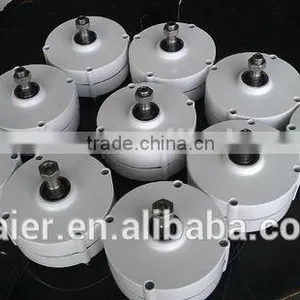

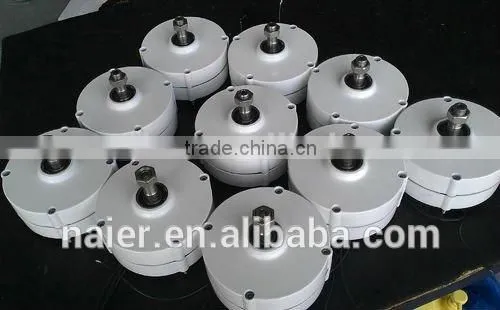

Goods in stock

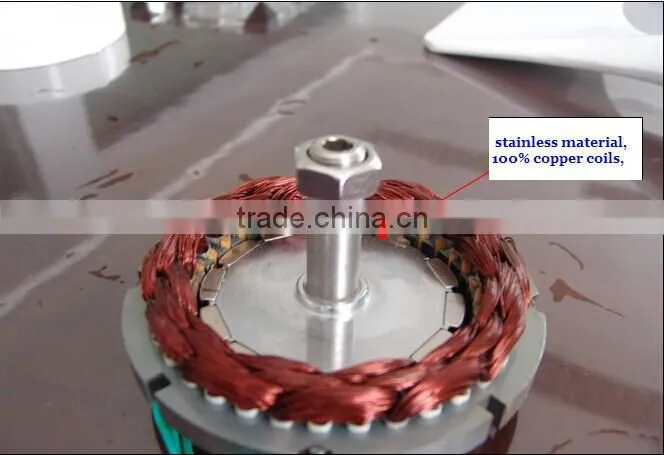

100w permanent magnet generator parts

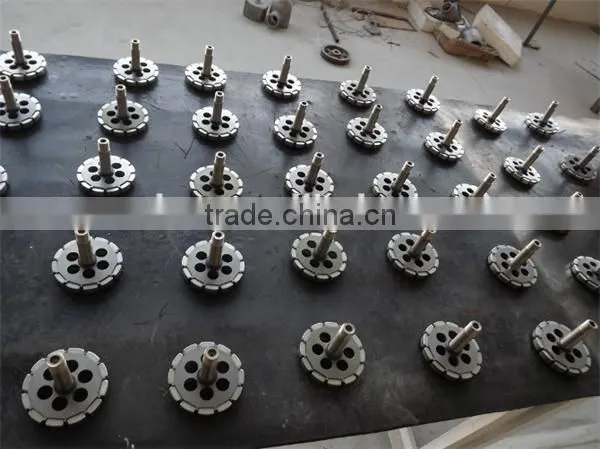

Rotor

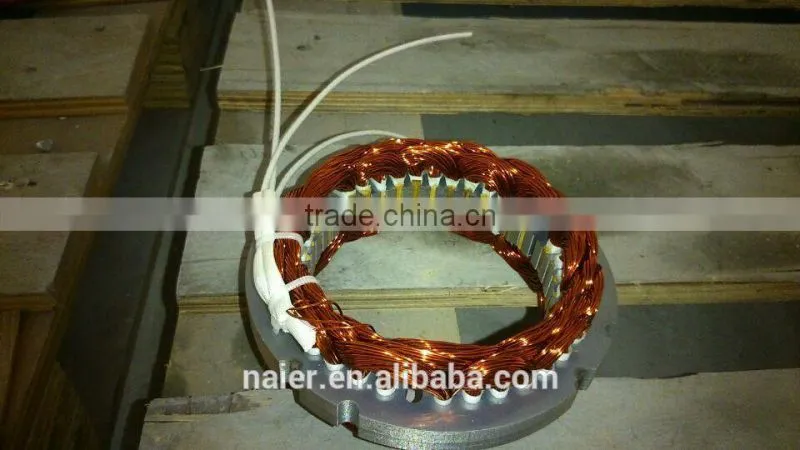

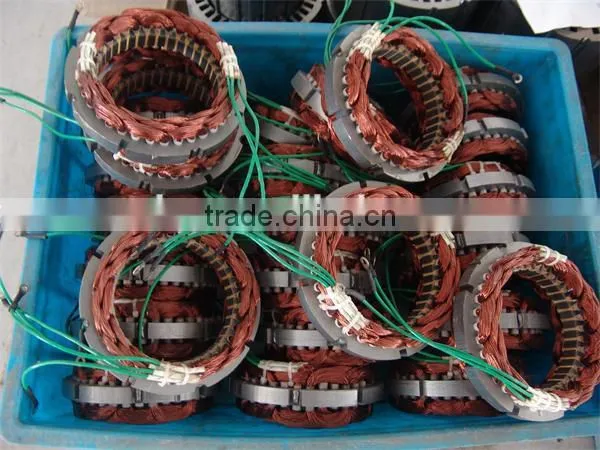

Stator
100w permenent magnet generator featurers
- Low start up speed;
- Low cogging torque
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- Alternator generator Type permanent magnet generator
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.
100w permanent magnet generator parameters
Model |
NE-100S |
Rated Power(w) |
100w |
Max Power(w) |
140w |
Rated Voltage(v) |
12/24v |
Rated rotated speed(r/m) |
600r/m |
Top net weight(kg) |
3.1kg |
Output Current |
AC |
Start Torque(N*M) |
0.08Nm |
Generator |
3 phase permanent magnet synchronous generator |
Insulation Class |
F |
Service Life |
More Than 20 years |
Bearing |
HRB or for your order |
Shaft Material |
stainless steel |
Shell Material |
aluminium alloy |
Permanent Magnet Material |
Rare Earth NdFeB |
Protection Grade |
IP54 |
Lubrication |
Lubrication Grease |
Working temperature |
-40℃ - 80 ℃ |

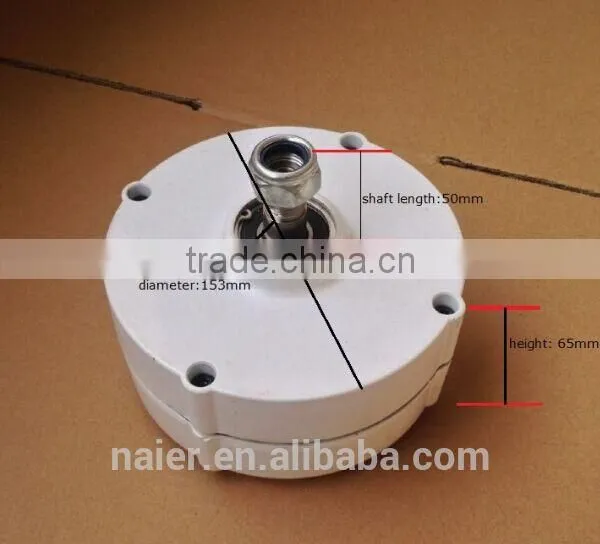

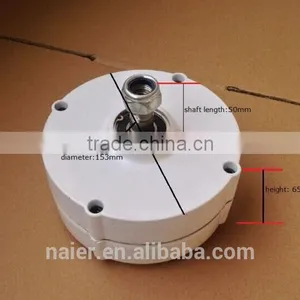

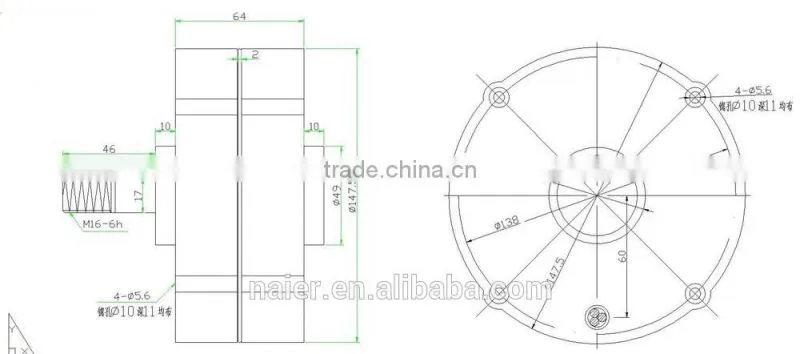

Drawing for Reference

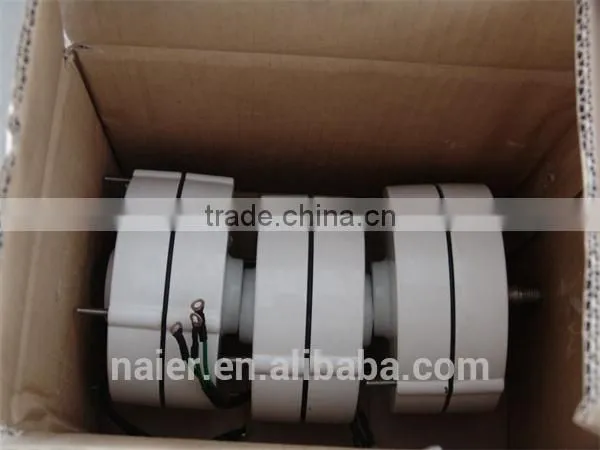

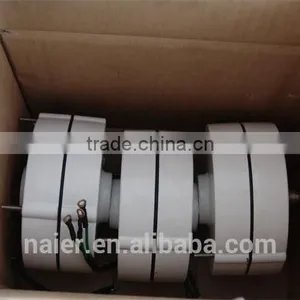

Standard Packing and Delivery
