Specifications

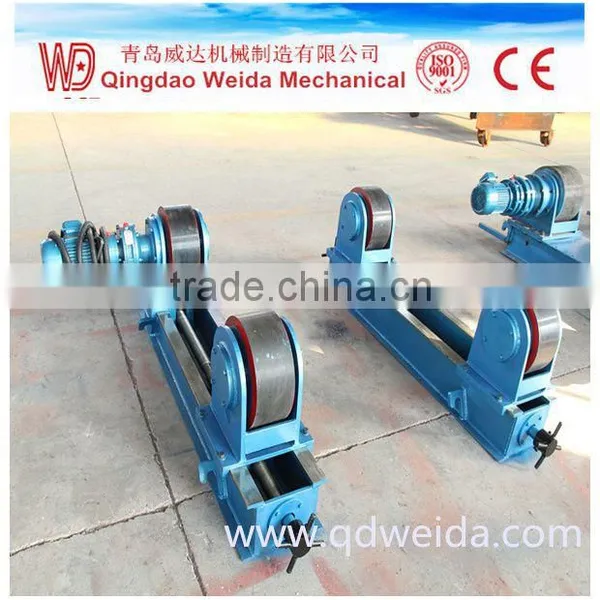

Vessel Welding Turning Roller1. Pipe manufacturing industries
2. Wind power fabrication
3. Chemical & fuel storage tank
Welding Turning Roller For Hot Sale
1. The swing angle of roller group can be automatically regulated according to the work piece diameter and size and manual calibration is not needed.
2. The active roller stand adopts gear joggle transmission.
3. Steel glue assembly roller, long ton adopts full steel rolling, which has big loading capacity and driven capacity.
4. Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable precision.
5. Manual conrol box operation, which can be remote controlled and it is simple and reliable.
This conventional welding turning roll is our high quality
We have advanced processing equipment and skilled workers
packing According to export standardensure product quality.
| Carrying Capacity(T) | Roller Diameter(mm) | Roller width(mm) | Roller speed(m/h) | Adaptation welding Rotator(mm) | Speed control mode |
| 2 | 180 | 100 | 6-60 | 220-1200 | frequency speed control |
| 5 | 200 | 130 | 6-60 | 250-2200 | |
| 10 | 300 | 150 | 6-60 | 320-3500 | |
| 20 | 300 | 200 | 6-60 | 450-3500 | |
| 30 | 350 | 250 | 6-60 | 500-4500 | |
| 50 | 400 | 300 | 6-60 | 500-4500 | |
| 70 | 400 | 300 | 6-60 | 600-5000 | |
| 100 | 500 | 300 | 6-60 | 700-5500 | |
| 150 | 500 | 300 | 6-60 | 800-6000 | |
| 200 | 600 | 300 | 6-60 | 800-6000 | |
| 250 | 600 | 320 | 6-60 | 800-6000 | |
| 300 | 800 | 320 | 6-60 | 1000-6500 | |
| 350 | 800 | 350 | 6-60 | 1000-6500 | |
| 400 | 800 | 350 | 6-60 | 1000-7000 | |
| 450 | 800 | 350 | 6-60 | 1000-7000 | |
| 550 | 800 | 350 | 6-60 | 1000-8000 |
If you want more details about our welding machine,please contact us
Add:NO.1 Weida Road Ducun Eastern Industrial District,Jiaozhou Qingdao,Shandong
Tel:0532-85239588
Fax:0532-85239566
Http://
