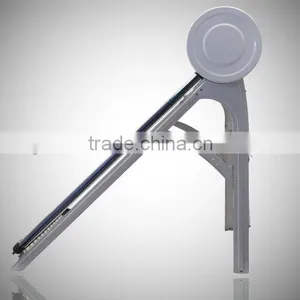

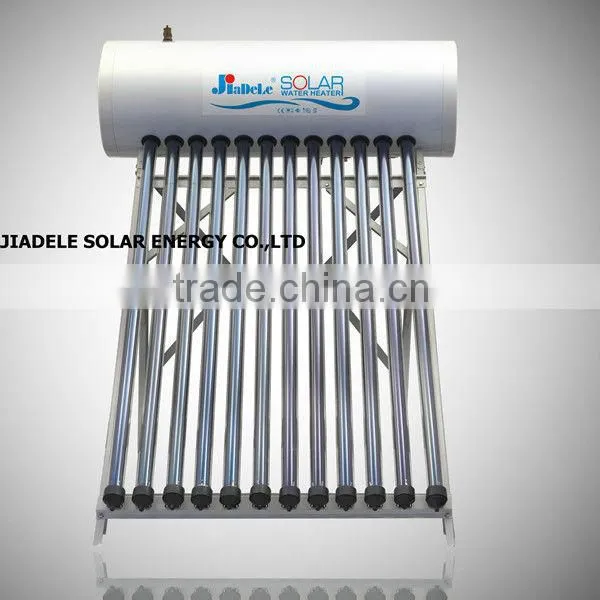

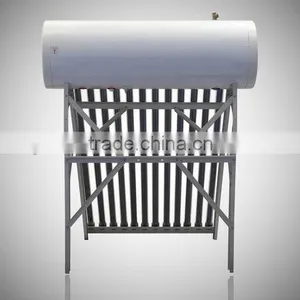

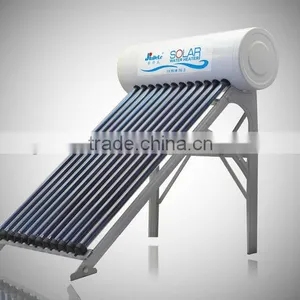

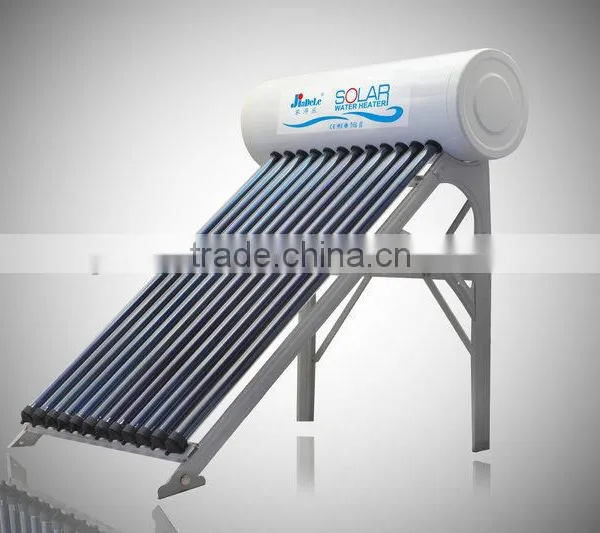

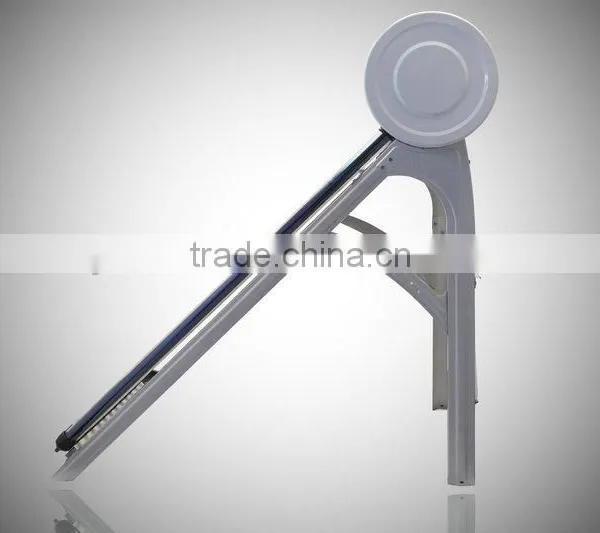

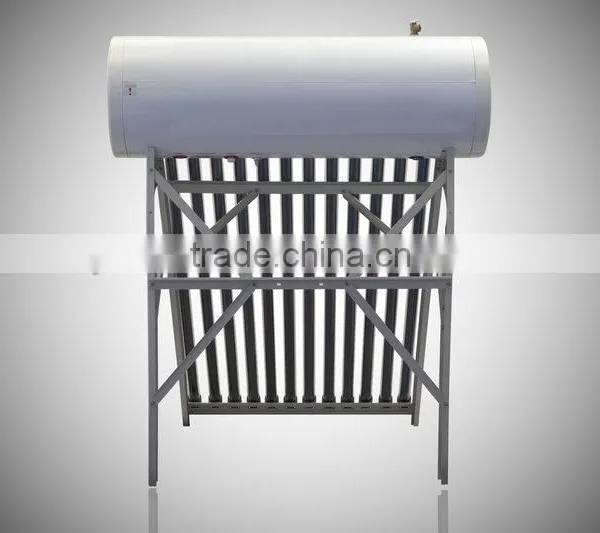

Help CenterPressurized Solar Water Heater
Related Products
| pressurized solar water heater . |
CHARACTERISTICS
Work with high pressure. Therefore, the warm water comes out with pressure too. It uses the heat pipe to deliver heat energy, water is heated rapidly. Each tube can work alone, so it can work even if one tube is broken.
Key Specification:
1) inner tank: SUS 304-2B food grade stainless steel sheet, thickness:1.2mm
2) outer tank: galvanized steel, thickness:0.40mm

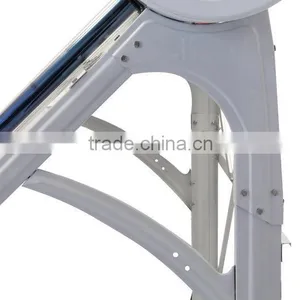

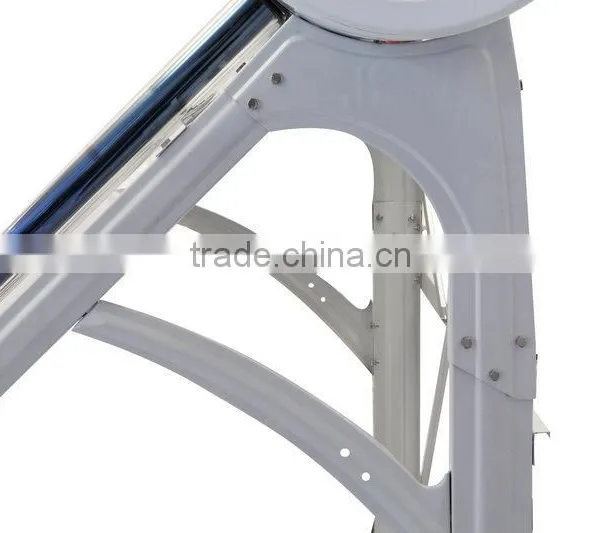

3) frame: galvanized sheet with electrostatic plastic coating, thickness: 1.5mm

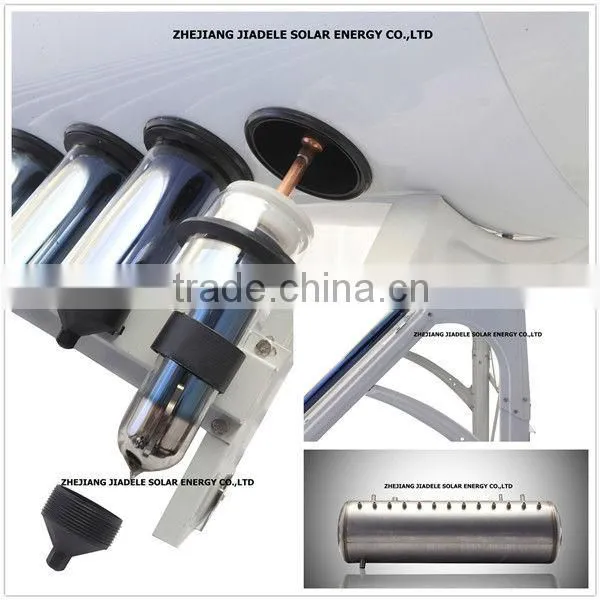

4) vacuum tube: high boron silicon glass with aluminum/red copper/ stainless steel bloomed, ST=300;
5) insulation layer: Polyurethane, thickness: 55mm
PARAMETER TABLE-1
|
Type (One) |
Area(m2) | Vacuum tube |
Volume (liters) |
Gross wet(kg) |
Volume/set (Cubic meter) |
||
| Length(mm) | Dia(mm) | Qty(pcs) | |||||
| JDL-HP15-58/1.8 | 2 | 1800 | 58 | 15 | 140 | 77 | 0.62 |
| JDL-HP18-58/1.8 | 2.43 | 1800 | 58 | 18 | 163 | 90 | 0.72 |
| JDL-HP20-58/1.8 | 2.71 | 1800 | 58 | 20 | 180 | 98 | 0.79 |
| JDL-HP24-58/1.8 | 3.24 | 1800 | 58 | 24 | 209 | 114 | 0.92 |
| JDL-HP30-58/1.8 | 4.05 | 1800 | 58 | 30 | 255 | 136 | 1.13 |
REMARK
Solar heat storage tank diameter(mm):365/480
Thickness, insulated(mm):55
Vent connection(inch):3/4
Electric heater connection(inch):1.25
Water connection(inch):3/4
Collector angle(degree):20/45
Test pressure(pa):0.9MPa
Operating fluid ppressure(pa):0.6MPa
Distance from tube to tube:80
