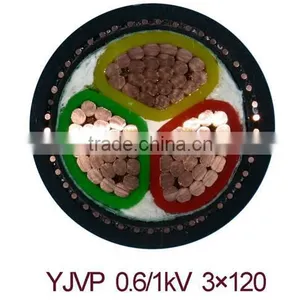

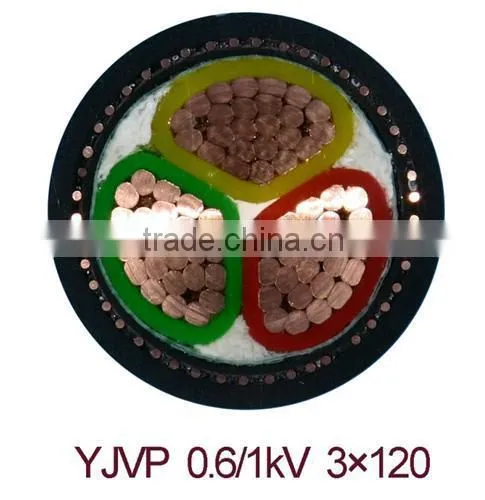

Help CenterThin Steel Wire Armored Power Electric Cable Wire With AL/CU Conductor Multi Core 25mm PVC Insulated PVC Sheath
Related Products
-
AL/CU Conductor Multicores 25mm PVC Insulated PE Sheath Thin Steel Wire Armored Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer -
Low Halogen Thick Steel Wire Armored Power Electric Power Cable With PVC Insulated PE Sheath Al Aluminum Conductor 4 CoreUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
AL/CU Conductor Multicores 25mm XLPE Insulated PE Sheath Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
AL/CU Conductor Multicore 25mm XLPE Insulated PVC Sheath Steel Tape Armored Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
AL/CU Conductor Multicores 25mm XLPE Insulated PVC Sheath Double Steel Tape Armored Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation
This product is the normal used cable, not suitable for some special places, such as underwater, ship, nuclear station, etc.
The product has good performance on electrical characteristic, chemical resistance, such as acid resistance, alkali resistance and organic solvent resistance. The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.
TYPE OF PRODUCT
type |
Name of product |
|
Cu |
Al |
|
VV |
VLV |
PVC insulated PVC sheath power cable |
VY |
VLY |
PVC insulated PE sheath power cable |
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheath power cable |
VV23 |
VLV23 |
PVC insulated steel tape armored PE sheath power cable |
VV32 |
VLV32 |
PVC insulated thin steel-wire armored PVC sheath power cable |
VV33 |
VLV32 |
PVC insulated thin steel-wire armored PE sheath power cable |
VV42 |
VLV42 |
PVC insulated thin steel wire armored PVC sheath power cables |
VV43 |
VLV43 |
PVC insulated thin steel –wire armored PE sheath power cables |
Bunched burning characteristic
Code |
Volume of non metal materials(L/m) |
Time of fire supply/s |
Acceptable index |
Test mode |
|
ZA ZB ZC ZD |
7 3.5 1.5 0.5 |
40 40 20 20 |
1.The length of carbonation is no more than 2.5m from the bottom of nozzle 2.The time of flaming combustion shall be no more than 1h, after fire supply is stopped. |
GB/T 18380.3 IEC 60332-3-25 |
ZD is suitable for the cables whose sample's outer diameter is no more than 12mm. | ||||
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
