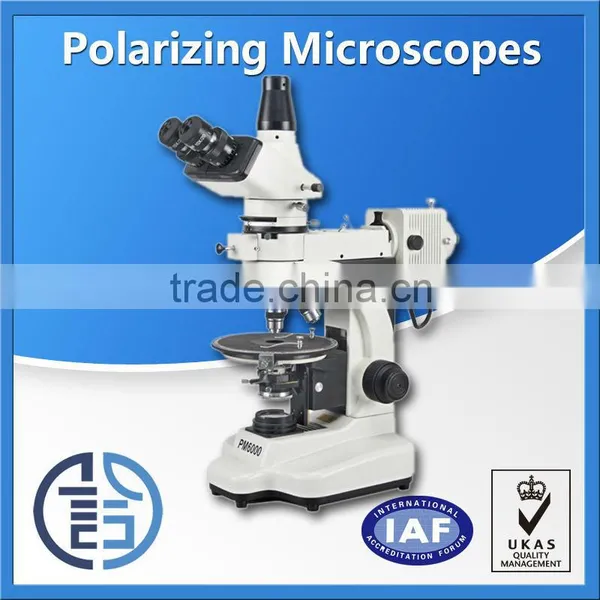

PM6000 Polarization Microscope Price Cheap Polarizing Microscope Sale
US$ 1,581 - 1,739
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YanHe
Model Number:
PM6000
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XPL-2 Binocular Polarizing Microscope Optical Microscope for PcbUS$ 1,494 - 1,565MOQ: 1 Set -
XP-221 Polarizing Microscope Best Student Microscope for Kids Lab MicroscopeUS$ 1,328 - 1,391MOQ: 1 Set
-
XP-213 Polarizing Microscope for Inspection and Education Usb Digital Microscope China MadeUS$ 916 - 948MOQ: 1 Set
-
XPT-7 Monocular Microscope Digital Eyepiece Camera Student MicroscopeUS$ 663 - 711MOQ: 1 Set
-
VCE-1/DCE-2N Microscope Digital Eyepiece Camera Vga Microscope CameraNegotiableMOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YanHe
Model Number
PM6000
Theory
Other, Polarizing Microscope
Drawtube
Trinocular
Features
· Research-LeveI transmission/reflection microscope.
· Widely used in crystalIOg raph y1 Geology,Analytical chemistry,MediciRe,Biology,Medical jurisprudence,Environmentalology,Pharmacy,Toxicology,Asbestos analysis and so on.
· Supply sharp and clear images by singIe poIarization,othorgonal polarization or conoscopic observation.
· Can be used for educationaI researching Iike quaIitative anaIysis and quantitative measurement.
Specification
| PM6000 | |||
| Viewing Head | Sliding trinocular viewing head, Inclined at 30° | A | |
| Eyepiece | Eyepiece WF10×/18 with scale of cross hair | A | |
| Eyepiece WF10×/ 18 with graticule | A | ||
| Eyepiece WF 10×/18 | A | ||
| Objective | Strain free achromatic objective 4×,10× | A | |
| Strain free achromatic objective(Transmitted)25×,40×,63× | A | ||
| Strain free plan achromatic objective(Reflected)25×,40×,63× | A | ||
| Lamp house adjustment objective | O | ||
| Nosepiece | Backward quadruple nosepiece, Center adjustable | A | |
| Analyzer | Rotatable analyzer with gradation 0°-90° | A | |
| Bertrand Lens | Bertrand lens, Sliding in/out of optical path | A | |
| Optical Compensator | λ Slip(first class red), 1/ 4λ Slip, Quartz Wedge | A | |
| Revolving Round Stage | Diameter Φ160mm, Graduated in 1°Increments, Minimum resolution 6’ when using vernier scale | A | |
| NA1.25 Abbe condenser with iris diaphragm & filter | A | ||
| Condenser | |||
| Focusing | Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm | A | |
| Polarizer | 360° Rotatable | A | |
| Illumination | 12V/ 20W Halogen lamp, Brightness adjustable(Transmitted illumination) | A | |
| 12V/ 50W Halogen lamp, Brightness adjustable(Reflected illumination) | A | ||
| Accessories | C Mount | 0.5×C | O |
| 1×C | O | ||
| Mechanical stage, Moving rang 30×40mm | O | ||
| Specimen presser | O | ||
| Micrometer | A | ||
| Filter | O | ||
| Note: "A"Standard Outfit, "O"Optional | |||
