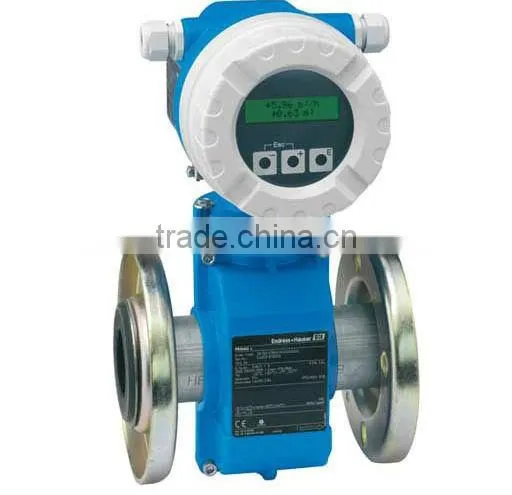

E+H Digital Electromagnetic Flowmeter Promag 10L

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Germany

Brand Name:

E+H

Model Number:

Promag 10L

Xian Wellwork Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Germany

Brand Name E+H

Model Number Promag 10L

Specifications

1.High degree of reliability and measuring stability
2 Compact wafer design
3 High level of efficiency thanks to modular

E+H Digital electromagnetic flowmeter Promag 10L

The no-frills flowmeter for water: Robust – economical – precise

Electromagnetic Flow Measuring System

Flow measurement of liquids in water or wastewater applications

Benefits

Promag measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.

The uniform Proline transmitter concept comprises:

The tried-and-tested Promag sensors offer:

Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum conductivity of ≥ 50 μS/cm:

Application-specific lining of the measuring pipe from polyurethane, hard rubber or PTFE with the following drinking water permissions:

Specification of Promag L 400:

Measure Principle	Electromagnetic
Main features	Volume flow meter with economic flange design for measurement of standard water / wastewater applications
Features	Webserver HistoROM System Diagnostics Shorter face-to-face lenghts after DN450 (18") 3 Totalizers Worldwide Drinking Water Approvals
Diameter	DN 50...2400 (2"...90")
Measuring range	0...162'000 m3/h (713'000 gal/min)
Process temperature	Polyurethane Liner: -20…+50°C (–4 to +122 °F) Hardrubber Liner: 0…+80°C (+32 to +176 °F) PTFE Liner: -20…+90°C (–4 to +194 °F)
Pressure range	PN10...16 Cl 150
Measured error	0.5% 0.2% (optional)
Communication	HART
Outputs	4...20 mA 2 x Pulse/Frequency/Status
Inputs	Status
Ex-Approvals	cCSAus Cl I Div. 2
Protection electronic	IP 67 (NEMA 4x) Sensor optional IP 68 (Nema 6P)
Display/Operation	Four line graphical display with backlit Touch Control
Advantages	No risk of loosing data due to automatically safed device data (HistoROM) - guarantees a high plant availability Easy device operation in the filed due to the most modern inbuilt webserver technology - safes time and allows for configuration without any specialized tools "Life Cycle Management Support" guaranteed
