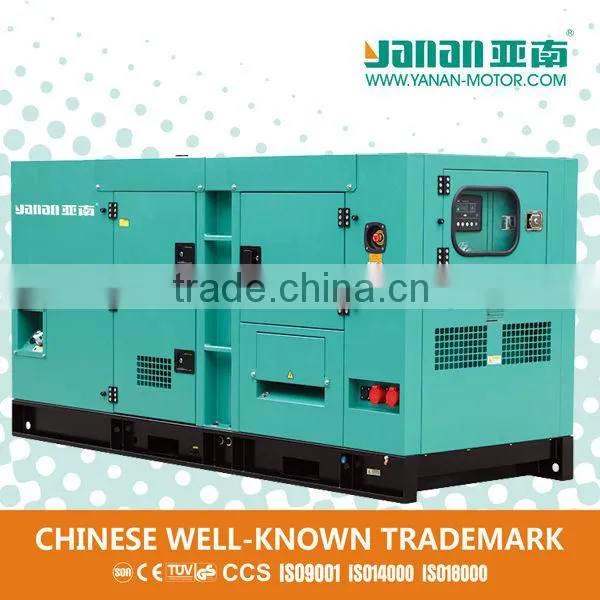

Yanan Water-cooled 85kva Cummins Generators

Name: Yanan Water-cooled 85kva Cummins Generators
Brand: Cummins
SKU: 113943371

US$ 10,000 - 15,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Cummins

Model Number:

C68/S

Fujian Fuan Mindong Yanan Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Cummins

Model Number C68/S

Output Type AC Three Phase

Speed 1500RPM

Frequency 50H

Rated Power 68KW/85kva

Rated Voltage 400/230V

Rated Current 6.1A-3650A

Specifications

Yanan Water-cooled 85kva Cummins Generators
1:Low oil comsuption.
2.9kva to 2000KVA
3:Certificate:CE,ISO,SONCAP.UL etc.

Product Description

Yanan Water-cooled 85kva Cummins Generators
Diesel Generator Set
GENSET MODEL NOS.	C68/S
Manufacturer	Yanan
Rated speed / frequency	1500RPM/50Hz
Continuous outputKW/KVA	68/85
Standby outputKW/KVA	75/94
Voltage, Phase and wire	400V/230V, 3 Phase and 4 Wires
Rated power factor	0.8lagging
Dimension(LWH) (mm)	20707501460
Weight(kg)	1370
Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40)
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Diesel Engine
DIESEL ENGINE MODEL	6BT5.9-G2 (Cummins)
Engine Characters	Water-cooled, 4 cylinders in line, 4-cycle, direct injection
The engine outputKW	92
Aspiration	Turbocharge
Bore(mm)×Stroke (mm)	102X120
Compression ration	17.5:1
Fuel consumption(L/H)	17.2(100% load)
Displacement(Liters)	5.9
Exhaust air flow(m3/min)	96
Compress air flow(m3/min)	5.1
Exhaust gas flow(m3/min)	14
Exhaust highest temperature	510
Lub-oil pan capacity(L)	16.4
Cooling water capacity(L)
Voltage for start(V)	24
Instrument for adjusting speed	Electronically
Noise level(A)
ALTERNATOR
ALTERNATOR MODEL	SLG224G
Excitation	Brushless
Insulation class	H
Protection class	IP22
Efficiency	90.20%
Voltage adjust range	±1% with 4% engine governing
Steady state voltage regulation	≤±1%
Voltage Control	AVR
