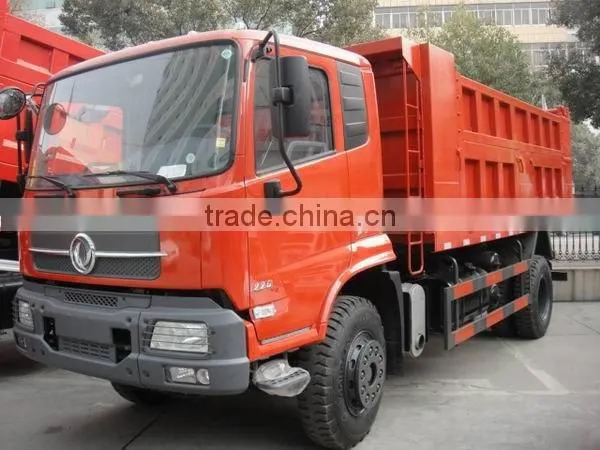

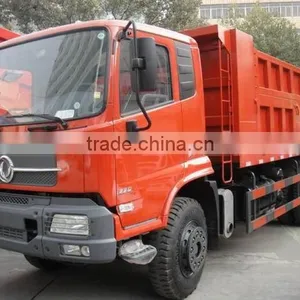

30 Ton Heavy Dump Truck

Name: 30 Ton Heavy Dump Truck
Brand: Qixing
SKU: 113965705

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

11 - 20t

Horsepower:

251 - 350hp

Hubei Qixing Vehicle-Body Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Wuhan or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 11 - 20t

Horsepower 251 - 350hp

Condition New

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Gross Vehicle Weight 26

Place of Origin Hubei, China

Brand Name Qixing

Model Number M2633D

Dimensions (L x W x H) (mm) 6800*2530*3138mm

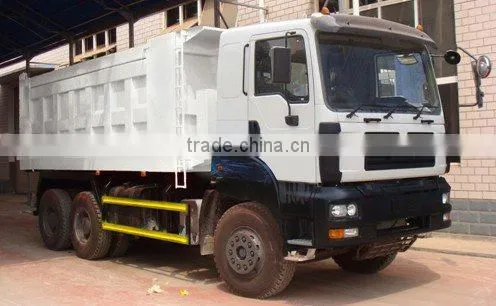

30 ton heavy dump truck

BASIC SPECIFICATIONS TIPPER TRUCK DRIVING TYPE 6×4
Model	M2633D
Engine	Engine model: Steyr WD12.336
	Type: Diesel, 4-stroke, direct injection engine
	6-cylinder in-line with water cooling, turbocharged & intercooled
	Maximum output according to DIN: 247 KW at 2200 rpm 336HP
	Displacement: 11.596L
	Min. fuel consumption: ≤198 g/kwh
	Displacement criterion: EUR 2
Transmission	Model: Fuller RT-11509C
	Operating type: Manual shift with hydraulic assistant
	Type: With constant-mesh-gear braker
	Constant-mesh: 8 forward & 1 reverse 8 speed shift
Axle	Front axle model: Steyr 6.5T Rear axles model: Steyr 13T
Steering system	Model: ZF8098, (Germany ZF ,made in China)
Electrics	Operating voltage: 24V, negative grounded
Dimensions	Driver’s cab size (mm):	203024902623
	Wheelbase	3600 +1350 mm
	Cargo body size	19.3CBM
Weight in kg	Gross vehicle weight 26000 kg
Performance	Maximum driving speed (km/h) 92
	Fuel tank capacity (L) 380
