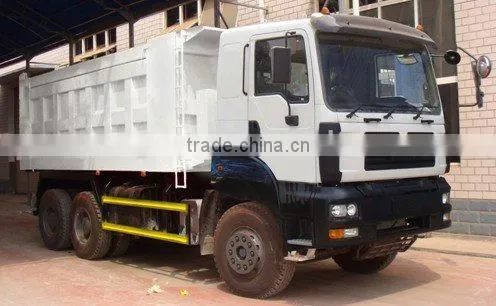

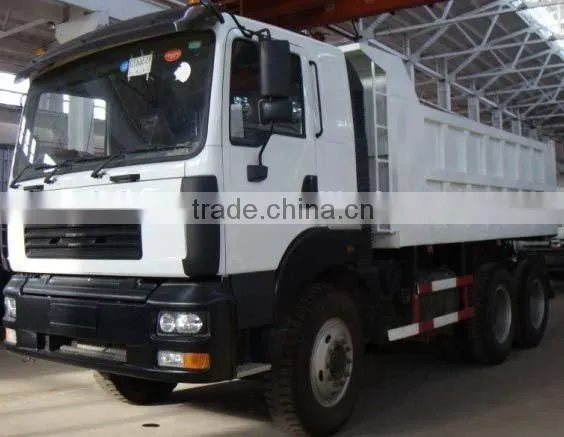

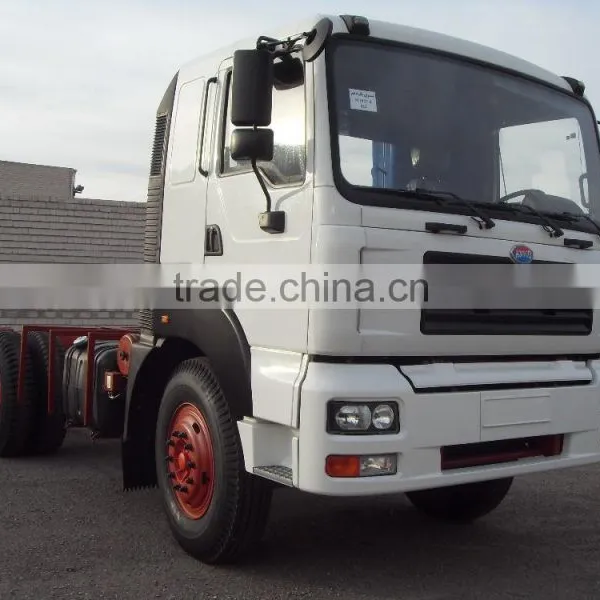

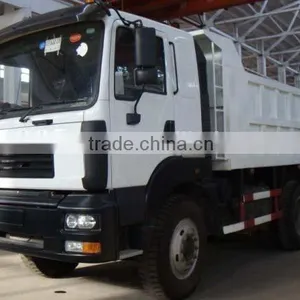

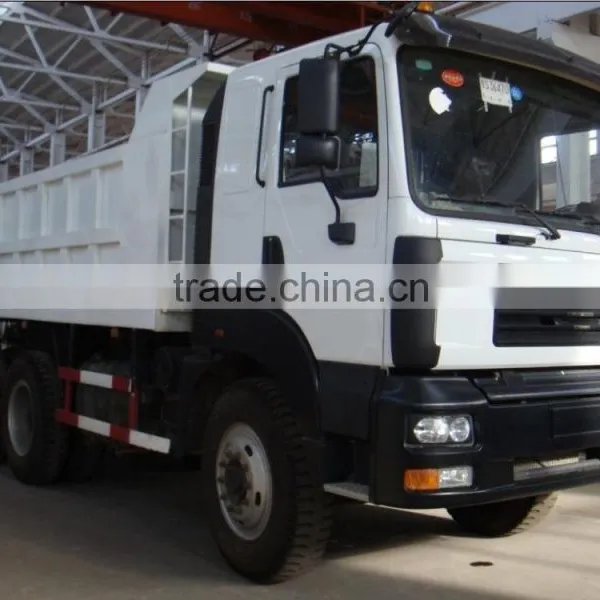

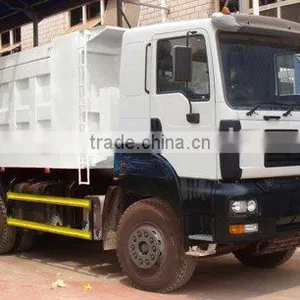

6*4 Tipper Truck

Name: 6*4 Tipper Truck
Brand: Qixing
SKU: 113965745

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

31 - 40t

Horsepower:

351 - 450hp

Hubei Qixing Vehicle-Body Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 31 - 40t

Horsepower 351 - 450hp

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Gross Vehicle Weight 30

Place of Origin Hubei, China

Brand Name Qixing

Model Number QX3190

Dimensions (L x W x H) (mm) 9915*2500*3130mm

Engine	Engine model: WP12.400N
	Type: Diesel , 6-cylinder in-line with water cooling, turbocharged & intercooled,
	Injection pump:
	Maximum output according to DIN: 294kw/2100r/mm
	Maximum torque: 1920N.m/1000-1400r/min
	Displacement criterion: EUR 3
Clutch	Model: Φ430Diaphram spring, single-plate and dry type,
Transmission	Model: FAST 12JS200TA,Eaton Tech, with overran gear and Full synchronizer
	Ratio: 12.10;9.41;7.31;5.71;4.46;3.48;2.71;2.11;1.64;1.28;1.00;0.78 11.56(R) 2.59(R)
Axle	F: 6.5 ton2, 13ton 2, Steyr axle, Ratio: 5.73, Hub reduction
	Type: Rigid stub axle with T type
Steering system	Model: Germany ZF8098, Steering with total power assisted
Braking system	Service brake Dual circuit compressed air brake, WABCO ABS/ASR/EBL/TMP
	Parking brake: Spring energy compressed air brake
	Auxiliary brake :Engine exhaust brake with MAN EVB
Electrics	Operating voltage: 24V cathode cable
Dimensions in mm	Wheelbase	1850+3850+1350
	Approach angle	27°
	Departure angle	58°
	Overall length* width* Height	991525003130
Weight in kg	Max loading capacity	23 ton
	Gross vehicle weight	19 ton
Performance	Maximum driving speed (km/h)	86Km/h
	Fuel tank capacity (L)	420L
	Maximum grade ability (%)	33°
	Minimum ground clearance (mm)	320
	Fuel consumption (L/100km)	≤42
	Min. turning radius (m)	≤20
