Specifications
1. cement concrete compression testing machine2. hydraulic compressive strength tester
3. Maximum capacity:3000KN
4.ISO,JIS

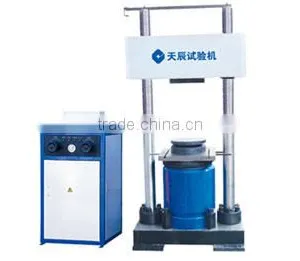

Concrete compression testing machine Hydraulic compressive strength testing machine
1. Introduction:
The machine can test the pressure resistance of cement, concrete and other components and so on. If add the special accessories, it can do the anti-break and anti-pressure test for building materials and brick. It meets GB/T2611-92,GB/T3722-92 and other test standard, and is executable to GB, ISO, JIS, DIN, ASTM and other International test standard. It applies to quality control department, engineering inspection department, University and college, mining industry and other institution.
2. Main Technical Specifications:
|
Model Specification |
YES-3000 |
|
Max test force (KN) |
3000 |
|
Min test force (KN) |
120 |
|
Range of test force (KN) |
2%~10%FS,three subsection 1,2,5 |
|
Relative error of indicating value |
Better than ±0.5% of indicating value |
|
Upper compression plate size (mm) |
φ380 |
|
Lower compression plate size(mm) |
φ380 |
|
|
Max distance between upper and lower compression plate(mm) |
500 |
|
Max. width of test space(mm) |
630 |
|
Max piston stroke (mm) |
200 |
|
Structure |
Large test space, double-column structure |
|
Power supply |
380V±10%,50Hz |
|
Working environment |
10°C~35°C,relative humidity≤80% |
|
|
Overall dimension (L×W×H)(mm) |
Host machine |
1115×740×2850 |
Control box |
670×600×1165 |
|
Weight(kg) |
4850 |
|
