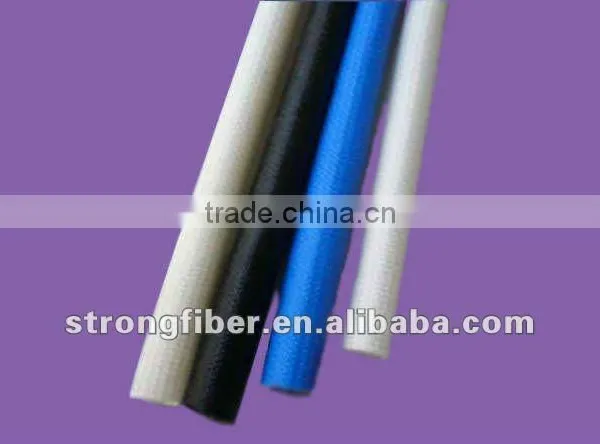

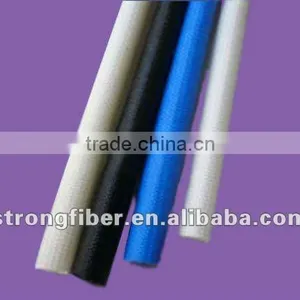

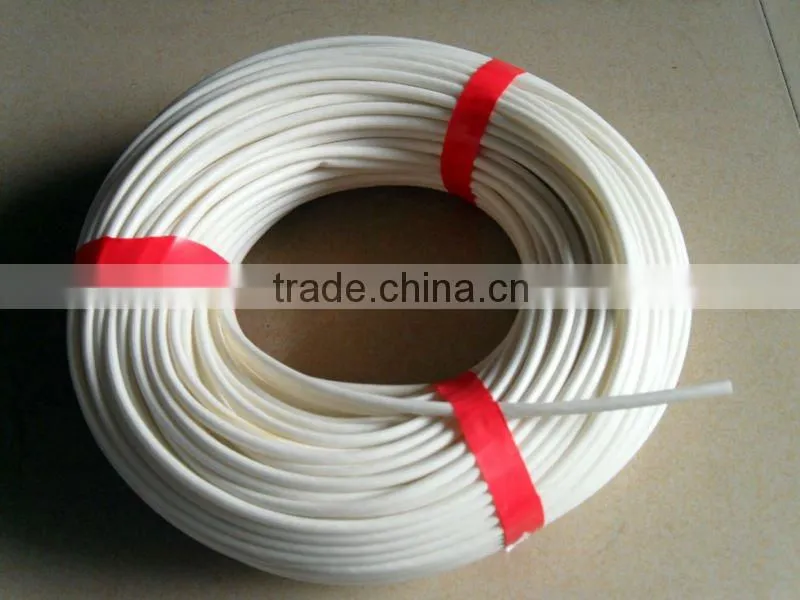

colored pipe insulation
We could supply Silicone fiberglass sleeving/ Polyurethane fiberglass sleeving/ Acrylic fiberglass sleeving and Heat treat fiberglass sleeving.
| Specification | ||||
| Inside diameter(mm) | Tolerance(mm) | Wall Thickness(mm) | ||
| DAF-1 | DAF-2 | DAF-3 | ||
| 0.5-2.5 | +0.3 -0.0 | 0.40±0.12 | 0.41±0.12 | 0.43±0.12 |
| 3.0-4.5 | 0.46±0.13 | 0.408±0.13 | 0.51±0.13 | |
| 5.0-8.0 | 0.50±0.15 | 0.52±0.15 | 0.55±0.15 | |
| 9.0-12 | 0.60±0.18 | 0.62±0.18 | 0.66±0.18 | |
| 14.0-16.0 | 0.62±0.18 | 0.65±0.18 | 0.80±0.18 | |
sililcone fiberglass sleeving
We could provide you DSG with different voltages: DSG-1(1.5KV), DSG-2(2.5KV),DSG-3(4KV),DSG-4(7KV),DSG-5(10KV)
Thermal Class:H
Color: we could provide you the color as your requirements.
Application: Silicone fiberglass sleeving is widely used in wiring insulation and mechnical protection for electric motors, transformers and electrical instruments.
Polyurethane fiberglass sleeving
DPG is fiberglass braided sleeving coated with polyurethane resin and cured by high temperature.
Good features: good mechanical resistance, fair softness and elasticity, soldering heat resistance, watertight, good dielectric strength.
Standard Voltage: DPG-2(2.5kv), DPG-3(4KV)
Thermal Class: F
Applications: It's widely used in wiring insulation and mechanical protection for class F electric motors, transformers, appliances, generators,wireless sets and other electrical instruments.
Color: Nature color is amber. Other available color according to customers' request.
Acrylic fiberglass sleeve is fiberglass braided sleeve coated eith acrylic resin and cureed with high temperature. It has good mechanical property, water resistence and dielectric strenghth.
PVC fiberglass sleeving is fiberglass sleeving coated with PVC resin, with very good flexibility and dielectric features, it is widely used as insulating and protection material for motor and electric appliance.
