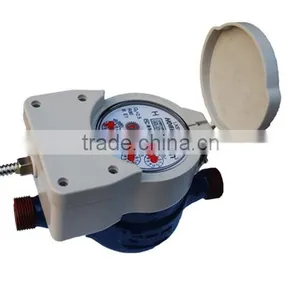

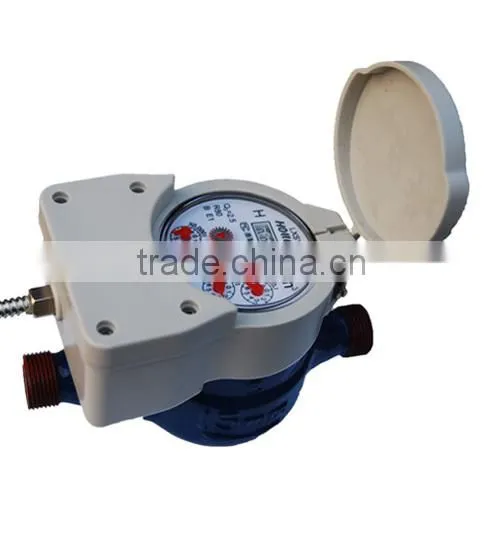

Help CenterRS485 Remote Reading Water Meter
Related Products
Specifications
1. Dry Type Keep Clear Dial For Long Time;2. Remote Reading save manager cost;
3. efficient Meter Reading

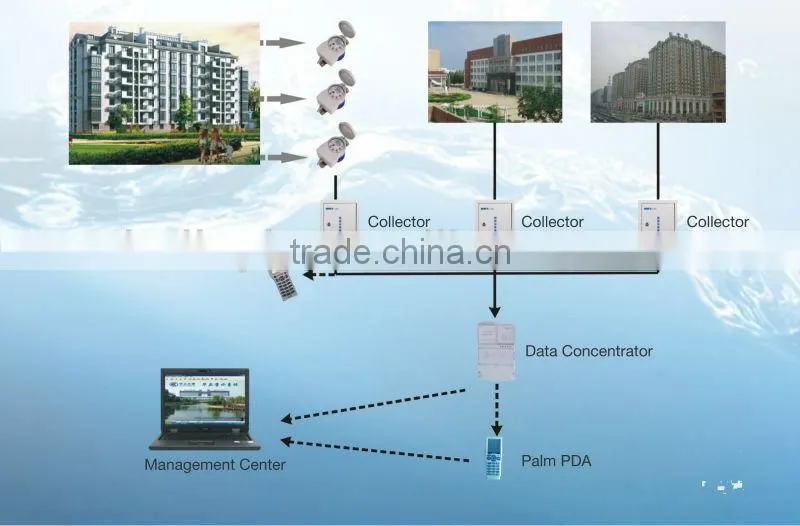

M-Bus is especially applied as the Bus structure of public utilities' meters, called as Meter-Bus, short for M-Bus. M-Bus meter bus line pertains to LAN (Local Area Network), is a special network for the same residential building, campus or a certain region within several kilometers that being applied in connecting long distance monitor computer and workstation and the measuring instruments etc.
Product Features:
1>Confirms to EN13757-2 2004 international standard, with a favorable compatibility and openness, meanwhile supports various meter types, such as water/electricity/gas/heat meters etc.
2>Adopt two wire connection mode, enables a long communication distance and bus power supply
3>Non-polar of the transmission line, willfully branch of the network topology, easy network, shooting the problem of meter breakdown and failure of meter reading caused by Bus line misconnection
4>Double power supply modes: Lithium battery and Bus line power supply
5>Real-time reading of the current meter data and monthly data within a year
6>Low power dissipation, quiescent operation current below 5 μ A, guarantee battery of a long service life
Product Advantages:
*M-Bus is the common international standard of consumer instruments, whose topology structure is the Bus line that applies the most common two wires connection and offers/fulfills the function of metering power supply & data communication.
*Non-polar of the Bus line in connecting, willfully wiring construction of the topology network, thus hugely cuts the construction cost & difficulty.
*Bus Line enjoys a perfect compatibility and openness.
*Strong compatibility/generality of its topology structure, allow liner/loop/star or various mixed types.
Technical Data:
Items |
Contents |
Water Temperature |
0.1°C-50°C |
Working Pressure |
1.0MPa/1.6MPa |
Head Loss |
0.063MPa |
Max. Permissive Error |
maximum permissible error: upper zone(Q2≤Q≤Q4),±2%;low zone(Q1≤Q<Q2), ±5% |
Base Meter Parameters:
Nominal Dia. |
Permanent Flow Q3 |
Q3/Q1 |
Q2/Q1 |
Min. Reading |
Max. Reading |
mm |
m³/h |
m³ |
|||
15 |
2.5 |
80/100 |
1.6 |
0.0001 |
99999 |
20 |
4 |
80/100 |
1.6 |
||
25 |
6.3 |
80/100 |
1.6 |
||
Installation & Weight:
|
Nominal Dia. DN(mm) |
Length L |
Length L1 |
Width B |
Height H |
Connecting Thread
|
|
mm |
d |
D |
||||
15 |
259 |
165 |
89 |
124 |
R1/2 |
G3/4B |
20 |
300 |
195 |
89 |
124 |
R3/4 |
G1B |
25 |
344 |
225 |
89 |
130 |
R1 |
G1 1/4B |
