Specifications
1.LED Stadium Light;2.Original CREE LED and Meanwell driver;
3. CE, RoHS, PSE, IP66
4. Eco-friendly;
5. 5 years warranty

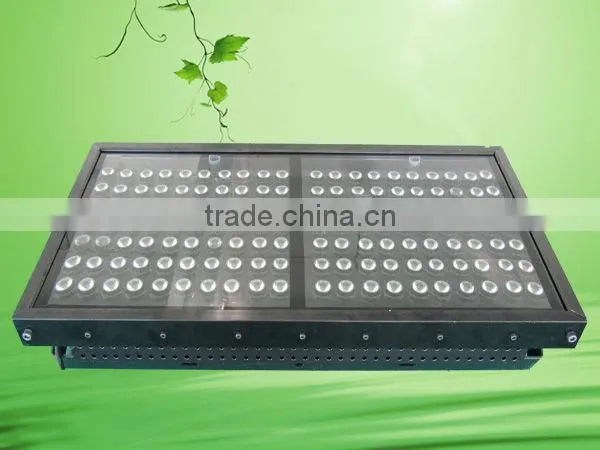

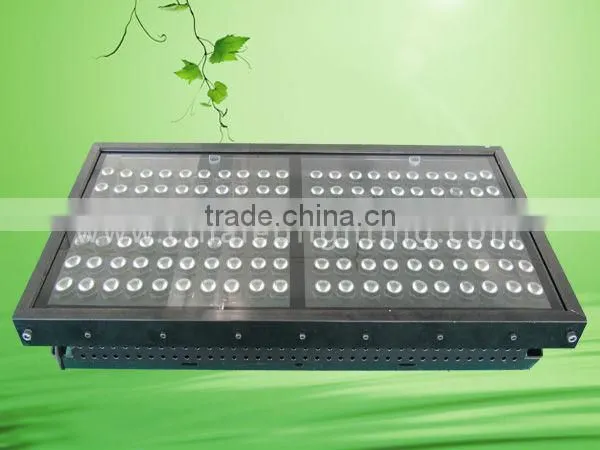

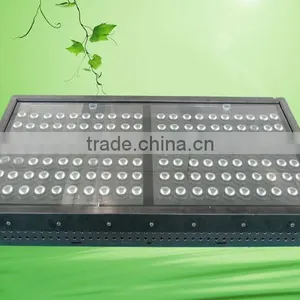

LED Stadium Light 300W
Special Feature :

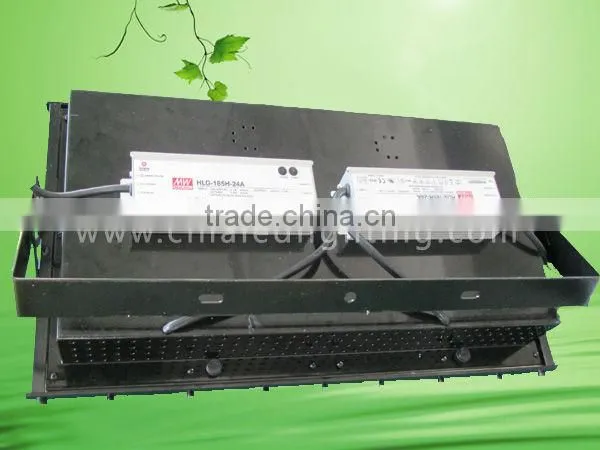

1. Quality Waterproof Driver with 5-year warranty(Taiwan Meanwell driver)
A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>95%
D, UL, TUV, PSE compliance
2. High-performance Original CREE LED and perfect wiring design
Even if one led failed, the remaining LEDs will still work.
3, Safety
A, CE, RoHS, PSE , ATEX, EN62471,IP66
B, IP66 test pass
C, Safe voltage output : 36VDC Max output
D, 4000V Hi-pot test pass
4,Low Light Loss
The light source is the low light loss and high-bright LED, in which the loss is less than 5% for every 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.
5,Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance, such as Lead and Mercury.
6,Anti-vibration
Solid-state device. Can withstand Moderate vibrations
7,Warranty Policy
5 years warranty with free collection and free delivery .

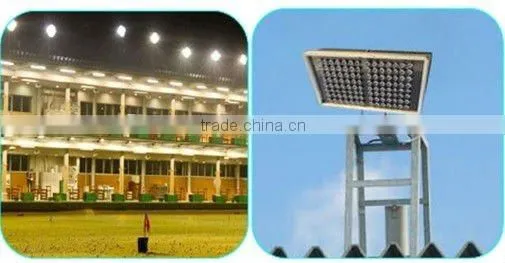

Application :
n Recreation area lighting
n Warehouse lighting
n Sign lighting
n Building lighting
n Car park lighting
n Perimeter fence lighting
n Street lighting
n Gas station lighting
Technical Specification :
Product Code |
CA-FLW30-300W |
Waterproof Rate |
IP66 |
Total Power Comsuption |
300W±10% |
Input Voltage |
90-305VAC |
Input Frequency |
47-63Hz |
Light Source |
CREE LED |
lumen |
27000-30000Lm |
Luminous Efficiency |
90Lm/W |
Beam Angle |
5/25/60 degree |
LED Color |
Warm white, Cool white |
Color Temp(K) |
3000K±300,5700K±500 |
CRI |
Ra>75 |
LED Lifespan |
40000Hrs |
Operating Temp |
-40°C to +70°C |
Working Humidity |
0-95% |
Alu Shell Color |
Silver(Standard) |
Product Size(mm) |
600x300x80 |
Packing Size(mm) |
700x400x 160 |
Weight |
13kg |
Packing Details:
Part No. |
Item Size |
Packing Qty |
Gross Weight |
Carton Size(L*W*H) |
CA-FLW30-300W |
600x300x80mm |
1Pcs |
13kg |
700x400x160mm |
Caution & Warning:
1, To ensure the feature of water resistance , unauthorized person is not allowed to disassemble flood light construction .
2, The safety operating temperature is -40°C to +70°C . Make the product work in the circumstances with this temperature range . Otherwise the product will break down or components inside may have a shorter lifespan . The average temperature on the product body is 40-50 deg.Celsius . It is suggested the product is installed beyond the hand touch on the metal body .
3, Don’t give a stress on the front surface of the glass with more than 0.2MPA/m2
4, Please make sure the electricity is powered off before the maintenance .
5.If any doubt about the installation or use of this product, consult a competent electrician or technician .
