Home > Lights & Lighting > LED Interior Lighting > LED High Bay Light > 100W Hi-IP LED High Bay Original CREE LED

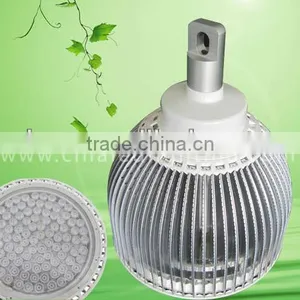

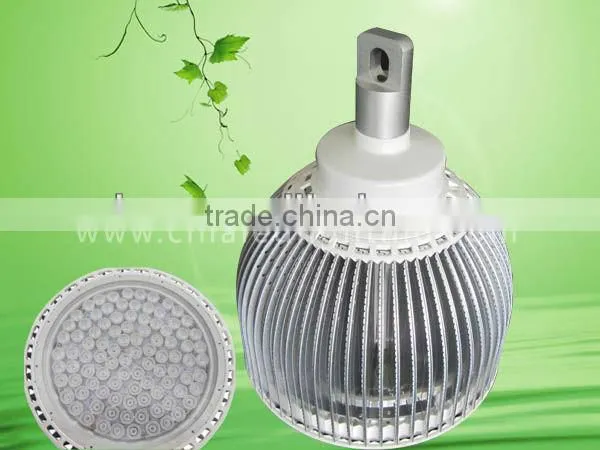

100W Hi-IP LED High Bay Original CREE LED

Name: 100W Hi-IP LED High Bay Original CREE LED
Brand: CINA
SKU: 114228403

100W Hi-IP LED High Bay Original CREE LED thumbnail-1

100W Hi-IP LED High Bay Original CREE LED photo-1

US$ 244.5 - 271.5 MOQ: 2 Pieces

Key Specifications

Get Latest Price

LED Light Source:

Cree

Warranty(Years):

Input Voltage(V):

85-265VAC

Contact Supplier Request Quote Chat Now

Shenzhen Cina LED Lighting Tech Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Cree

Warranty(Years) 3

Input Voltage(V) 85-265VAC

Lamp Power(W) 100

Lamp Luminous Flux(lm) 9000-10000

Lamp Luminous Efficiency(lm/w) 90

Color Temperature(CCT) Cool White

Working Temperature(℃) -40, +70

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE, EMC, FCC, PSE, UL

Place of Origin Guangdong, China

Brand Name CINA

Model Number CA-HBXW10-100W

Specifications

1. Quality Waterproof Driver (Taiwan Meanwell driver)
2.High-performance Original CREE LED( Made in USA )

Special Feature :

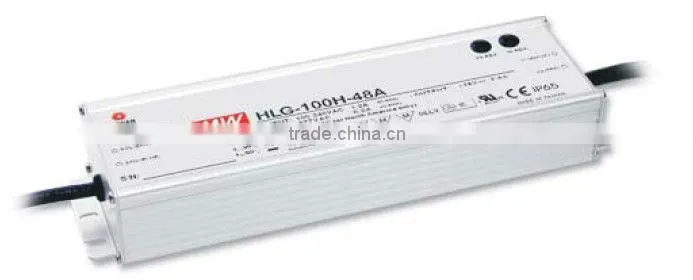

1. Quality Waterproof Driver (Taiwan Meanwell driver)

A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>90%

D, UL, TUV, PSE compliance

E, Full protection: short circuit , over voltage , over current and over temprature

2. High-performance Original CREE LED( Made in USA ) and perfect wiring design

It has High CRI and High lumens and high reliablity . Even if one led failed, the remaining LEDs will still work.

3, Safety

A, CE, RoHS, PSE, FCC, IP65

B, EMC approved ( No interfere )

C, IP65 approved ( Water proof )

D, EN 62471 (Photobiological Safety)

E, 4000V Hi-pot test pass

4,Warranty Policy

3 years warranty with free collection and free delivery . For any defects, we will solve it by either reparing any defective parts or replacing a new LED high bay. ( For more details , please ask for Warranty Statement)

5,Low Light Loss

The light source is the low light loss and high bright LED, in which the loss is less than 5% for every 10,000 hours. The aluminum back side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.

6,Environment-Friendly

While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance, such as Lead and Mercury.

7,Anti-vibration

Solid-state device. Can withstand Moderate vibrations

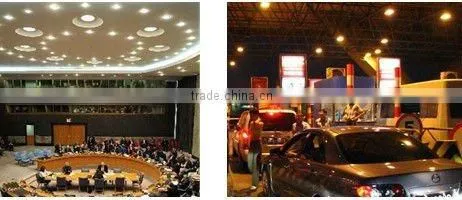

Application:

1.Workshop,warehouse lighting

2.Convention center hall lighting

3.Super market lighting

4.Petrol station lighting

5. Airport lighting

6.Sports stadium lighting

7.Road toll gate lighting

8.Yard/garden/park lighting

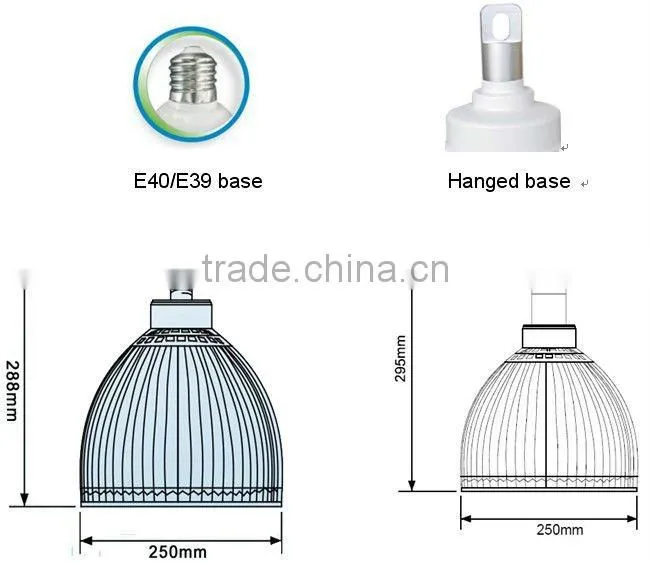

Drawing :

Technical Specification:

Item NO.	CA-HBXW10-100W
Power consumption	100W±10%
Replacement:	250-300W HPS
Working Voltage	85-265VAC , 50Hz/60Hz
Color Tempreture	3000-6500K (Warm White Nature white ,Cool White available )
LED brand	Original CREE LED
Luminous Efficacy	90Lm/W
Luminous flux	9000-10000Lm
Beam Angle	60 /120 Degree
IP Class	IP65
Rated lifetime	50,000Hrs
Working Temperature	-40~+70°C
Power Efficiency	>90%
Power factor	>0.95
Net Weight	3.5KGS

Luminous uniformity	>0.7
Lamp size	250mmX250mmX288/295mm
Material	Aluminum

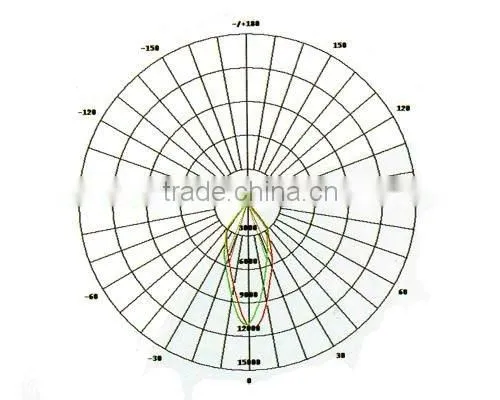

Light distribution Curve ( IES File available, please contact us )

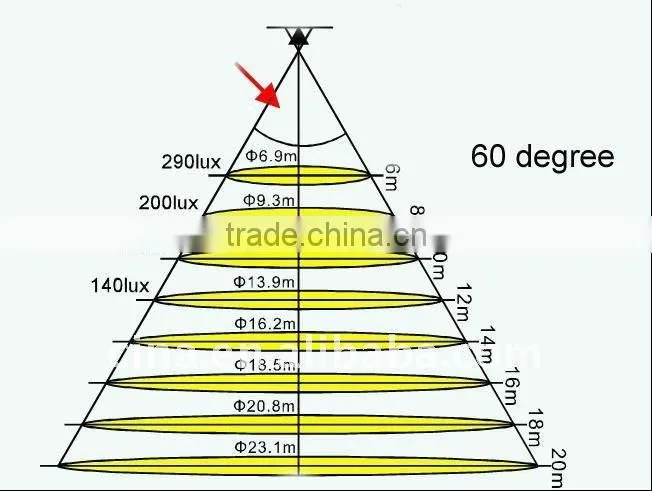

Illuminance Test:

Packing Details:

Part No.	Item Size	Packing Qty		Gross Weight	Carton Size(LWH)
CA-HBXW10-100W	250X250X288/295mm		1Pcs	4.5kg	280×280×290mm

Caution & Warning

1.Indoor or outdoor use.

2.Work under the rated voltage.

3.Please operate in the right way when you install the LED high bay in case to avoid the power harm and body harm.When installing,please not the short-circuit protect.

4.Non-dimmable.

5.If any doubt about the installation or use of this product, consult a competent electrician or technician .
