Specifications
1.Taiwan Meanwell driver ,3 years warranty2.CREE LED
3.CE, RoHS, PSE, FCC, C-TICK, IP65
4.Energy saving,
5.Ra>75
Special Feature:

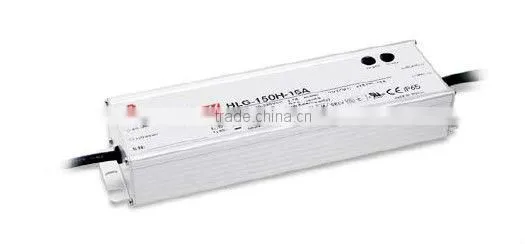

1. Quality Waterproof Driver with 3-year warranty (Taiwan Meanwell driver)
A, High EMC, no interfere
B, Power factor>0.95
C, Power Efficiency>90%
D, UL, TUV, PSE compliance
E, Full protection: short circuit, over voltage, over current and over temprature
2. High-performance Original EDISON LED(Made in TAI WAN) and perfect wiring design
It has High lumens and high reliability. Even if one led failed, the remaining LEDs will still work.
3, Safety
A, CE, RoHS, PSE, FCC, C-TICK, IP65
B, IP65 approved (Water proof)
C, 4000V Hi-pot test pass
4,Warranty Policy
3 years warranty with free collection and free delivery. For any defects, we will solve it by either repairing any defective parts or replace a new LED flood light. (For more details, please ask for Warranty Statement)
5. Energy cost saving
For its higher luminous efficacy up to 100Lm/w,,60-70% energy cost saving compared to the traditional HPS Lamps.
6. Instant ON/OFF operation
This is one of the superior features of LED lightings. You don’t need to wait for any second.
7. Low Light Loss
The light source is the low light loss and high-bright LED, which the loss is less than 5% in 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slow down light loss.
8. Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Lead and Mercury.
9. High-brightness
Large-size square LED chip, and the light transmittance efficiency of the PC-cover can reach 95%.
10. Anti-vibration
Solid-state, anti-vibration,not easy to be broken.

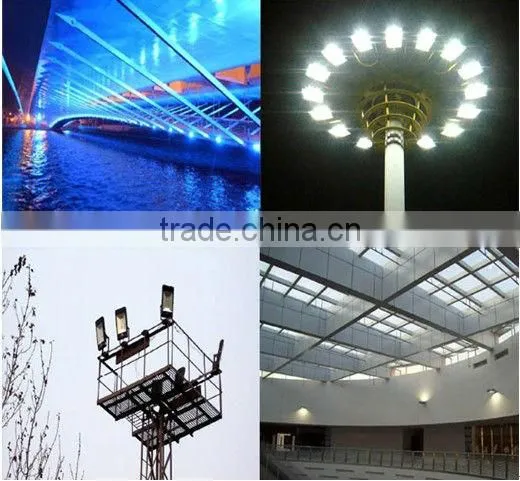

Application
n Recreation area lighting
n Warehouse lighting
n Sign lighting
n Building lighting
n Car park lighting
n Perimeter fence lighting
n Street lighting
n Gas station lighting

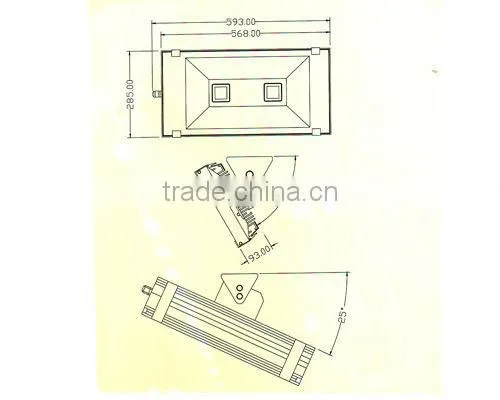

Drawing:
Technical Specification:
Product Code |
CA-FLW14-140W |
Waterproof Rate |
IP65 |
Total Power Comsuption |
140W±10% |
Input Voltage |
85-265VAC |
Input Frequency |
47-63Hz |
Light Source |
CREE LED |
lumen |
11200-12600Lm |
Luminous Efficiency |
80Lm/W |
Beam Angle |
140 degree |
LED Color |
Warm white, Cool white |
Color Temp(K) |
3000K±300,5700K±500 |
CRI |
Ra>75 |
LED Lifespan |
40000Hrs |
Operating Temp |
-40°C to +55°C |
Working Humidity |
0-95% |
Alu Shell Color |
Silver(Standard) Black(On request-MOQ 10 ) |
Product Size(mm) |
593x285x93 |
Packing Size(mm) |
600x310x130 |
Weight |
11.5kg |

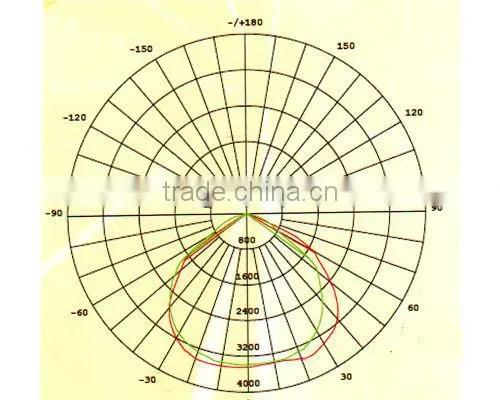

Light distribution Curve (IES File available, please contact us)

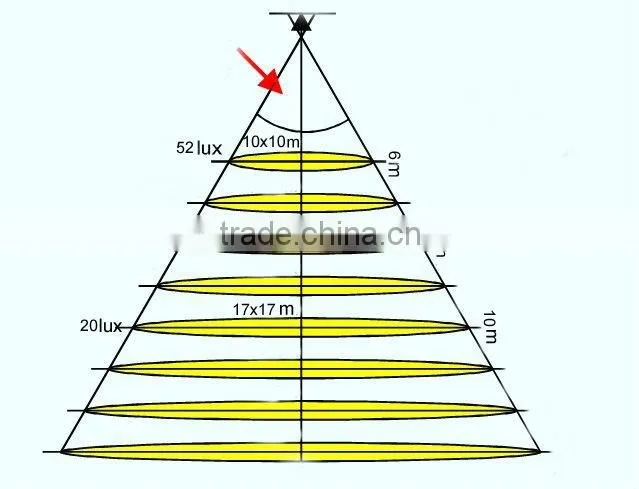

Illuminance Test:
Packing Details:
Part No. |
It em Size |
Packing Qty |
Gross Weight |
Carton Size(L*W*H) |
CA-FLW14-140W |
593x285x93mm |
1Pcs |
11.5kg |
600x310x130mm |
Caution & Warning:
1. To ensure the feature of water resistance, unauthorized person is not allowed to disassemble flood light construction.
2. The safety operating temperature is -40°C to +55°C. Make the product work in the circumstances with this temperature range. Otherwise the product will break down or components inside may have a shorter lifespan. The average temperature on the product body is 40-50 deg.Celsius. It is suggested the product is installed beyond the hand touch on the metal body.
3. Don’t give a stress on the front surface of the glass with more than 0.2MPA/m2
4. Please make sure the electricity is powered off before the maintenance.
5. If any doubt about the installation or use of this product, consult a competent electrician or technician.
