MV2271D - MILLI VOLTAGE METER

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

MCP

Model Number:

MV2270D

Shanghai MCP Corp.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name MCP

Model Number MV2270D

Display Type Digital Only

Measuring Range 30 μV~100V

Accuracy Class ±3%

Dimensions 140mm x 200mm x 280mm

Specifications

.Measure frequency of sine wave from 20kHz to1000MHz
.Measure voltage from 800uV to 10V
.Digital display
.Voltage meter

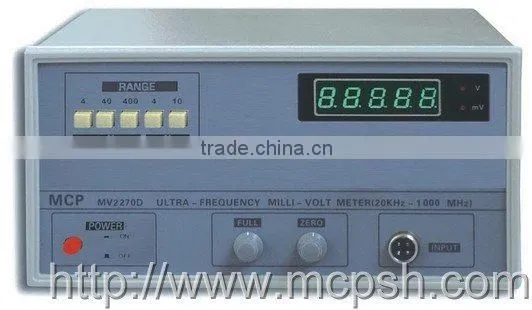

MV2271D - MILLI VOLTAGE METER

Features

.Measure frequency of sine wave from 20kHz to1000MHz
.Measure voltage from 800uV to 10V
.Digital display

MV2270/MV2270D
Input voltage range	800μ~10V of full scale 5 steps
Input decibel range	-50dB~ +33dB 8steps
Voltage accuracy (Reference 100kHz)	±3% of full scale ( less than 10mV) ; ±3% of full scale ( above 10mV)
Frequencyresponse (Reference100kHz)	±3% (100kHz ~ 50MHz), ±10% (200kHz ~ 600MHz),15% (600MHz ~ 1000MHz)
Decibel accuracy (Reference100kHz)	±2.5dB (above 10dB), ±3.5dB (less than 10dB) ±5dB (less than -20dB)
Input capacity	≤2.5pF
Overload voltage	15V(100kHz)
SWR of coaxial T adapter	≤1.35(at 1000MHz )
Power supply	110 ~ 127VAC±10%/220 ~ 240VAC±10%, 50Hz±2Hz/60Hz±2Hz
Weight	5kg
Dimensions (WxHxD)	140mm x 200mm x 280mm
Accessories	one operation manual, one power cord, one fuse, one detector
