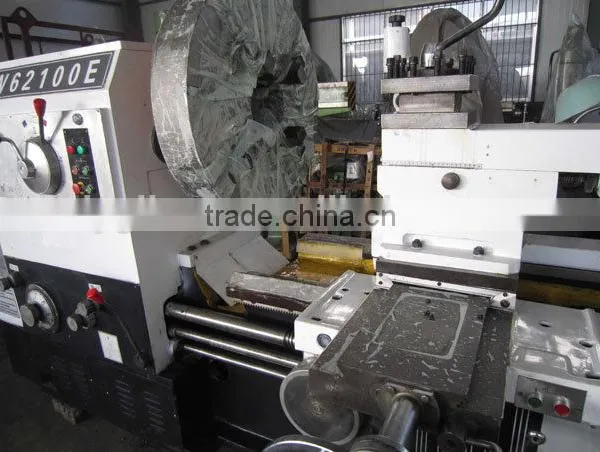

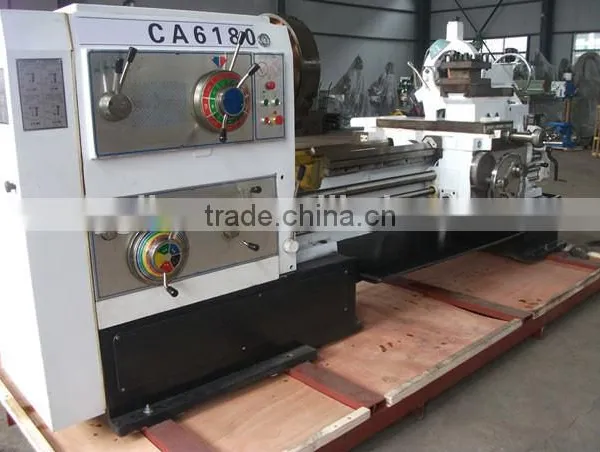

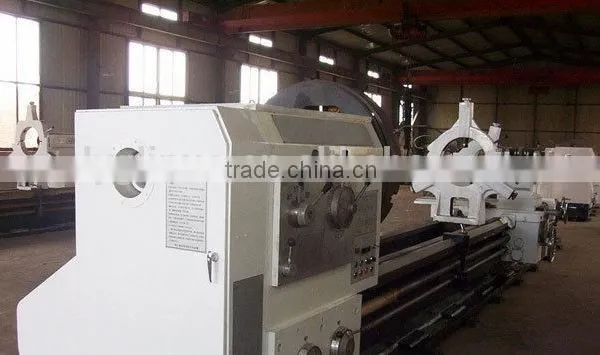

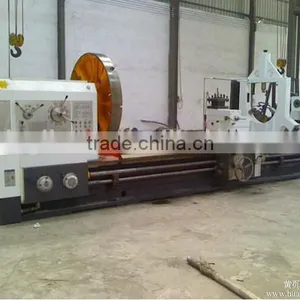

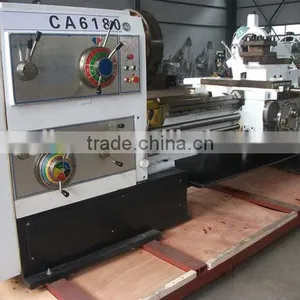

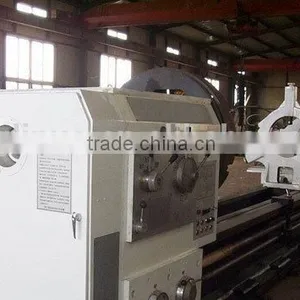

CW6163 CW6180 CW61100 CW61125 Conventional Horizontal Heavy Lathe Machine

Name: CW6163 CW6180 CW61100 CW61125 Conventional Horizontal Heavy Lathe Machine
Brand: linuo
SKU: 114840097

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter 1000mm

Place of Origin Jiangsu, China

Brand Name linuo

Model Number CW61100*6000

Voltage 380V 50Hz

Power(W) 11kw

Dimension(L*W*H) 8000*1170*1250mm

Weight 7400kg

Certification CE, ISO9001

After-sales Service Provided Engineers available to service machinery overseas

CW6180 CW61100 CW61125 conventional horizontal heavy lathe machine

Bed width 600mm and spindle bore 105mm

MODEL	CW6163		CW6180(A)	CW61100(A)	CW61125(A)
	CW6263		CW6280(A)	CW62100(A)	CW62125(A)
CAPACITY
Max.swing over bed	630mm		800mm	1000mm	1250mm
Max.swing over gap	800mm		1000mm	1200mm	1400mm
Max.swing over cross slide	345mm		480mm	680mm	680mm
Center distance	1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m
Width of bed	600mm
HEAD STOCK
Spindle hole	105mm (130mm)
Spindle taper	120mm 1:16
Spindle speeds	0.75-1000r/min			7-720r/min
GEAR Box-threads&feeds
Metric threads mm	1-240mm (52)
Inch threads TPI	1-14 (26)
Moudle threads mm	0.5-120mm (53)
Diametral threads DP	1-28 (24)
Longitudinal feeds range	0.1-24.3mm/r
Cross feed range	0.05-12.15mm/r
Rapid feed:long/cross	4000mm/min,2000mm/min
TOOL-POST
Tool section	32*32mm
CARRIAGE
Cross slide travel	370mm			430mm
Compound rest travel	200mm(A Auto feed 170mm)
TAILSTOCK
Sleeve diameter	100mm			120mm
Sleeve taper	Morse 6#
Sleeve travel	240mm
STEADY REST
Steady rest	20-200mm
Follow rest	20-100mm
MOTOR
Main motor	11kw
Rapid feed motor	1.1kw
CW6163.Net weight(kg) Dimention(LWH)	1000mm 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm 8000mm 10000mm 12000mm	4400kg 4700kg 5000kg 5600kg 6200kg 6800kg 7400kg 8800kg 10200kg 11500kg		300017101250mm 350011701250mm 400011701250mm 500011701250mm 600011701250mm 700011701250mm 800011701250mm 1000011701250mm 1200011701250mm 1400011701250mm
