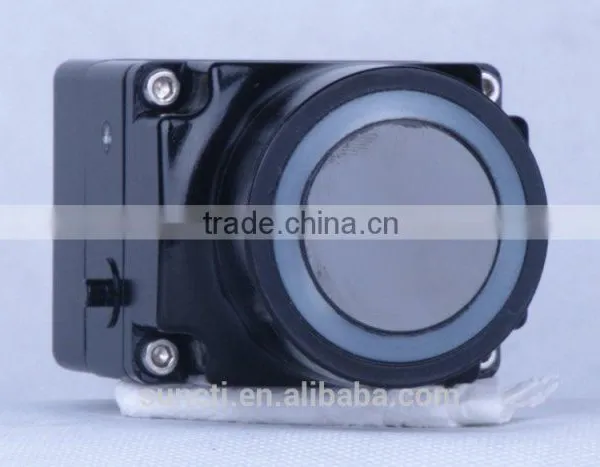

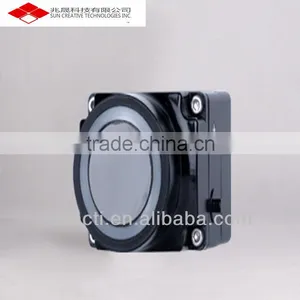

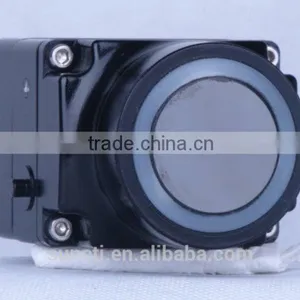

VS100 Vehicle Utility Thermal Imaging Camera/infrared Thermal Imager/infrared Imaging Camera

Name: VS100 Vehicle Utility Thermal Imaging Camera/infrared Thermal Imager/infrared Imaging Camera
Brand: SCTI
SKU: 115135905

US$ 1 - 9,999 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

SCTI

Model Number:

vs100

Sun Creative Zhejiang Technologies Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name SCTI

Model Number vs100

Size 62*62.5*89mm

Weight 500g with bracket

Type Other, infrared/thermal imaging module

Magnification x2,x5

Effective Visual Distance 48m~13800m

Operating Voltage +8V~+15V

Items	Technical specification
Detector characteristic	Detector	Uncooled FPA
	Array format/Pixel pitch	384x288/25um
	Sensitivity	≤60mk@ 300K,50HZ
	Frame rate	50Hz
	Spectral range	8~14um
	Lens	18.8mm F#=0.9
	FOV	28.6°(H) x21.45°(V)
	Focus	Fixed focus(Athermalization)
Image process	Nonuniformity	No shutting technology
	Instantaneous boot	<3s
	Noise reduction	Digital filter
	Image Gain	Auto adjust(White hot)
	Image display format	768X576(CCIR)
Power	Working voltage range	DC: +6V~+15V
	Typical working voltage	DC: +12V
	Power consumption	1W(Steady state,No defrosting heating)
	Reverse voltage protection	Yes
	Over voltage protection	Yes
	Surge voltage protection	Maximum DC80V,Duration 2S
Environmental parameter	Working temperature range	-40°C~+60°C
	Storage temperature range	-45°C~+65°C
	Humidity	5%~95% Non condensing
	Encapsulation	IP67
	Shock	GJB150-16,2.3.1
	Vibration	GJB150-18 Experiment 5
Physical parameter	Weight	300g(with bracket)
Physical parameter	Dimension	73x56x45mm(without bracket)
Interface and accessories	Cable	3 meters water proof cable with power and video output
Interface and accessories	TFT-LCD	7 Inches(Optional)
