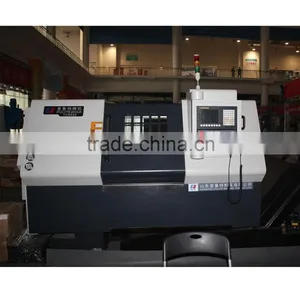

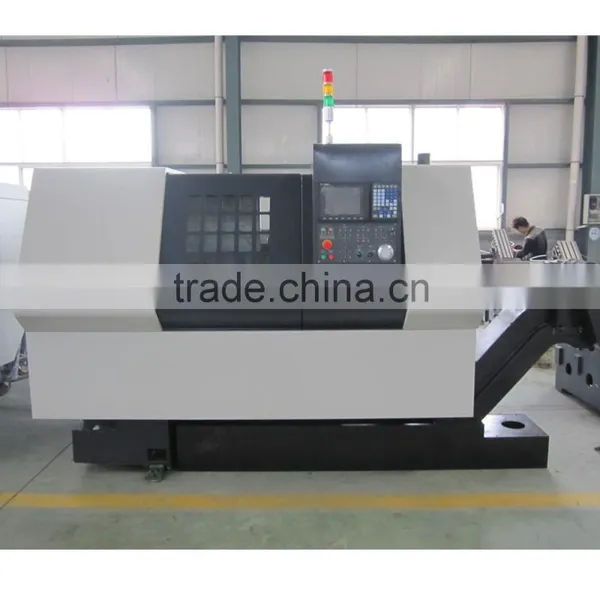

Help CenterSlant Bed CNC Lathes TCK550x750mm Hiwin Linear 30-degree
Related Products
-
Slant Bed CNC Lathes TCK500 Hiwin Linear 30-degreeNegotiableMOQ: 1 Set -
Slant Bed CNC Lathes Economic Types TCK520 Linear 30-degreeNegotiableMOQ: 1 Set
-
CK6130 CNC Lathe MathineNegotiableMOQ: 1 Set
-
Taiwan Hiwin PMI Linear Guieds CNC Lathes H6240 H36 H46 H6236NegotiableMOQ: 1 Set
-
Taiwan Linear Slant Bed CNC Lathes With Live Tools Power Tools TCK6336SLNegotiableMOQ: 1 Set
Slant bed CNC Lathes
Heavy duty, high precision, economic types are avail from professional manufacturer in Shandong prov., China

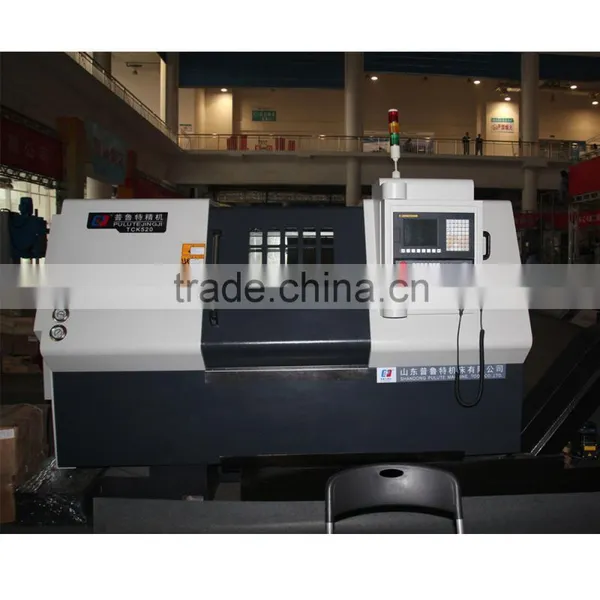

TCK420 TCK500 TCK520 Slant-Bed linear CNC Lathe, 30 degree
1. SPECIFICATION
Model |
|
TCK420x400 |
TCK550X750mm |
Swing over bed |
mm |
Φ420 |
Φ550 |
Swing over cross slide |
mm |
Φ270 |
Φ320 |
Max truning length |
mm |
400 |
750 |
Chuck size |
inch |
8″ |
10″ hydraulic hollow |
X axis travel |
mm |
180 |
220 |
Z axis travel |
mm |
400 |
500 |
Spindle speed max |
rpm |
3000rpm |
2500rpm |
|
|
speedless |
speedless |
Spindle taper(nose) |
|
A2-6 |
A2-8 |
Spindle bore |
mm |
Φ66 |
Φ80 |
Bar capacity |
mm |
Φ50 |
Φ60 |
Rapid speed |
m/min |
12 |
15/20 |
Feeding rate |
mm/min |
1-15000 |
1-15000 |
X/Z motor torque |
NM |
6 |
6 |
Main motor |
KW |
5.5 |
7.5 servo |
Tool-holder size |
mm |
20×20 |
25×25 |
Tool post |
|
8-tool hydraulic turret |
8-tool hydraulic turret |
Tailstock travel |
mm |
350 |
350 |
Tailstock taper |
|
MT4# |
MT5# |
Tailstock sleeve travel |
mm |
90 |
100 |
X/Z positioning accuracy |
mm |
0.022/0.022 |
0.022/0.022 |
X/Z repositioning |
mm |
0.006/0.006 |
0.006/0.006 |
Power supply |
KVA |
11 |
15 |
Water box |
L |
90 |
100 |
Machine size |
mm |
2300×1500×1650 |
3000×1600×1700 |
Weight |
KG |
3000 |
5200 |
2. FEATURES
Taiwan high accuracy HIWIN linear, Taiwan famous brand ball screw

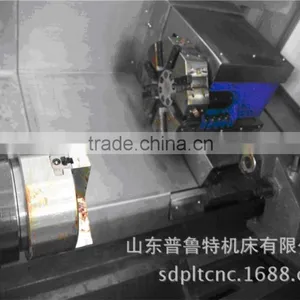

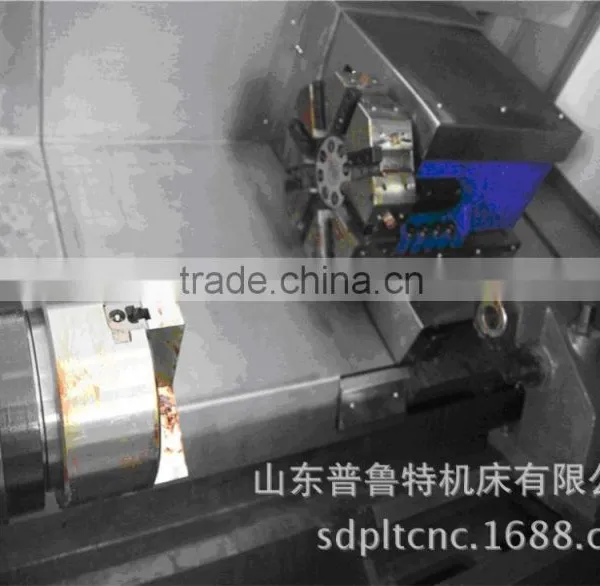

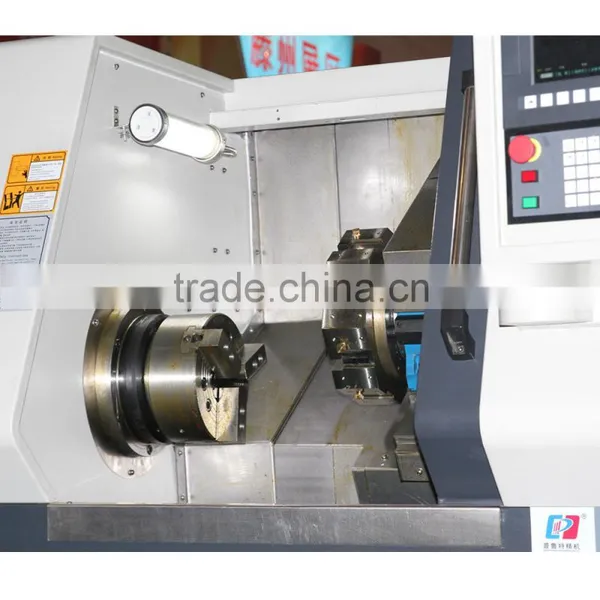

hydraulic turret, hydraulic chuck , hydraulic tailstock, thru-hole type rotary cylinder
3.STANDARD ACCESSORIES
GSK980TDC or Siemens 808D controller
Servo main motor 5.5 kw , 8 station hydraulic turret
8" thru-hole type hydraulic chuck, hydraulic tailstock
lubrication system
coolant system
lighting system
5. Custom-making, OEM services are avail upon request.
