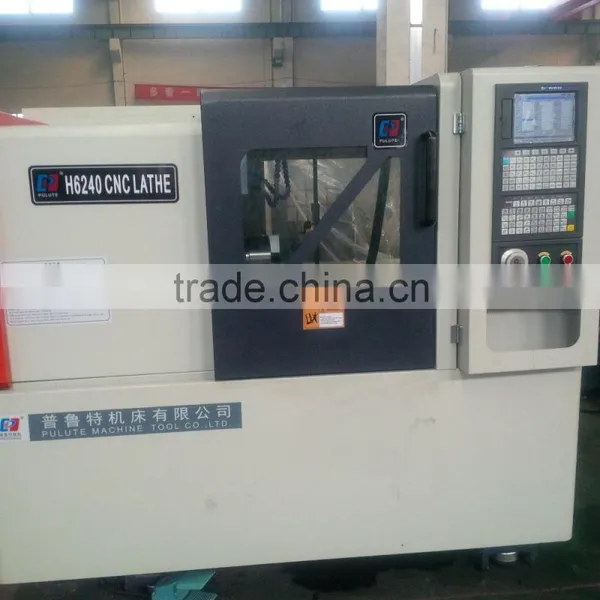

Taiwan Hiwin PMI Linear Guieds CNC Lathes H6240 H36 H46 H6236

Name: Taiwan Hiwin PMI Linear Guieds CNC Lathes H6240 H36 H46 H6236
Brand: PULUTEK
SKU: 115200445

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Shandong Pulute Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 400mm

Place of Origin Shandong, China

Brand Name PULUTEK

Model Number H6240

Voltage 200/380V

Power(W) 3.7/5.5KW

Dimension(L*W*H) 2550*1340*1710mm

Weight 2200/2500KG

Certification ISO CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

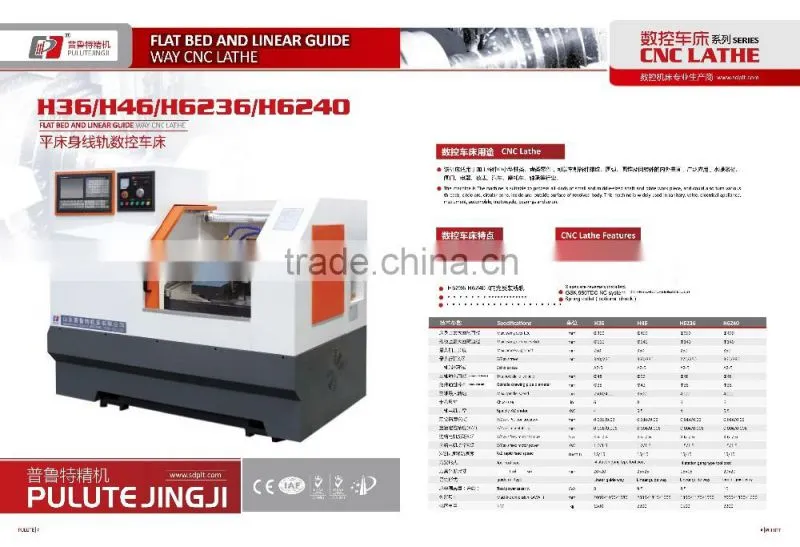

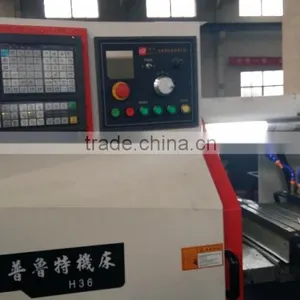

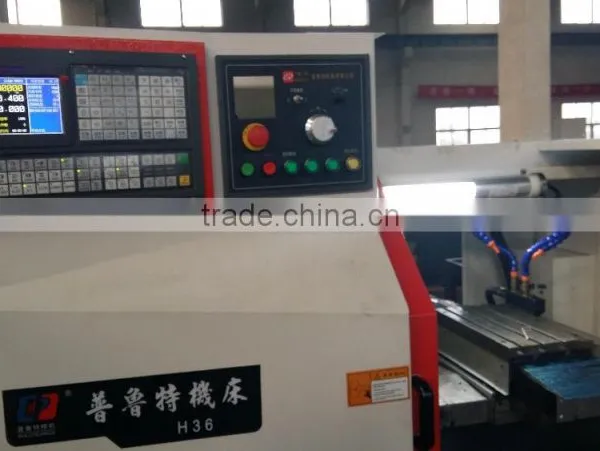

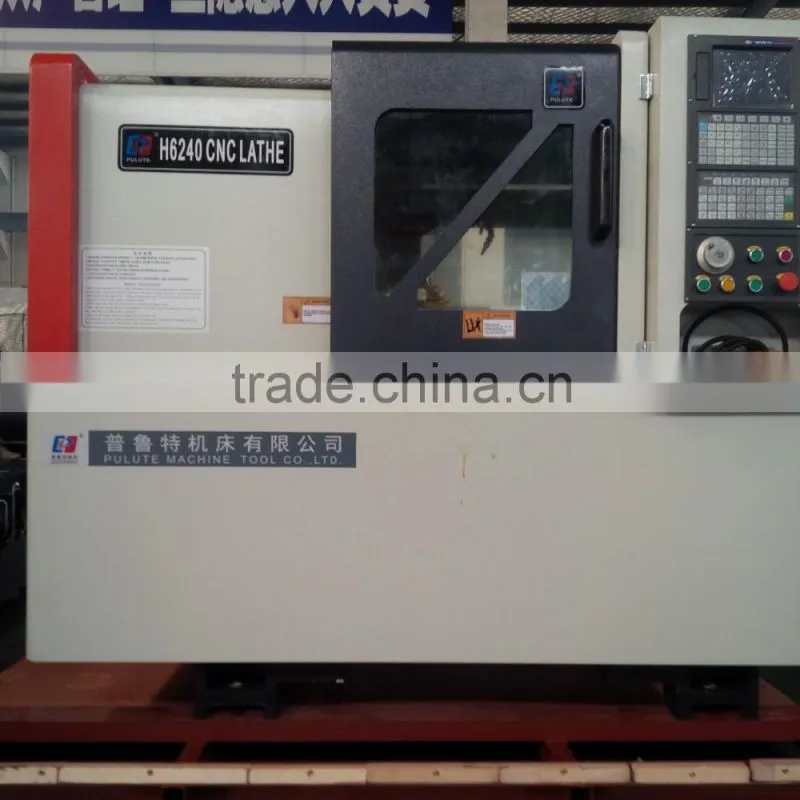

Taiwan Linear guides CNC Lathes, H6240 H46, H36, H6236

Flat bed CNC Lathe, Taiwan Hiwin PMI Linear guides

CNC machinery	H6240	H36	H6236
Max. swing over bed	400mm	360mm	360mm
max. swing over slide	140mm	140mm	140mm
Max turning length	350mm	250mm	250mm
X axis	360mm	340mm	270mm
Z axis	380mm	250mm	250mm
Guideway	Taiwan Hiwin Linear	Taiwan Hiwin Linear	Taiwan Hiwin Linear
Spindle speed	4000 rpm	2500/4000 rpm	4000/2500 rpm
Spindle bore	48 mm	48 mm	48 mm
Max. Bar capacity	38 mm	38 mm	38 mm
Rapid traverse	15m/min	15m/min	15m/min
Main motor	5.5KW	4KW	4KW

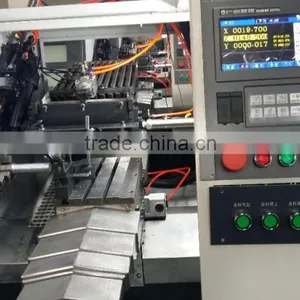

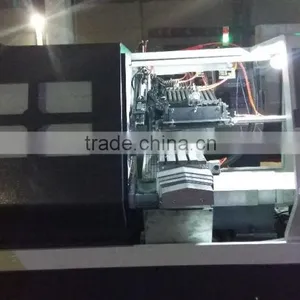

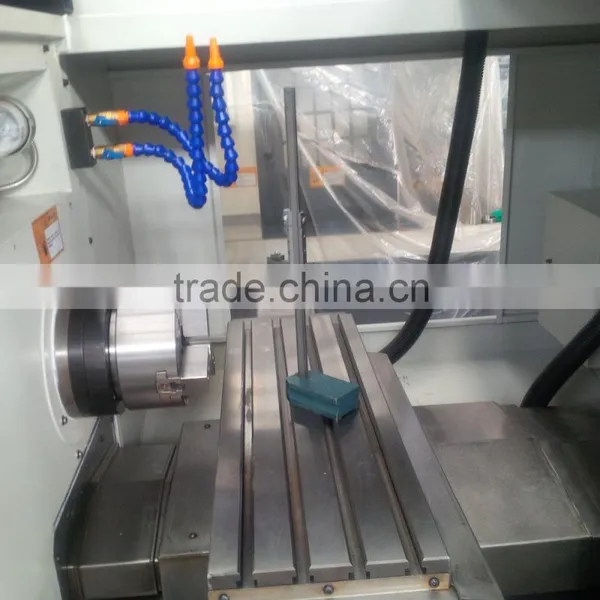

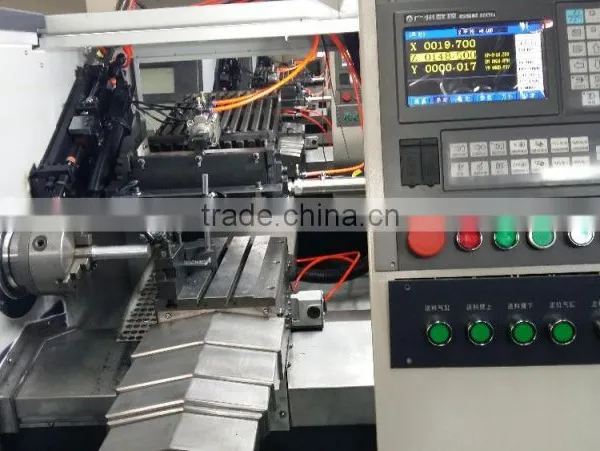

Tools	Gang tool, 8-tool hydraulic turret	Gang tool, 8-tool hydraulic turret	Gang tool, 8-tool hydraulic turret
x/z position accuracy	0.016/0.02mm	0.016/0.02mm	0.016/0.02mm
x/z re-positioning	0.006 mm	0.006	0.006mm
machine dimension	210014001710mm	190013401710mm	210013401710mm
Weight	2100kg	1500kg	1500kg
