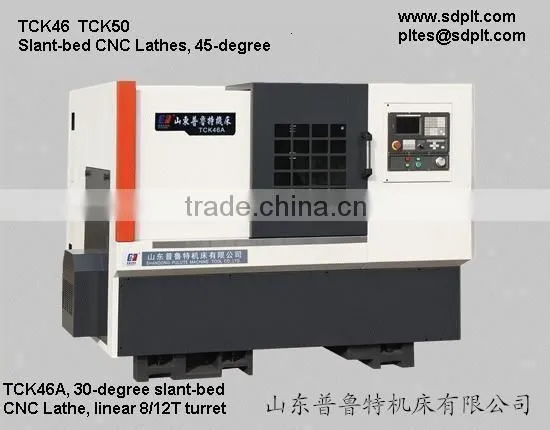

30-degree Slant bed CNC Lathes, TCK46A

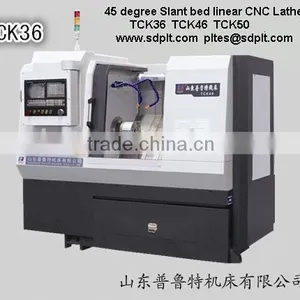

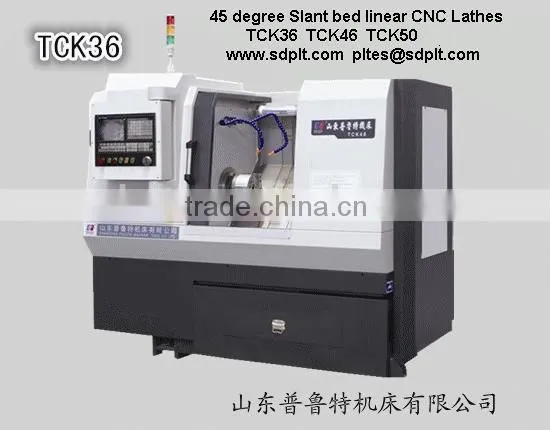

TCK46 SLANT BED CNC LATHE 45-degree

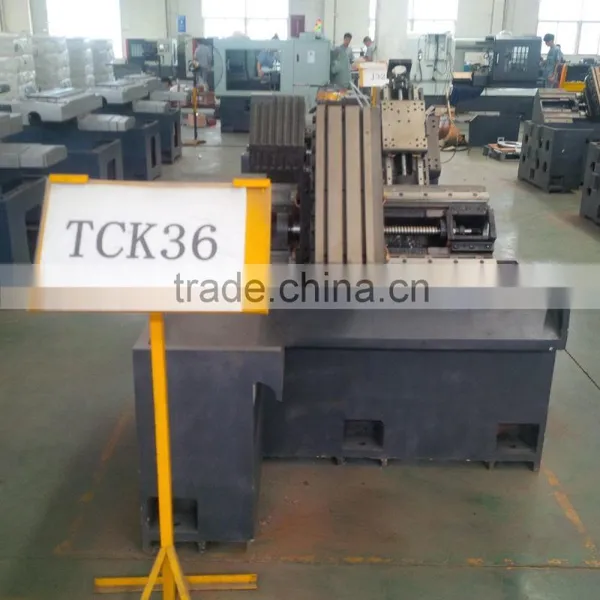

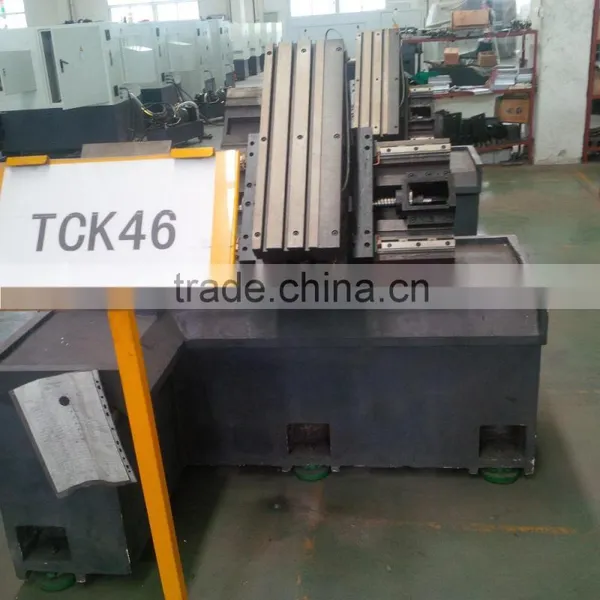

Linear guideway, bed and base from one piece castings
(Master-piece, High-performance, High-precision)
1. SPECIFICATION
|
unit |
TCK46 |
Max. swing over bed |
mm |
Φ460 |
Max. swing over carriage |
mm |
Φ170 |
Max. turning length |
mm |
350 |
X/Z axis travel |
mm |
240/400 |
Spindle unit |
|
Φ170 |
Spindle nose |
|
A2-5(A2-6 optional) |
Spindle bore |
mm |
56 |
Spindle drawing pipe diameter |
mm |
45 |
Spindle speed |
rpm |
3500 |
Spindle motor |
kw |
5.5 |
X/Z axis motor torque |
NM |
7.5/7.5 |
Guide type |
|
Taiwan linear guide way |
N.W. |
KG |
2600 |
2. FEATURES
30-degrees slant bed
Higher rigidity cast iron

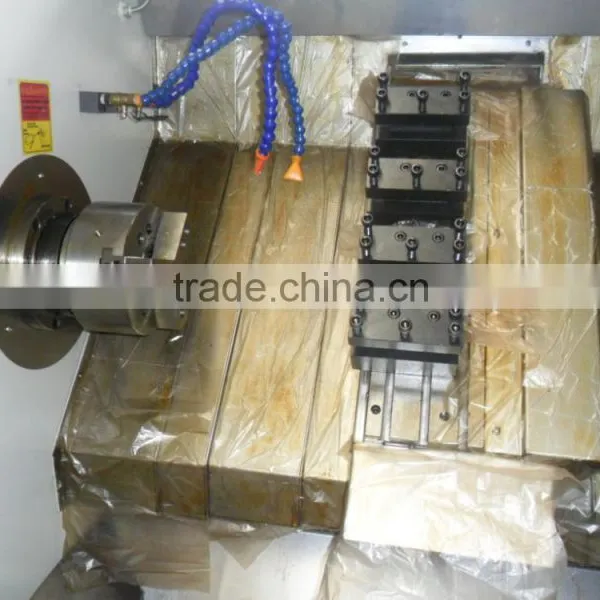

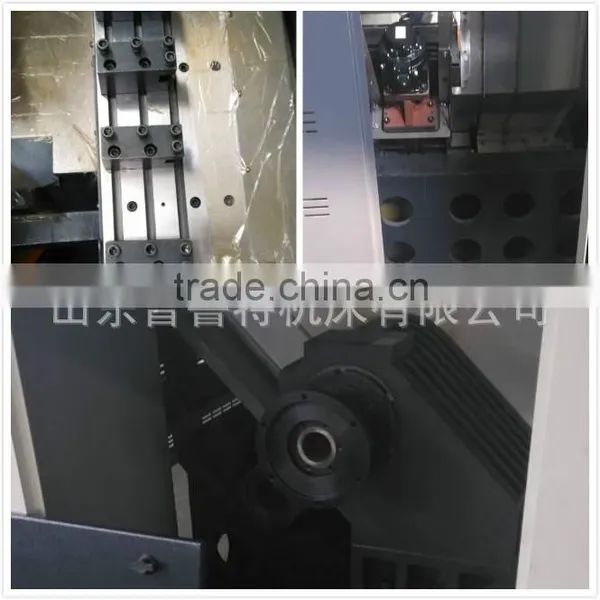

Higher accuracy Taiwan HIWIN linear
Integrated automatic lubrication system
Removable hidden type hydraulic tailstock
8 /12 station hydraulic turret
Screw pre-stretching structure
3. USAGE
This machine is mainly used for processing various shaft, disk parts. It can turn various screw head, the surface of arc, cone, rotary body. Its higher speed could meet the higher speed processing
requirement of ferrous and non-ferrous metal.
It could turn the car, motorcycle, electronics, aerospace, military parts with higher efficiency, larger quantity and high precision. Its machining precision could reach level IT7.
4. STANDARD ACCESSORIES
GSK980TDC or Siemens 808D NC system
servo motor 7.5 kw
8 station hydraulic turret
8" domestic thru-hole type hydraulic chuck
5. OPTIONAL ACCESSORIES
NC System: KND1000Ti, Fanuc Oi Mate-T
Main Motor: Servo 11/15 KW
Inverter 11 KW
8-station electric turret, 12-station hydraulic turret
Manual Chuck,:
8-station electric turret
Chuck: 8″ Non-through hole hydraulic chuck
8″ Non-through hole hydraulic chuck (Taiwan)
8″ through hole hydraulic chuck(Taiwan)
10″ Non-through hole hydraulic chuck (Taiwan)
10″ through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Without tailstock
Ply wood cases, or per customers.
One year warranty.
We're professional manufacturer, so quality, competitive prices, favorable services, cost-effective parts, prompt delivery are avail for you.
If any questions, pls feel free to contact us by e-mail, telephone/cellphone,fax,etc.
