CH6236F Universal Lathe Machine

CH6236F Universal Lathe Machine thumbnail-1

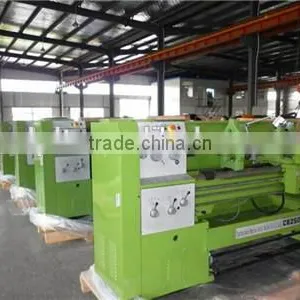

CH6236F Universal Lathe Machine thumbnail-2
CH6236F Universal Lathe Machine thumbnail-3
CH6236F Universal Lathe Machine thumbnail-4
CH6236F Universal Lathe Machine photo-1

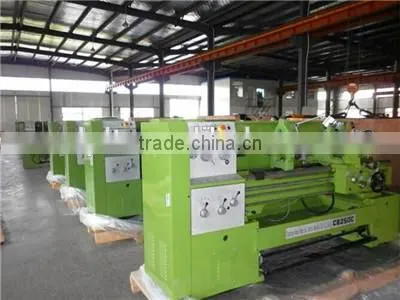

CH6236F Universal Lathe Machine photo-2
CH6236F Universal Lathe Machine photo-3
CH6236F Universal Lathe Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Shandong Pulute Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 360mm
Place of Origin Shandong, China
Brand Name pulute
Model Number CH6236F
Voltage 380V
Power(W) 4KW
Dimension(L*W*H) 288*115*1650cm
Weight 2050kg
Certification CE, ISO9001, ISO14001
After-sales Service Provided Engineers available to service machinery overseas

universal lathe machine

CH6236F universal lathe machine

 1.  universal lathe machine specifications



capacity

universal lathe machine

  CH6236F

Swing over bed

360mm

Swing over cross slide

190mm

Max.swing over gap

520 mm

Effective length of gap

200 mm

Center Distance

750mm/ 1000mm/1500mm

Bed Width

360 mm

head stock

Spindle hole

52 mm

Spindle nose

ISO-C6 or D6

Spindle taper

MT6#

Spindle speed(Number)

(9steps)40-1400rpm

threads

Longitudinal feeds range

55kinds 0.021-0.592mm/rev

Cross feeds range

55kinds 0.015-0.375mm/rev

Metric threads range

17kinds 0.25-7mm

Inch threads range

30kinds 5-144inch

Module threads range

12kinds 0.25-3.5mπ

Diametric threads range

30kinds 10-288D.P

carriage

Max. Travel of top slide

95 mm

Max. Travel of cross slide

180 mm

Max. Size of tool shank

20*20 mm

tailstock

Dia.of tailstock sleeve

65mm

Taper of tailstock sleeve

MT4

Max.travel of tailstock

140mm

motor

Main drive motor

4KW

Coolant pump motor

125W

Dimension

750mm CH6236F

225*115*165cm

1000mm CH6236F

245*115*165cm

1500 mm CH6236F

288*115*1650cm

weight

750mm   NW/GW

1400/1800kg

1000mm  NW/GW

1500/1900kg

1500 mm  NW/GW

1650/2050kg



2.ISO9001, CE, ISO14001 certificates for all of our machine tools

 CH6236F universal lathe machine

3.Package for our machine tools

CH6236F universal lathe machine

CH6236F universal lathe machine

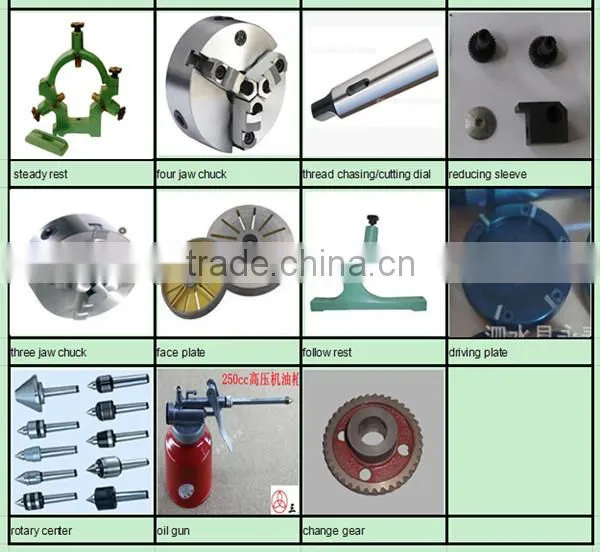

4. Standard accessories of universal lathe machine

CH6236F universal lathe machine

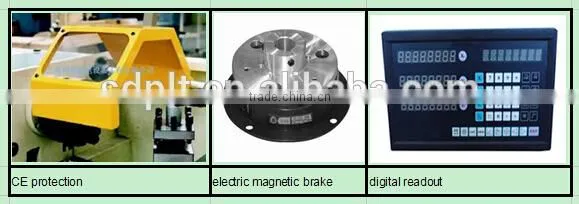

5.Optional accessories of universal lathe machine





Click SEND now and get the latest price.

CH6236F universal lathe machine
