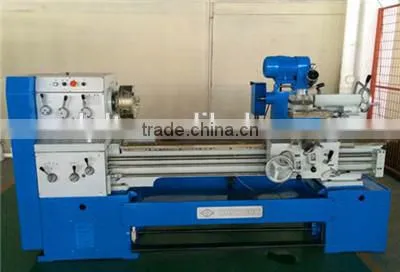

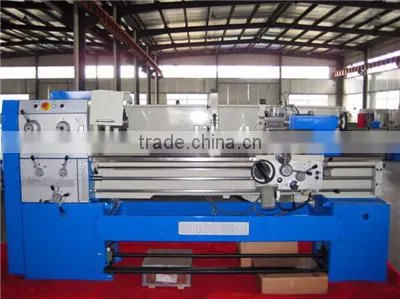

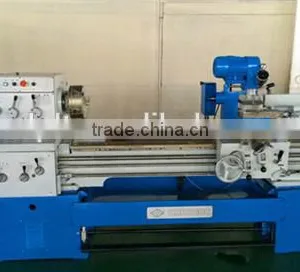

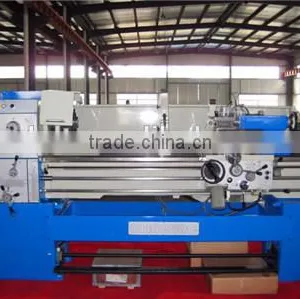

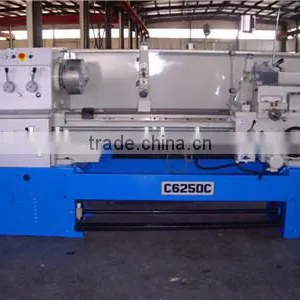

Help CenterCH6260D Manual Turning Machine
Related Products
manual turning machine
1. CH6260D manual turning machine specifcation
Larger spindle bore 103 mm;
Bed rail is VHF hardening and precision grinding , higher rigidity and higher precision.
Head-stock gears are precision grind-ed, lower noise .
Large flat structure,
beautiful appearance ,
Various thread standard.
Left and right hand wheel optional.
capacity |
manual turning machine |
CH6260D |
Swing over bed |
600mm |
|
Swing over cross slide |
325mm |
|
Max.swing over gap |
630 mm |
|
Effective length of gap |
260 mm |
|
Center Distance |
1000mm/1500/2000mm |
|
Bed Width |
330 mm |
|
head stock |
Spindle hole |
103 mm |
Spindle nose |
ISO-C11 or D11 |
|
Spindle taper |
Metric 115 mm |
|
Spindle speed(Number) |
(15steps)20-1200rpm |
|
threads |
Longitudinal feeds range |
66kinds 0.072-4.038mm/rev |
Cross feeds range |
66kinds 0.036-2.019mm/rev |
|
Metric threads range |
66kinds 0.5-28mm |
|
Inch threads range |
66kinds 1-56inch |
|
Module threads range |
33kinds 0.5-3.5mπ |
|
Diametric threads range |
33kinds 8-56D.P |
|
carriage |
Max. Travel of top slide |
130 mm |
Max. Travel of cross slide |
300 mm |
|
Max. Size of tool shank |
25*25 mm-2 |
|
tailstock |
Dia.of tailstock sleeve |
65mm |
Taper of tailstock sleeve |
MT5 |
|
Max.travel of tailstock |
120mm |
|
motor |
Main drive motor |
5.5KW or 7.5KW |
Rapid traverse motor optional |
250W |
|
Coolant pump motor |
125W |
|
Dimension |
1000mm CH6236F |
245*115*170cm |
1500mm CH6236F |
288*115*170cm |
|
2000 mm CH6236F |
345*115*170cm |
|
weight |
1000mm NW/GW |
1950/2450kg |
1500mm NW/GW |
2100/2600kg |
|
2000 mm NW/GW |
2250/2750kg |
2.Standard accessories for this manual turning machine
3.Optional accessories for this manual turning machine
3.Warranty for all of our machine tools
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing
after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine
for customer convenience.
5.We offer best agent price and distributer price.
4.Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
5.ISO9001, CE, ISO14001 certificates for this threading machine
6.Package for all of our machine tools
