ace bed steel forge tution centre
1. VMC7135 ace bed steel forge tution centre specification
ace bed steel forge tution centre |
VMC850 |
Capacity | |
table size |
1050x500mm |
Max. table load |
600kg |
T slot qty-width*distance |
5-18x90 |
Spindle | |
spindle speed |
8000 rpm |
spindle nose to table surface |
105-655mm |
Spindle center to Column surface |
550mm |
Spindle taper |
BT40 |
Main motor power |
7.5/11kw |
Three-axis servo motor power |
2.0/2.0/2.0kw |
box way | |
X axis travel |
800mm |
Y axis travel |
500mm |
Z axis travel |
550mm |
X/Y/Z axis rapid feed |
15/15/12m/min |
Cutting feed speed |
8m/min |
Automatic tool changer | |
Tool changer type |
drum/ hat type (arm type optional ) |
Max. tool length |
350mm |
|
Max. Tool diameter
|
φ100(adjacent tool)/φ150(not adjacent tool) |
Max.tool weight |
8kg |
Tool changing time(tool-to-tool) |
1.8sec |
Accuracy | |
Positioning accuracy |
±0.008/±0.006/±0.006mm |
X/Y/Z axis repeatability |
±0.004/±0.004/±0.004 mm |
Net Weight |
5000 kg |
Overall Dimension |
2780×2450×2700 |

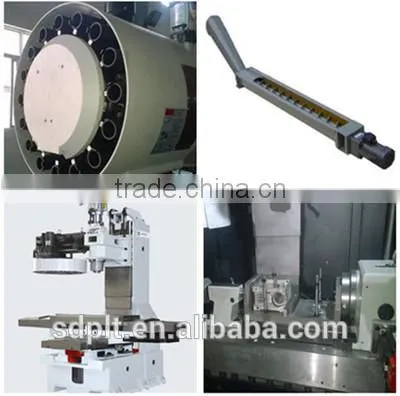

2. VMC7135 ace bed steel forge tution centre accessories
High quality boned/coated sand casting
Taiwan Royal,Taiwan POSA,Taiwan KENTURN
Taiwan HIWIN ball screw and precision locking nut C3 standard
Pressure cylinder
XYZ axis stainless protecting cover for guide way
Domestic brand electric lubrication system including lubrication pump
Domestic brand water coolant system
Domestic brand air coolant pipe and cable
Electric cabinet heat ex-changer
Please click the following send, to learn more details.
