Specifications

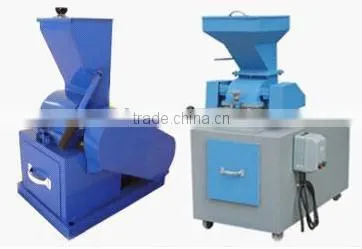

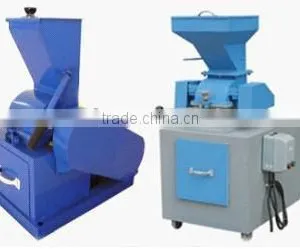

Stone CrusherWith Wheels can take to the working site
High efficient
Sealed structure
General Introduction
GC111 Sealed stone crusher and divider adopts foreign advanced technology, it is a popular sample preparation equipment in lab, it designed based on the basis of GB474-1996 "coal sample preparation methods," and GB/T211-1996 "Determination of total moisture in coal" and also meet the requirement of international standards.
Featues of Stone Crusher
Reasonable and friendly designed, compact structure,
Suitable for high moisture coal
Fast work, high efficiency,
Long service life, easy to operate and maintenance
Fully sealed structure, no dust pollution, stable performance, low noise
Ideal laboratory sample preparation equipment.
Widely used in coal, electricity, metallurgy, chemical, geological and other industries of coal or other moderate-intensity material specimen.
By the National Coal Quality Supervision and Inspection Center and the National Electric Power Company, Shandong, Northwest, Jilin coal for power generation for Quality Supervision and Inspection Center: Sealed hammer crusher qualified the national standards.
Stone Crusher Working Principle:
The crusher using impact crushing method. Because materials will get the centrifugal force from the impact rotor hammer when enter then crushing chamber. Materials will strike and impact the crushing chamber and be broken into small pieces. After then , materials will come out through the screen and come to the division system.
The sample division system is composed of two sample riffle splitter. It will collect finished samples from time to time to make sure all the collected sample can represent the condition of origin materials.
Main Specification:
| Item | unit | HRG 180*150 | HRG 250*360 | ||
| Rotor Diameter: | mm | 180 | 250 | ||
| Rotor Length: | mm | 150 | 360 | ||
| Feeding Size: | mm | <50 | <150 | ||
| Output Size: | mm | <6-1 adjustable | <13-3 adjustable | ||
| Crushing Ratio: | 1/8 | 1/8 | |||
| Capacity: | kg/h | 600-300 | 1800-1100 | ||
| Motor | Power: | kw | 1.5, Y90L-4 | 3, Y100L2-4 | |
| Power: | kw | 0.75, Y90S-6 | 0.75, Y90S-6 | ||
| Speed: | r/min | 1400 | 1400 | ||
| Noise: | dB(A) | <80 | <80 | ||
| Dimension: | mm | 900×760×1300 | 1000×800×1400 | ||
| Weight: | kg | 200 | 400 | ||
