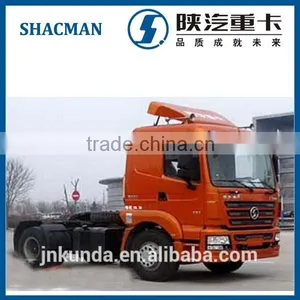

SHACMAN D-LONG F2000 4X2 Tractor Trucks
1.Main configuration
Model |
SX4194NM351 |
||
Max. Towing mass (kg) |
34925 |
||
Kerb mass (kg) |
6945 |
||
Max. laden mass at fifth wheel(kg) |
11925 |
||
Total mass (kg) |
19000 |
||
Max. speed (km/h) |
92 |
||
Min. turning circle (m) |
14.2 |
||
Min. ground clearance (mm) |
325 |
||
Max.gradeability(%) |
28 |
||
Appearance dimensions (mm) |
Max. Length |
6130 |
|
|
Max. Width |
2490 |
|
|
Max. Height |
3610 |
|
Wheel base (mm) |
3500 |
||
Overhang(front/rear) |
1525/1110 |
||
Track width (mm) (front/rear) |
2048/1800 |
||
Engine |
WD618.31 EURII |
||
Output power ps r. p. m |
310 /2200 |
||
Torque N.m r. p. m |
1160 /1300-1500 |
||
Cylinder bore×Engine stroke (mm) |
126×130 |
||
Compression ratio |
15.5:1 |
||
Fuel consumption for 100km (L) |
36 |
||
Fuel tank capacity (L) |
380 |
||
Clutch |
GF420 spring type /GF430 diaphragm type(≥360hp) |
||
Gearbox |
Transmission |
Fuller RT11509C (Fuller 9JS 119/Fuller 9JS135) |
|
|
Gear ratio |
12.42 8.26 6.08 4.53 3.36 2.47 1.81 1.35 1.00 12.99 (R) |
|
Front axle |
MAN V9-75L disc type front axle |
||
Rear axle |
Punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock (Optional single-reduction driving axle) |
||
Frame |
300mm*80mm*8mm(inner: 275mm*70mm*5mm) or 243mm*80mm*8mm(inner: 218mm*70mm*5mm) |
||
Suspension |
Front |
Longitudinal semi-elliptic leaf spring type with telescopic absorber |
|
|
Rear |
Longitudinal semi-elliptic main & auxiliary leaf spring type (Optional single-reduction driving axles ) |
|
Steering |
ZF8098 Integral type power-steering |
||
Cab |
MAN F2000 cab, flat head, double doors, tippable, high |
||
Looking forward to cooperation with you .
If you have any requirements, please contact me freely.
1.We adopt advanced international technology in our trucks, which can assure the driver's satety and the high quality of trucks.
2.Our trucks are designed by world well-known designers, which makes trucks beautiful and comfortable. Drivers can enjoy the driving.
3. We can offer you trucks with excellent quality and reasonable price.
4. We can provide you with professional service.

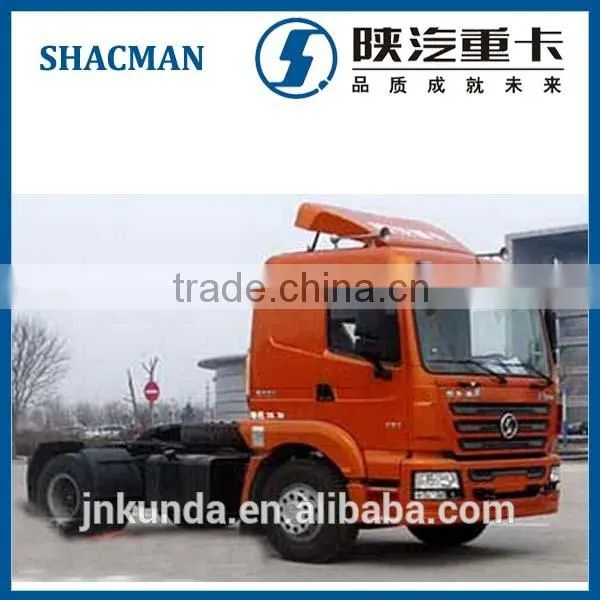

2.pictures
