Specifications
1.Extruded aluminum pipe/evaporator tube2.carbon steel/stainless steel is ok
3.delivery time 30days
4.free sample ok
Datiled Introduction:
1. Extruded aluminum pipe/evaporator tube
2. Production range
Bare pipe (OD):25mm-165mm
Bare pipe length (L):1-12m
Fin spacing (t):5-30mm
Fin thick (Sn):0.6-3.0mm
Fin height (hf): general no more than the radius of bare pipe(5-30mm)
3. High technology, aluminum fin copper tube condenser/radiators ,heat transfer area is 8 times than the light tube, extruded heat exchanger parts, lower cost, reasonable price, much more advanced than the other heat exchangers finned tube.
4. Our main products is single/bimetallic metal fin tube for heaters with carbon steel/stainless steel/copper/aluminum welded fin, and the type of tubes are welded or seamless.
5. Different kinds of extruded aluminum pipe/evaporator tube can be developed and designed according to your requirements, finning type including High frequency welding / Extruded / L-foot / H type / Embedded etc.
6. Weld able material: carbon steel, corrosion resistant steel, stainless steel, alloy steel and aluminum&copper etc.
7. Applied range of the carbon fin / stainless steel fin tube products: Bolier economizer/ Power plant waste bolier/Petrochemical engineering and varioue types pof heat exchangers.
8. Top quality, competitive price, fast delivery, excellent service
MORE ENERGY-EFFICIENT & ENVIRONMENTAL!
WE ARE TRUSTWORTHY!

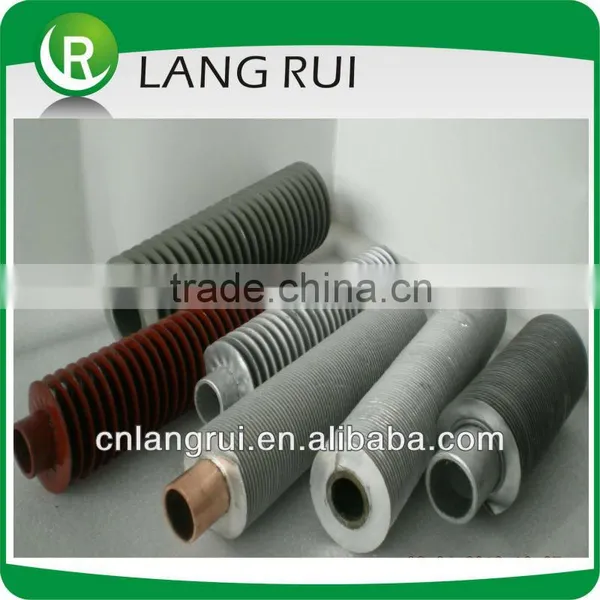

More pictures for your reference:
Parameters Range:
Aluminum fin copper tube condenser/radiators | |||
Name |
symbols |
Unit |
Value |
Steel pipe diameter |
d |
mm |
Min.16 |
Steel pipe wall |
S |
mm |
No limited |
Steel tube length |
L |
m |
1-12 |
Fin thickness |
δ |
mm |
0.35-0.5 |
Fin height |
h |
mm |
Max.16 |
Fins spacing (pitch) |
t |
mm |
2.3-5.0 |
Steel tube material |
Carbon steel, alloy steel, stainless steel |
||
Fin material |
Aluminum |
||
Fin form |
Parallel fin |
||
