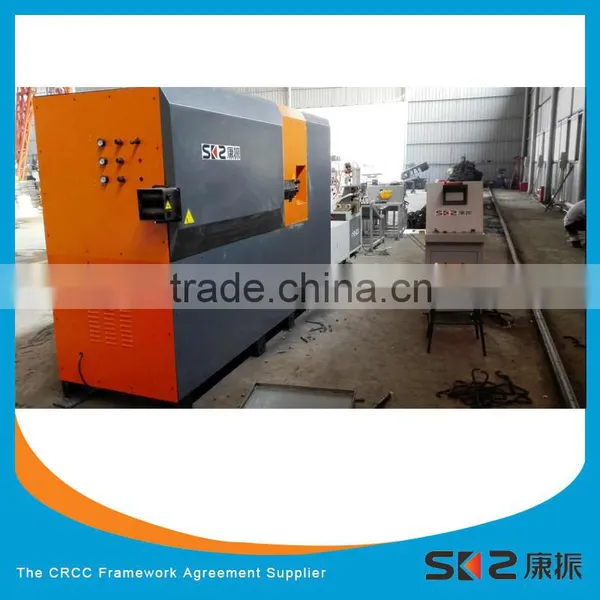

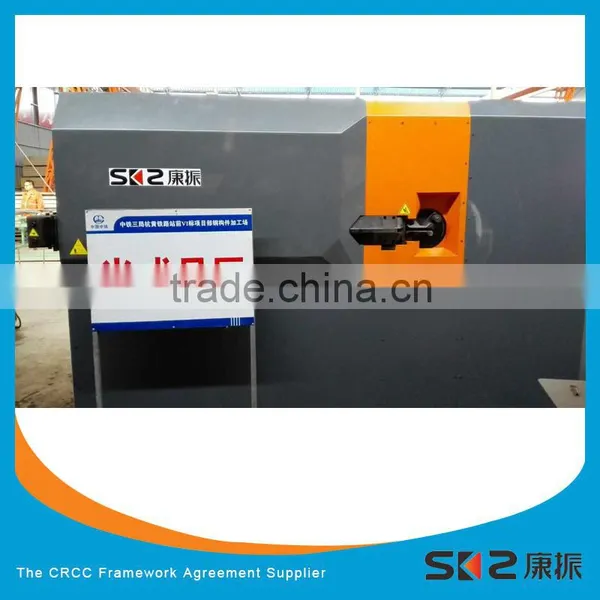

8-Shaped Rebar Molding Machine
(Model:KZHD16B)
Introduction:
8-Shaped Rebar molding Machine is the important part of grid arch.(Grid arch is commonly used in highway, railway tunnel, and the initial support in mine roadway construction ) People from SKZ has been constantly dedicated to the development of the automatic rebar bending machine.We focus on the special shape and requirements of 8-Shaped Rebar molding Machine and make the original complex processing more simple, standard, efficient and energy saving. We truly understand many difficulties of the traditional processing and realize that advanced ideas and elements in modern manufacturing should be introduced into the design.
Description
1,Automatic wire feeding system ( CNC ).
2,High power feeding motor to ensure bending bar accuracy
3,8-Shaped Rebar molding Machine is the important part of grid arch
4,the product does not need human-powered transport,so that make our products a real sense of flow
5,The machine is equiped with automatic feeding device, which reduce labor and improve efficiency.

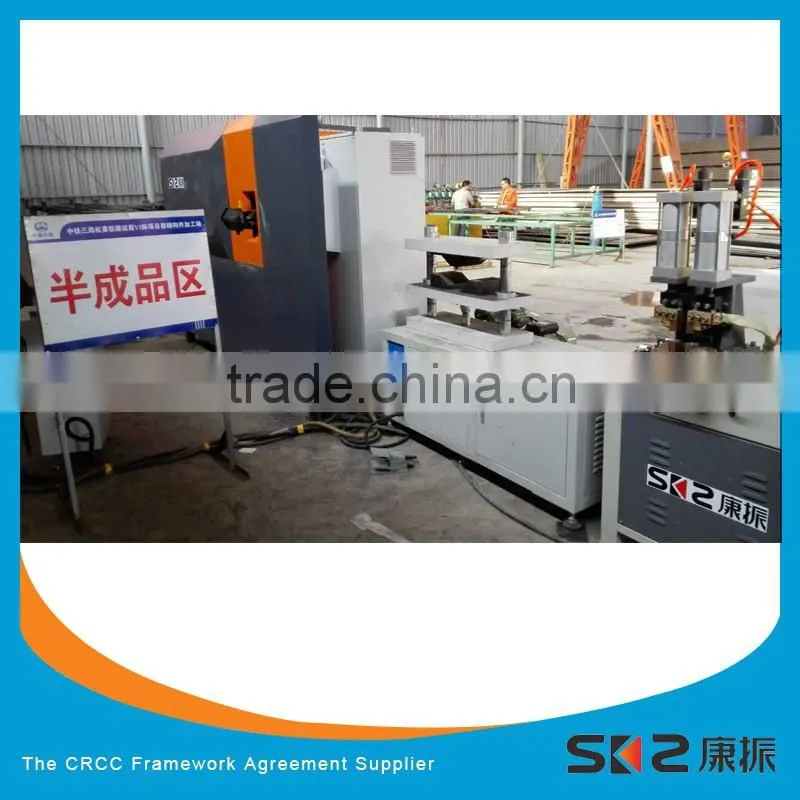

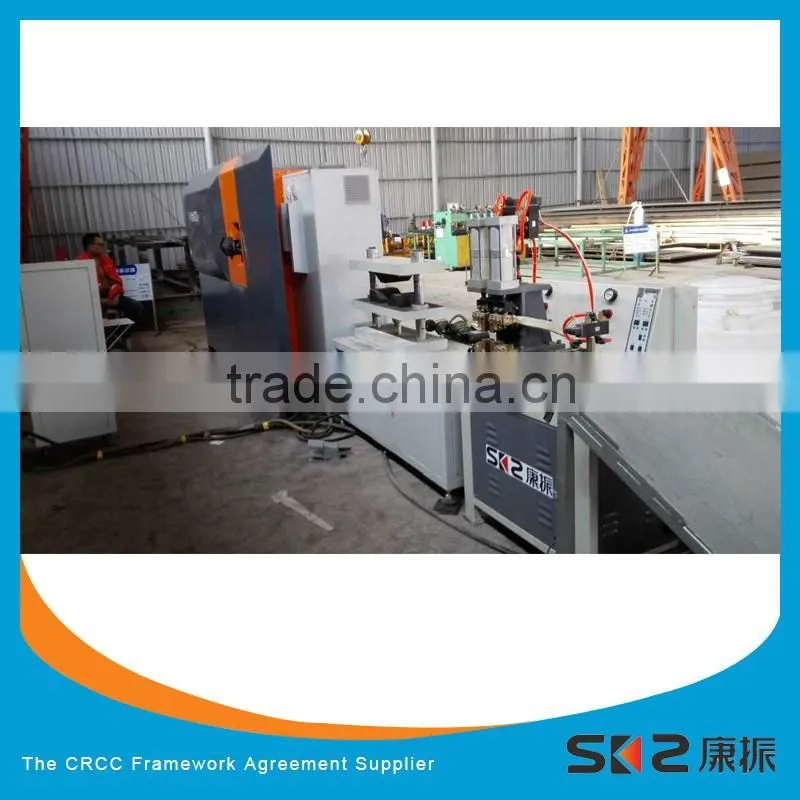

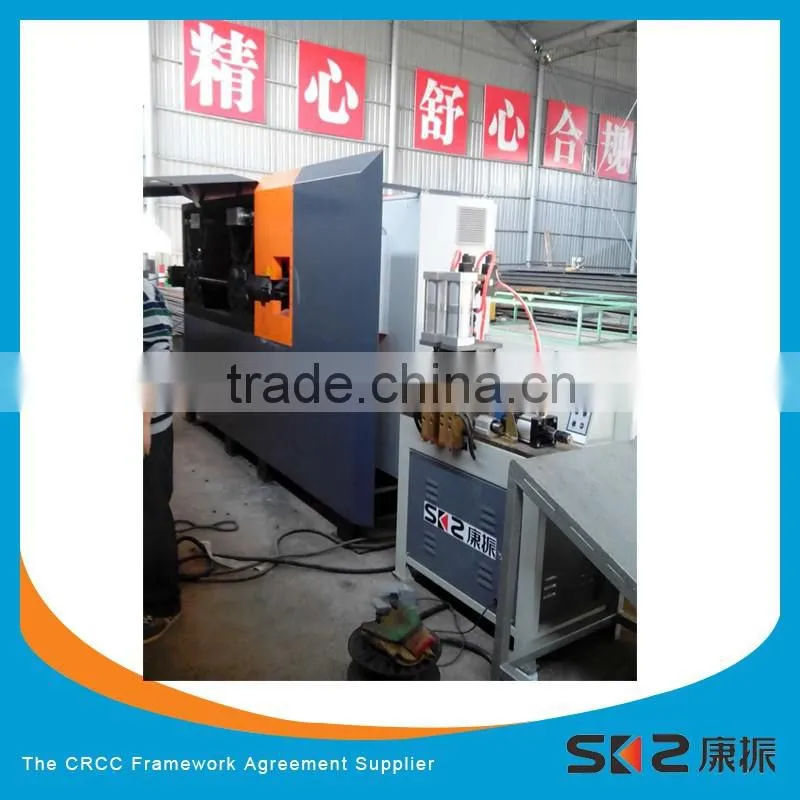

Production Process
|
Process |
Station |
Position |
Machine |
Technical requirements |
Time |
|
|
Bending and forming |
One station |
Operator |
8-shaped bending machine |
It requires to bend the steel into 8-shaped |
15S |
|
|
butt welding |
8-shaped butt welding machine |
Interface weld smoothly without dislocation |
4S |
|
||
|
Pull welding in the middle |
Two stations |
Welder |
Welding machine |
Full Weld and achieve the specified welding length |
15S |
|
|
Forming |
One station |
Operator |
Butterfly Bar hydraulic forming machine |
Achieve specific shape and size |
8S |
|
|
Welding |
Two Stations |
Welder |
Welding machine |
Fully welding both side,the dimensions of the four corners are allowed within the tolerance range. |
30S |
|
|
Instruction:According to the production process of this equipment, a pair of butterfly can be produced in every 30 seconds | ||||||

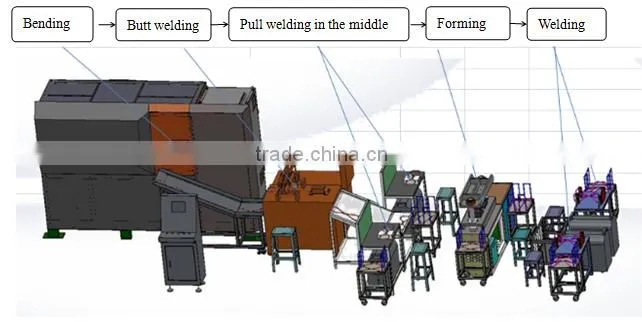

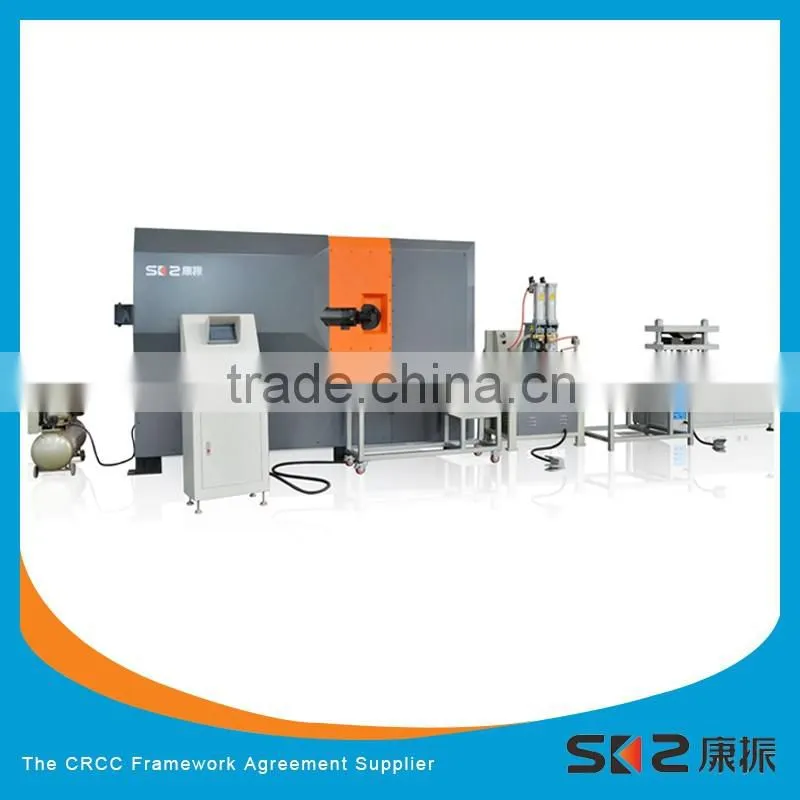

Production Diagram
parameter
|
8-Shaped Rebar molding Machine |
8-Shaped butt welding machine |
Butterfly Bar hydraulic forming machine |
|||
Model |
KZB16 |
Model |
KZDH125 |
Model |
KZDX100 |
|
Bending bar diameter |
Φ14 Φ16 |
Butt welding bar diameter |
Φ14 Φ16 |
Cylinder specifications |
Φ100Χ200mm |
|
Maximum feed speed |
60m/min |
Production efficiency |
300/h |
Nominal force |
100KN |
|
Production efficiency |
200/h |
Rated capacity |
125KVA |
Maximum stroke |
200mm |
|
Rated power |
25KW |
Maximum forging force |
40KN |
Maximum opening size |
280mm |
|
Working environment temperature |
-5℃— 40℃ |
Maximum feeding schedule |
40-50mm |
Cylinder downstream speed |
60mm/s |
Cylinder Pressure |
≤0.6MPa |
Cooling water consumption |
300L/H |
Cylinder upstream speed |
60mm/s |
Dimension(L*W*H) |
3150Χ1200Χ2000mm |
Dimension(L*W*H ) |
1770Χ1655Χ1230mm |
Working surface height |
860mm |
|
|
|
|
Working surface size |
590Χ300mm |
|
|
|
|
Hydraulic oil capacity |
80L |
