Help CenterEx-proof Pressure Controller (618)
Related Products
-
Explosion Proof Pressure Controller (619)US$ 45 - 115MOQ: 1 Box -
R1/2'' Explosion Proof Water Pressure Switch 601US$ 35 - 120MOQ: 25 Pieces
-
China Foshan Explosive Proof Pressure Switch 602US$ 60 - 150MOQ: 10 Pieces
-
Atex Explosion Proof Pressure Control Switch 603US$ 50 - 130MOQ: 10 Pieces
-
Atex SPDT NC+NO High Quality Pressure Switch 606US$ 35 - 120MOQ: 10 Pieces
Specifications
Used in explosive hazardous places, explosion-proof electrical equipment used in suppor.Pressure range: -14.5 to 3600PSI
Atex pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Paremeter:
1, Switching type : SPDT NC+NO, Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 7/16"-20UNF Female .
3, Electrical connection: R1/2"-14BSPT Male , 227 IEC 52 3X0.5mm2,
Lead wire length: 1000mm & 2000mm & 3000mm & 4000mm & 5000mm( Selectable ).
4, Voltage & Resistance load : DC24V 3A; 50Hz AC250V 3(1.5)A.
5, Fluid media: R22, R134a, R407c, R410a, refrigerating medium, etc .
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -40°C~125°C(Selectable),
Medium temperature: -40°C~180°C(Selectable). .

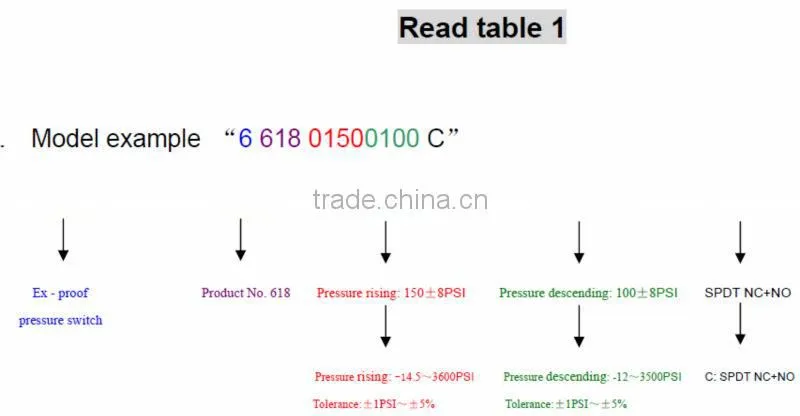

9, Model: ( Selectable, Read table 1).
10,Working pressure: -14.5 to 3600PSI (Selectable, Read table 2).
11, Explosion-proof grade: Exd Ⅱ CT6 , Explosion-proof certificate Certificate No.: CNEx11.2271
Certificate:

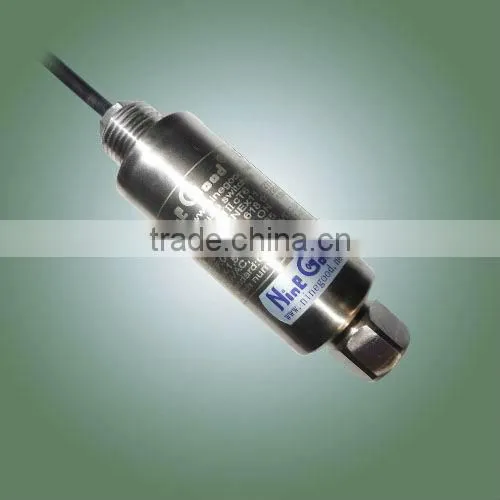

Production Photo:

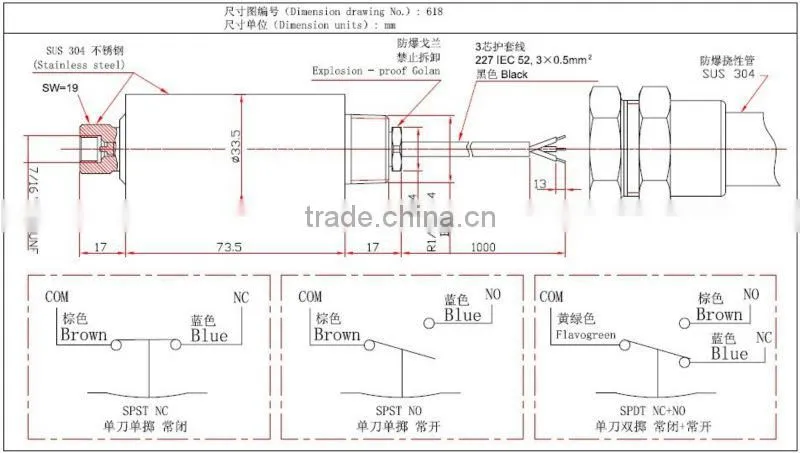

Dimension Drawing:
