Specifications
Suitable for water & gas & air & oil,etc.Pressure range: Vacuum -14.5 to 145PSI

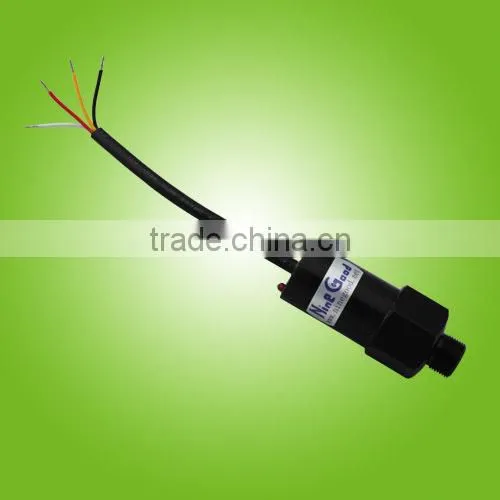

electric power supply pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO or SPDT NC+NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: a variety of user-selectable.
3, Electrical connection: a variety of user-selectable.
4, Voltage: 5VDC to 24VDC, 5VAC to 24VAC; Load : 0.1A to 1A.
5, Fluid media: water & gas & air & oil,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP54.
8, Ambient temperature: -40°C~55°C, Medium temperature: -20°C~85°C(Selectable). .
9, Model: a variety of user-selectable.
10,Working pressure: Vacuum -14.5PSI to +145PSI (Selectable).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:
Production Photo:

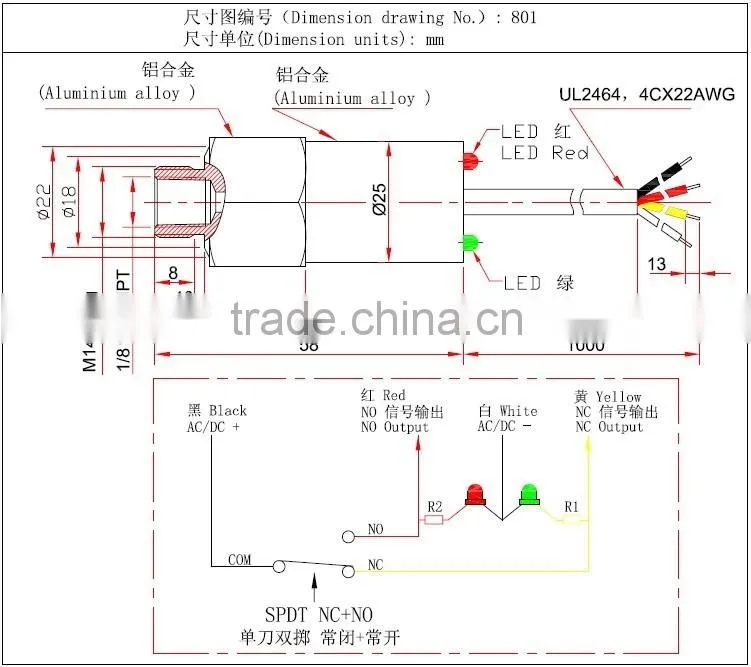

Dimension Drawing:
