Specifications
steam high temperature pressure control sensorSuitable for water & gas & air & oil & steam,etc.
Pressure range: 0 to 800PSI
steam high temperature pressure control sensor
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO or SPDT NC+NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: R1/4"-19BSPT.
3, Electrical connection: 227IEC 52 2X0.5mm2.
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: water & gas & air & oil & steam,etc .
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00 or IP54 or IP65(Selectable).
8, Ambient temperature: -40°C~125°C(Selectable),
Medium temperature: -40°C~180°C(Selectable). .
9, Model: a variety of user-selectable.
10,Working pressure: 0 to 800PSI (Selectable).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:

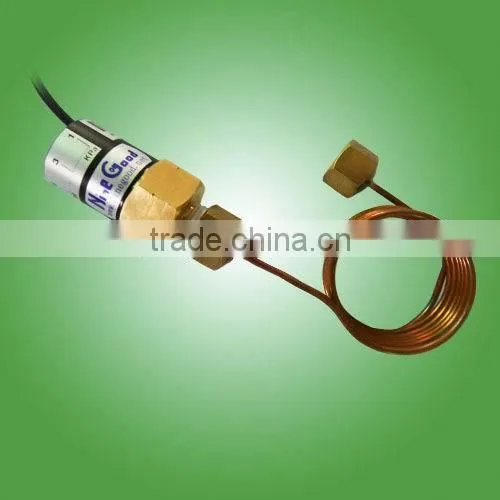

Production Photo:

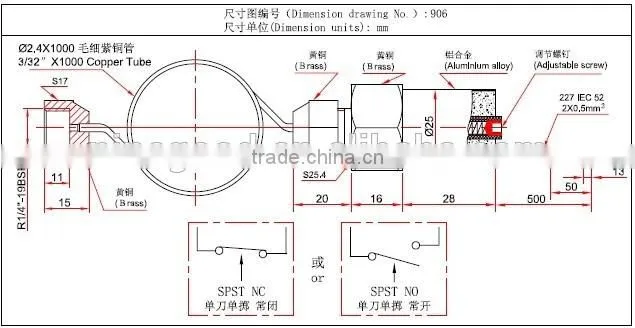

Dimension Drawing:
