Help CenterOil Pressure Switch for vw
Related Products
Specifications
oil pressure switch for vwSuitable for Air - Conditioning
easy installation
stable performance
Pressure value: preset.
oil pressure switch for vw
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: Φ6X72 or Φ6X100 (Selectable), Welding of copper tube( Please see "Water-cooled welding process diagram" ).
3, Electrical connection: 6.35X0.8 Male terminals (Brass & Silver plating). .
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC; Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: R22, R134a, R407c, R410a, etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00 (No PVC jacket); IP54 ( Equipped with PVC jacket).
8, Ambient temperature: -20°C~55°C, Medium temperature: -30°C~80°C.

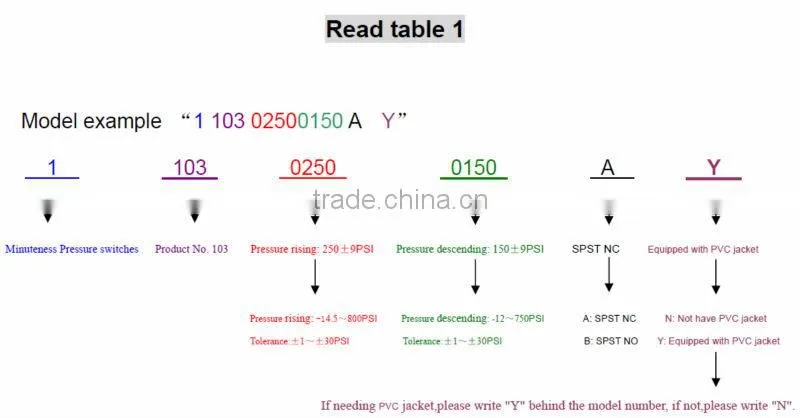

9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:

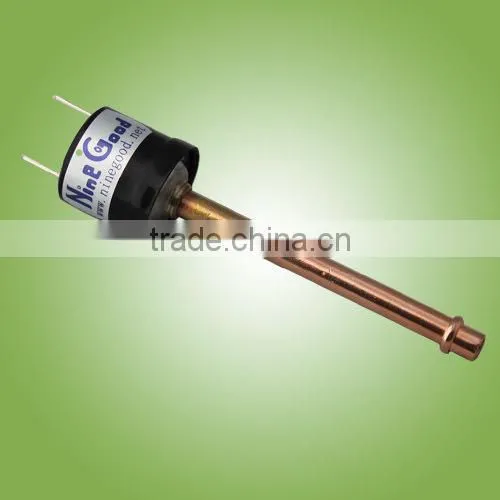

Production Photo:

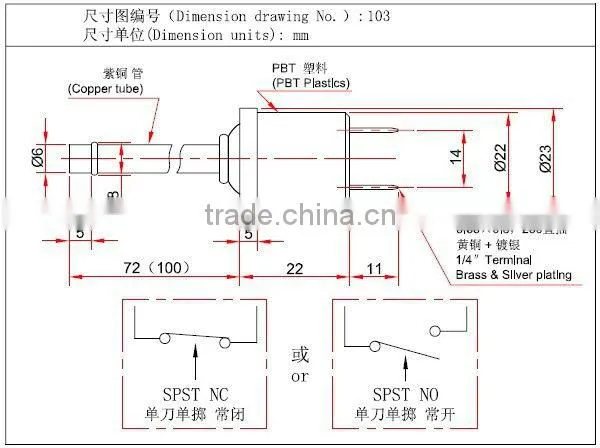

Dimension Drawing:
