Help CenterAir Pump Pressure Switch
Related Products
Specifications
refrigeration compressor pressure switchSuitable for Oil pressure & Water pressure & Vacuum
No.112
easy installation
IP65
air pump pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter.
1, Switching type : SPST NC or SPST NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: G1/8"-28BSP Thread (Male ).
3, Electrical connection: UL 1015 18AWG, Lead wire.
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: Air,Water, Vacuum,Oil,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -20°C~55°C, Medium temperature: 0°C~80°C.

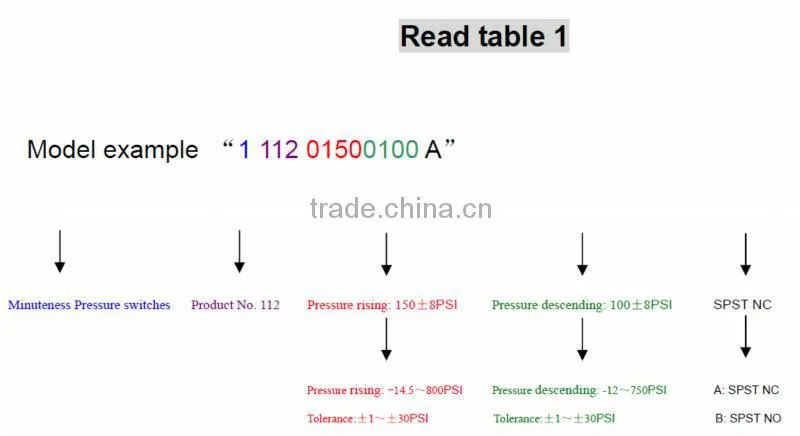

9, Model: (Read table 1).
10, Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:

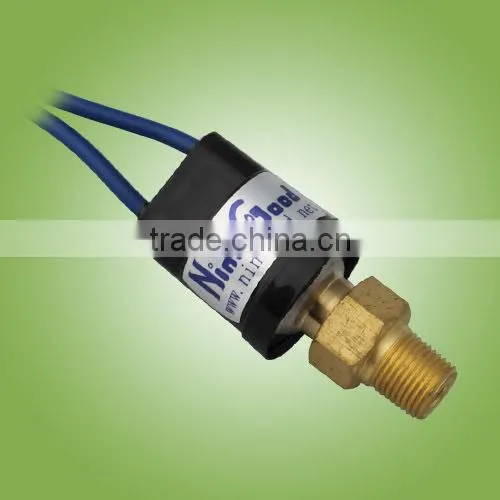

Production Photo:

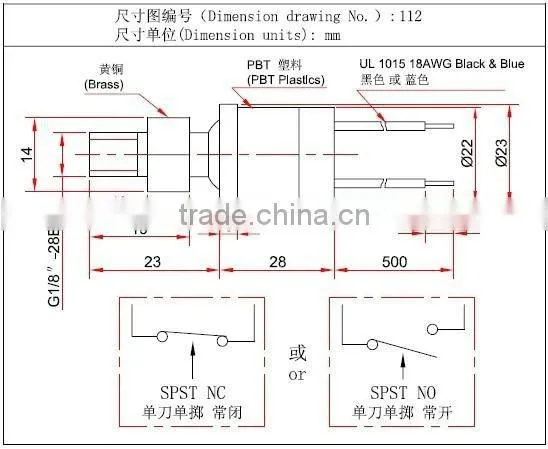

Dimension Drawing:
