Specifications
coal powder briquette moulding machine1. coal, charcoal, clay and other powder
2. final briquette size:20-60mm with shapes
coal powder briquette moulding machine
1.Principle of Work

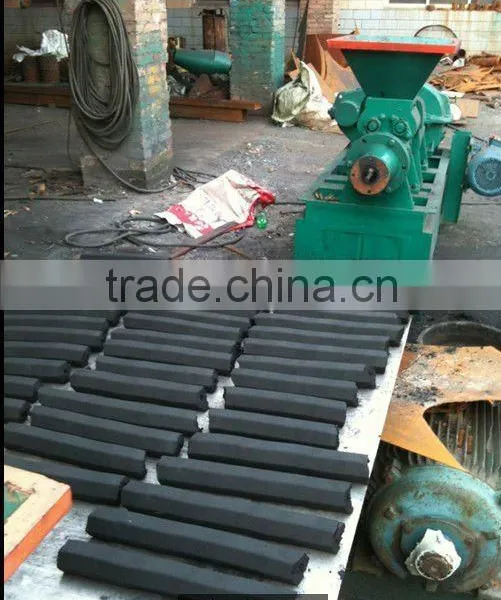

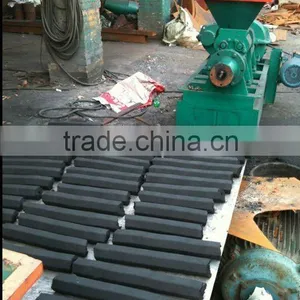

Coal powder briquette moulding machine can make the powder of coal to different coal shapes.
The working principle is: The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.
Request: adding particle size(<3mm) Adding water content(12—14%)
The shape of the sticks can be designed depends on customers’ requirements. Varied shapes of mould: hexagonal, cylindrical, square etc.
2.The Main Technical Data and Outsourcing Standard Parts
Type Item |
MBJ140 |
MBJ180 |
MBJ210 |
MBJ300 |
MBJ400 |
|
Capacity |
500-1000kg/h |
1000-1500kg/h |
1500-2500kg/h |
2000-3000kg/h |
3000kg/h |
|
Dimension of final products |
Diameter 20-40mm |
diameter 20-60mm |
diameter 20-80mm |
diameter 20-80mm |
diameter 20-80mm |
|
Spindle Speed |
46-60 rev/min |
39-60 rev/min |
35-60 rev/min |
35-60 rev/min |
35-60 rev/min |
|
Motor |
Y160m-4 11kw |
Y180m-4 18.5kw |
Y200L-4 30kw |
Y225s-4 37kw |
Y315m-4 160kw |
|
Y160L-4 15kw |
Y180L-4 22kw |
Y225s-4 37kw |
Y225m-4 45kw |
|||
Speed reducer |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650-750 |
ZQ850 |
|
Bearing |
7511,211,210,1305 |
7614,314,313,1206 |
7619,319,318,1206 |
32320,320,319,1207 |
32322,322,321 |
|
Note |
This is the minimum speed of spindle. It can be adjusted on the basis of the current intensity, load and output. |
|||||
