KY100 Mining Blasting Drilling Equipment for Sale (80-105mm Diameter,25m Depth)
US$ 1,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Rock Blasting Hole Wagon DrillUS$ 1,000 - 10,000MOQ: 1 Unit -
Hot Sale Track Mounted Rock DrillUS$ 1,000 - 10,000MOQ: 1 Unit
-
New Pneumatic and Hydraulic Type Crawler DrillUS$ 16,000 - 30,000MOQ: 1 Set
-
New Hydraulic Truck Mounted Drilling Rig for SaleUS$ 20,000 - 50,000MOQ: 1 Set
-
2014 China Hot Selling Rock Drilling Rig ManufacturersUS$ 10,000 - 60,000MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Place of Origin
Henan, China
Brand Name
ZOONYEE
Model Number
KY100
Usage
Ore
Dimension(L*W*H)
4100x2030 x2020mm
Weight
3200kg
Certification
ISO
Warranty
more than 12 months
After-sales Service Provided
Engineers available to service machinery overseas

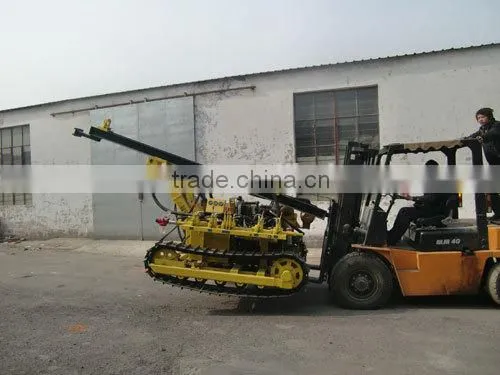

KY100 drill rig
Crawler Down Hole Drilling Rig Advantages:
1.Powerful and reliable engine
2. Powerful feeding and rotating system
3. New drilling boom
4. High power drive motors
5. Safe and stable travelling system
Crawler Down Hole Drilling Rig Specifications:
| Model | KY140 | KY130 | KY125 | KY120 | KY100 |
| Rock hardness | F=6-20 | F=6-20 | F=6-20 | F=6-20 | F=6-20 |
| Hole diameter(mm) | 105-140 | 105-140 | 80-115 | 105-120 | 80-105 |
| Drill depth(m) | 25 | 25 | 25 | 25 | 20 |
| Pressure (Mpa) | 1.0-2.4 | 1.0-2.4 | 0.7-1.4 | 1.0-1.4 | 0.5-0.7 |
| Air consumption (M3/min) | ≥15 | ≥15 | ≥13 | ≥13 | ≥12 |
| Rotating speed (Km/h) | 0-63 | 0-70 | 0-65 | 0-65 | 0-65 |
| Lifting capacity (KN) | 20 | 18 | 17 | 17 | 15 |
| Drill rod specification(mm) | 76x3000 /89x3000 | 76x3000 /89x3000 | 64x3000 /76x3000 | 64x3000 /76x3000 | 60x2000 |
| Gradeability | 30° | 30° | 30° | 30° | 30° |
| Ground clearance(mm) | 320 | 320 | 290 | 254 | 254 |
| Walking speed (km/h) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Drill arm rising angles (°) | -15~+50 | -15~+50 | -25~+50 | -35~+60 | -35~+60 |
| Drill arm swing angle (°) | ±45 | ±45 | ±45 | - | - |
| Carriage swing angle(°) | ±50 | ±50 | -45~+100 | -11.5~+36.5 | -11.5~36.5 |
| Carriage pitch angle (°) | 180 | 180 | -50~+135 | -118.5~+23.5 | -118.5~+23.5 |
| Carriage Compensation(mm) | 1200 | 1200 | 900 | 900 | 900 |
| Overall Dimension (L*W*H)(mm) | 5850x2250 x2020 | 5600x2340 x2550 | 4000x2270 x2050 | 5100x2030 x2020 | 4100x2030 x2020 |
| Total Weight (Kg) | 5500 | 5500 | 3300 | 3300 | 3200 |
| Note: | Pneumatic -hydraulic | Pneumatic -hydraulic | Pneumatic -hydraulic | Pneumatic -hydraulic | Pneumatic -hydraulic |
Mobile Screw Air Compressor
| Model | Work pressure (Mpa) | Capacity (m3/min) | Diesel engine (hp) | Weight (kg) | Dimension (mm) |
| LGCY-12/10 | 1.0 | 12 | YuChai YC6108ZG (110KW) or Cummins 4BTA3.9-C125 (93kw) | 3500 | 3600*1900*2200 |
| LGCY-13/13 | 1.3 | 13 | Cummins 6BTA5.9-C180 (132kw) | 3500 | 3600*1900*2200 |
| LGCY-15/13 | 1.5 | 15 | YuChai YC6A-240-20 or steyr WD415.23 | 3500 | 3600*1900*2200 |
| LGCY-18/17 | 1.7 | 17 | Cummins 6CTA8.3-C260 | 3500 | 3600*1900*2200 |
