Specifications
Drilling rig1.Widely used in surface drilling
2.High performance features, higher penetration rate and low fuel consumption

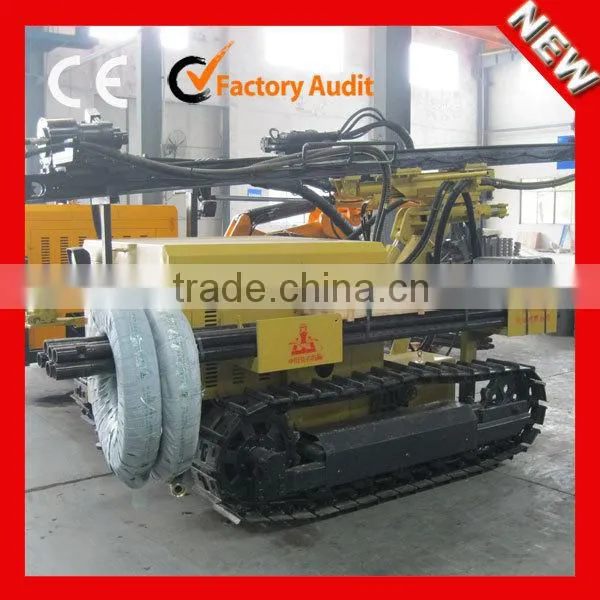

New Hydraulic Truck Mounted Drilling Rig for Sale
KG910B truck mounted drilling rig for sale is specially designed drilling equipments, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate drilling rig hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling etc.

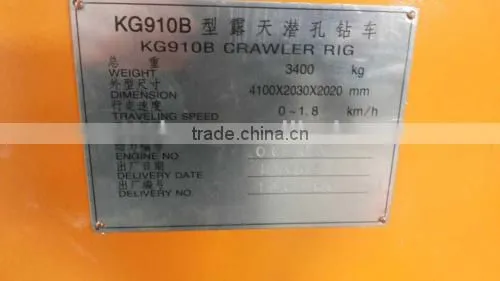

Model: KG-910B Truck Mounted Drilling Rig for Sale
Hole diameter: 80~105(mm)
Drill depth: 25(m)
Work pressure: 0.7~1.4(Mpa)
Air consumption: 9-13 (mP3P/min)
Rotating speed: 105(r/min)
Lifting capacity: 15(KN)
Drill rod specification: 60 x 2000(mm)
HTGradeability: 30°
Ground clearance: 254(mm)
Walking speed: 0-2.0 Km/h
Overall dimensions: 4100x2030x2020(mm)
Total weight: 3100 kg
Corresponding Screw Air Compressor
Model: LGCY-10/10
Air consumption: 10(mP3P/min)
Work pressure: 1.0(Mpa)
Corresponding HTdiesel engineTH: YuChai YC2108(33KW2200r/min)
New hydraulic truck mounted drill rig for sale
