Specifications
Wagon Drilling Rig1.Widely used in surface drilling
2.High performance,higher penetration rate and low fuel consumption
2014 china Portable Wagon Drilling Rig Price

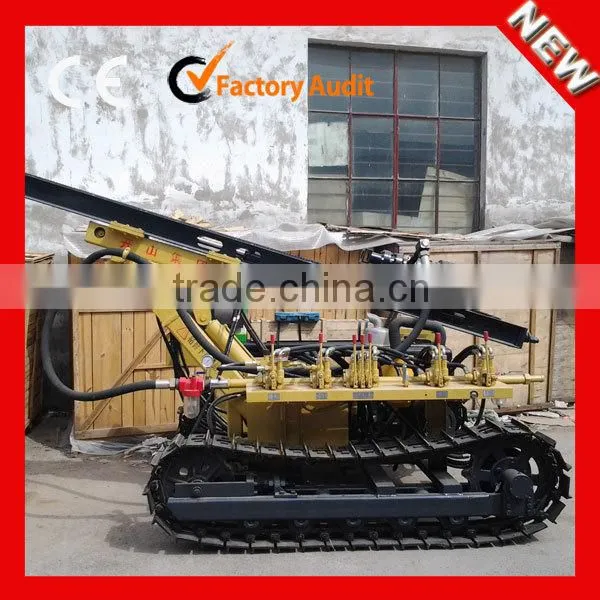

KY100J wagon drilling rig is specially designed drilling equipments, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate drilling rig hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling etc.
Model: KY-100J Wagon Drilling Rig
Hole diameter: 80~105(mm)
Drill depth: 20(m)
Work pressure: 0.7~1.4(Mpa)
Air consumption: ≥10 (mP3P/min)
Rotating speed: 0~65 (rmp)
Lifting capacity: 15(KN)
Drill rod specification: 76 x 2000(mm)
HT
Gradeability: 30°
Ground clearance: 254(mm)
Walking speed: 0-2.0 Km/h
Drill arm rising angles: 35~60°
Overall dimensions: 4100x2030x2020(mm)
Total weight: 3100 kg
Corresponding Screw Air Compressor
Model: LGCY-10/10,12/7
Air consumption: 10/12(mP3P/min)
Work pressure: 1.0/0.7(Mpa)
Corresponding HTdiesel engineTH: YuChai YC6108ZG (110KW) or Cummins 4BTA3.9-C125 (93kw)
New portable wagon drilling rig, mine drilling rig for sale with low price and high quality.
