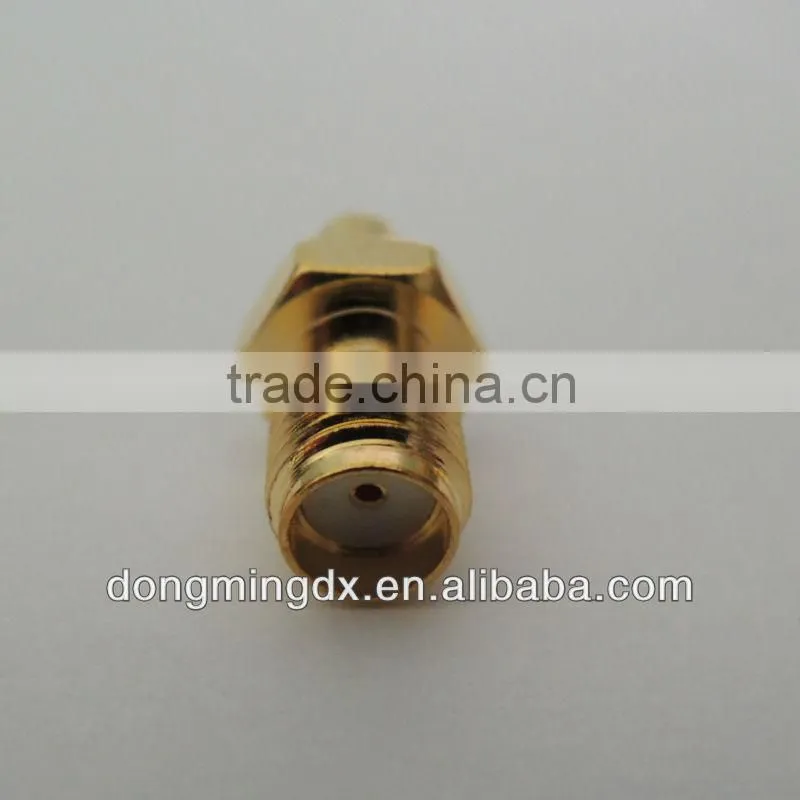

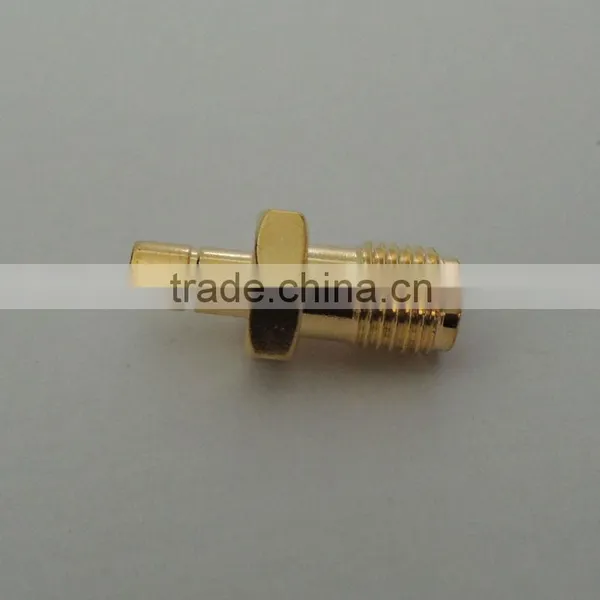

Adapter SMA Female to SMB Male Coaxial Connecter
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DM, DM
Model Number:
adapter SMA female to SMB male coaxial connecter
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF Adapter SMA Female to SMA Female Straight01NegotiableMOQ: 100 Pieces -
BNC Female to TNC Male Coaxial Connector AdapterNegotiableMOQ: 100 Pieces
-
RF Adapter SMA Male to SMA Female Right Angle01NegotiableMOQ: 100 Pieces
-
SMA Female to IPX Female RF Coaxial ConnectorNegotiableMOQ: 100 Pieces
-
Rihgt Angle MCX Male to MCX Female RF AdapterNegotiableMOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
DM, DM
Model Number
adapter SMA female to SMB male coaxial connecter
Type
Other, Adapter, adapter SMA female to SMB male coaxial connecter
Application
Other, RF, RF
Gender
Other, female/male, female/male
adapter SMA female to SMB male coaxial connecter
Series SMA are very popular thread coupling miniature coaxial connectors.Which have the excellent performances of high reliability,high mechanical strength,high durability,and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipments and electronic communication instruments
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω/70Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~4GHz(50Ω) | Voltage rating | 250V(r ms) | |||
| 0~2GHz(75Ω) | ||||||
| Contact resistance | Center conductor |
≤6mΩ |
VSWR | ≤1.30 | ||
| Outer conductor |
≤1mΩ |
Durability |
≥500 Cycles |
|||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Beryllium copper , gold plated | |||||
| Crimp ferrules | Copper alloy , gold or nickel plated | |||||
