QTZ63C(5013)
Description:

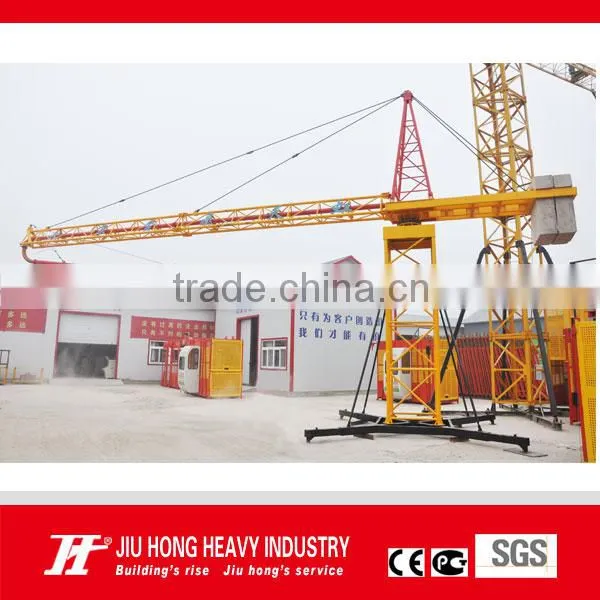

The QTZ series of tower cranes, ranging from QTZ31.5 to QTZ500 (Max Load=3T-25T), is among CHINA Jiuhong’s leading products. With their working radiuses varying from 30m to 80m, QTZ tower cranes are famous for their large operating ranges, varied working methods and wide uses. This series of tower cranes has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys. The QTZ series tower cranes have been awarded many honors like “CHINA FAMOUS BRAND”. “QUALITY FIRST” is not only a slogan; it is deeply rooted in the hearts of Jiuhong people. We also provide excellent after-sale service which will get rid of all your worries in the purchase of our products.
Applications:

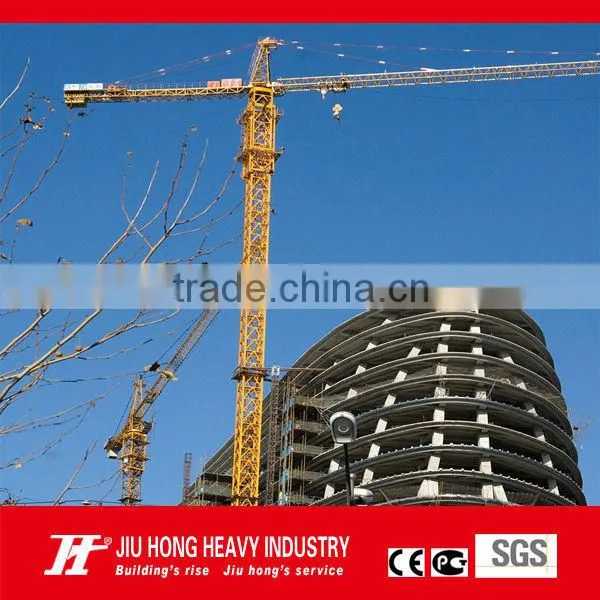

This series of tower cranes has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
Specifications:
Model |
QTZ63C(5013) |
Jib Length (M) |
50 |
Free Height Under Hook (M) |
40 |
Total Height Under Hook (M) |
70 |
Max. Load (T) |
6 |
Tip Load (T) |
1.3 |
Wall-attachment Device (set) |
2 |
Main Material (mm) |
Standard Mast Section: ∠160*14 Reinforcing Mast Section: ∠160*16 |
Mast Section Dimension (m) |
1.615×1.615 ×2.5 |
Hoisting Speed (a=2)m/min |
80/40/10 |
Min. Stable Falling Speed (m/min) |
5 |
Slewing Speed (r/min) |
0-0.62 |
Radius-changing Speed (m/min) |
40/20 |
Jacking-up Speed (m/min) |
0.6 |
Total Motor Power (kw) |
32.8 |
Power Supply |
380V/50HZ |
Weight of Independent Structure (T) |
33.28 |
Counterweight (T) |
11.48 |
Base Form |
#shaped Beam without Ballast |
Containers Needed for Shipment (70m) |
6*40’HC + 1*20’GP |
Competitive Advantage:
The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism and a frequency-converting slewing mechanism.

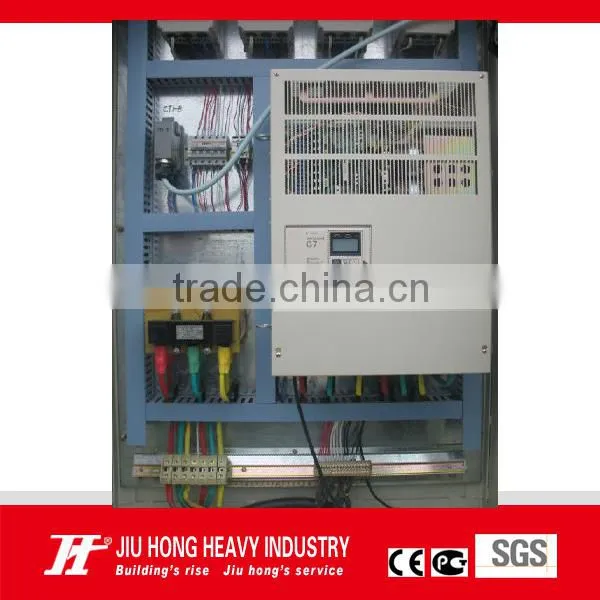

The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day, which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control system and the work efficiency of the tower crane.
The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic Controller) unit can diagnose the cause of breakdowns.
The use of world-famous electric components such as OMRON, YASKAWA, Schneider (TE) and MEAN WELL greatly reduces the failure rate of the electric control system and improves the work efficiency of the users.
Besides, there are also electric safety devices like anemoscopes and obstacle lights and mechanical safety devices to prevent the breaking of trolley axles and wireropes.

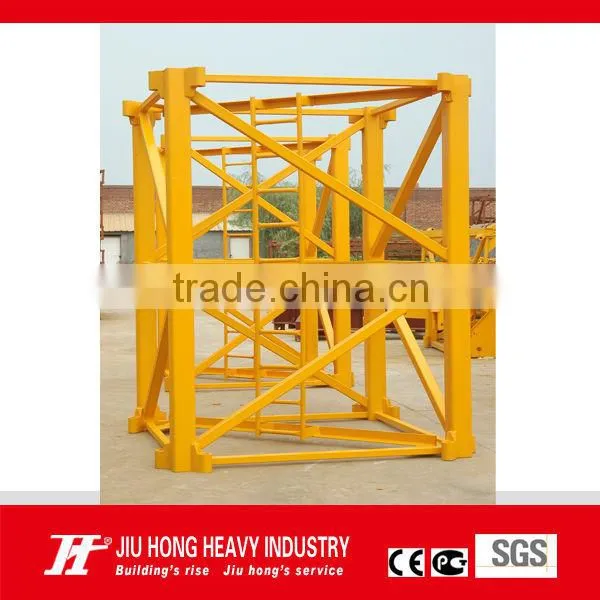

Mast section
