Technical parameters:
o Size: 1/4 to 11/4 inches
o Voltage: 3-6vDC,AC/DC9-24v,220V
o Material: stainless steel , brass
o Open/close time:6-10sec
o Working pressure: 1.0 MPa
o Pressure loss: below 0.1MPa
o Torque output: Q-1.5NM, N-2.5NM
o Control mode:CR01/CR02/CR03/CR04/CR05
o End:BSP&NPT
o Medium temperature: 0-90°C
o Actuator rotation: 90 degree
o Rotation direction: double acting
o Low working current: <80mA
o Working medium:water,air,gas.
o Product life: 100,000 times
o Special function:position indicator;manual function
o Enclosure:IP65
o Main export areas:Europe,Asia,North America, South America,Mid East,Oceania,Africa

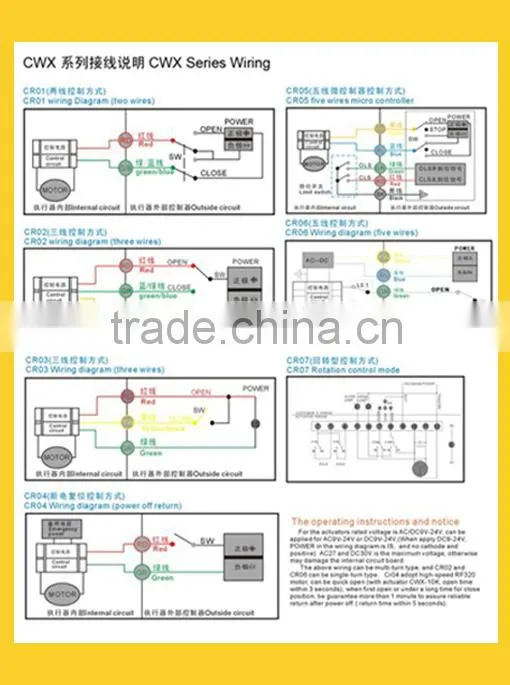

You can choose the wiring you prefer from following:
Features:
1. Smart shape,perform reliably,brass gear,PPO parts,large output torque,long product life for 100,000 times.
2. Position indicator,easy manual function.
3. Electrical limit and machinery limit design,accurate position,avoid gear with switch.
4. Multi-angle assembling,easy to install.
5. Float ball structure,no leakage,especially suitable for heavy pollution conditions.
6.Good substitution for solenoid or pneumatic valve.
7. High protection class,can be worked in moist conditions. IP65.
Note:
1. Be sure the valve is power off supply before manual function.
2. Pulling up the handwheel,turn the handwheel arriving slightly(pay attention to the position indicator to avoid valve damage)
3. The electric function can only be normal worked after pressing down the handwheel when no need of manual function.
Suitable for :
1. IC card meters,heat energy meters,air-warm valve.
2. 2.HVAC and fire works.
3. Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4. Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5. Replacing solenoid valve, particularly when solenoid cannot work reliably,the circumstance pneumatic valve can not work.
6. Multiple voltage and control mode, applicable to a variety of occasion.
Other illustration:
· Material of main parts:
· Actuator: heat-resistant ABS
· Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
· Body: brass or stainless steel
· Ball: brass or stainless steel
· Stem: brass or stainless steel
