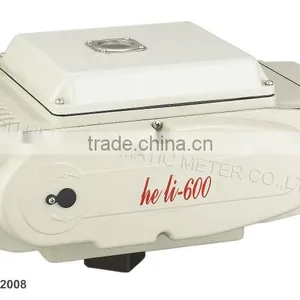

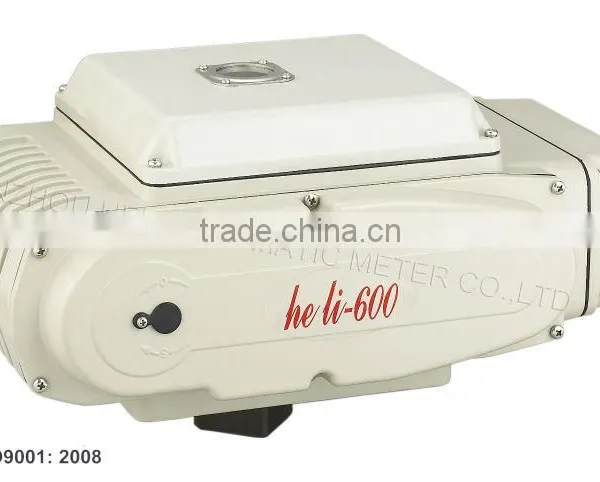

Standard Type Big Torque Valve Electric Actuator( HL-400)
US$ 1 - 1,600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Power:
Other, electromotion
Material:
Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
380VAC Rotary Electric Actuator With CE( Direct Installation HL-10)US$ 1 - 460MOQ: 1 Piece -
230VAC Electric Actuators-Modulating Control( Direct Installation HL-20)US$ 1 - 540MOQ: 1 Piece
-
Actuated Valve With CE Certification ( Direct Installation HL-100)US$ 1 - 820MOQ: 1 Piece
-
2000N.m Valve Electric Actuator With 380VAC ( HL-200)US$ 1 - 910MOQ: 1 Piece
-
Electric ActuatorUS$ 1 - 910MOQ: 1 Piece
Standard or Nonstandard
Standard
Power
Other, electromotion
Material
Alloy
Temperature of Media
Normal Temperature
Media
Water
Place of Origin
Zhejiang, China
Model Number
HL-600
Brand Name
HELI
valve actuator
*0~90 °rotary
*Guarantee:1 year
*Excellent sealing
*Long time life
*12VDC,24VDC,24VAC,110VAC,220~240VAC,220~240VDC,380~420VAC,50/60HZ
*WCB,SS304,SS316
*ON/OFF control ,passive contact control,position signal control,opens degree signal,Modulating control
*T/T, L/C, Western Union
*high quality,low noise
*body material: aluminium die-casting components
*space heater is optional
*0~90 °rotary
*Guarantee:1 year
*Excellent sealing
*Long time life
*12VDC,24VDC,24VAC,110VAC,220~240VAC,220~240VDC,380~420VAC,50/60HZ
*WCB,SS304,SS316
*ON/OFF control ,passive contact control,position signal control,opens degree signal,Modulating control
*T/T, L/C, Western Union
*high quality,low noise
*body material: aluminium die-casting components
*space heater is optional
Model |
HL-600 |
|||
Voltage |
AC110V |
AC220V
|
AC380V |
|
Motor Power |
200W |
|||
Rated current |
4.1A |
2.1A |
0.9A |
|
Output Torque |
6000N.m |
|||
Action Time |
150S |
|||
Rotary angle |
0~90° |
|||
Weight |
31kg |
|||
Voltage-with standing valve |
1500VAC/1minute |
|||
Insulated resistance |
100 MΩ/500VDC |
|||
Protection Class |
IP67 |
|||
Surrounding temperature |
-25°C~60°C(The other temperatures can be customized) |
|||
Installation angle |
Any angle |
|||
Case material |
Aluminium-casting components |
|||
Optional function |
Overload protection function, Heater |
|||
